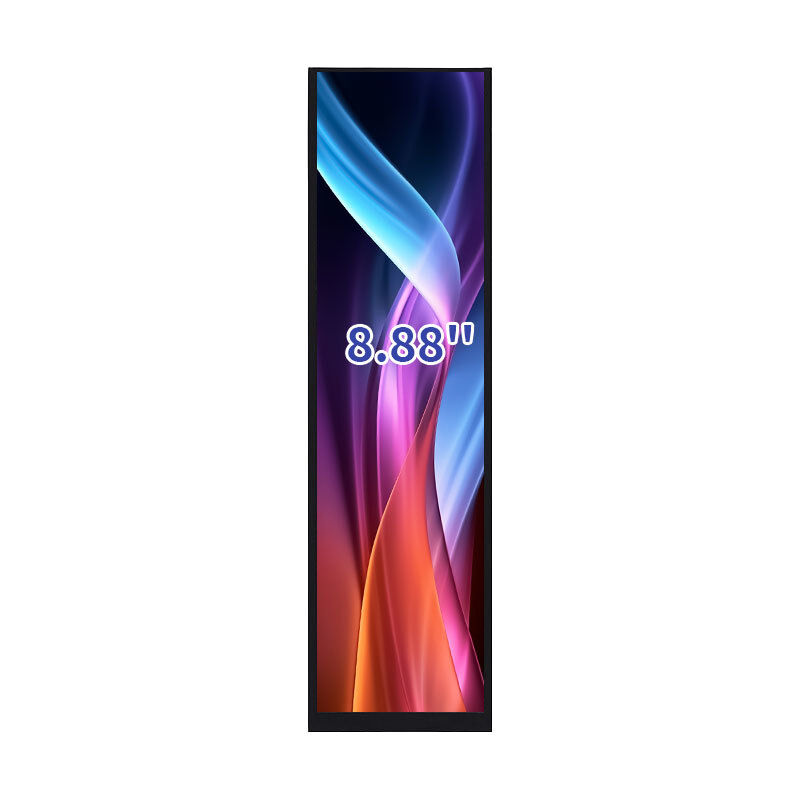

8.8 Inch LCD Bar Screen 480*1920 Resolution Optional Touch MIPI Interface Display
  • name
  • name
  • name
  • name

8.8 Inch LCD Bar Screen 480*1920 Resolution Optional Touch MIPI Interface Display

MOQ: 500
Price: 16.18-21.88/pc
Standard Packaging: 320pcs/box
Delivery Period: 14-30days
Payment Method: ,T/T,D/P,D/A,Western Union
Supply Capacity: 300k/month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
RoHS/CE/CB
Model Number
YVO088PW-C01
Document
YVO088PW-C01.pdf
Highlight:

8.8 Inch LCD Bar Screen

,

LCD Bar Screen 480*1920

,

Optional Touch MIPI Interface Display

Product Description
8.8 inch Bar Type LCD display 480*1920 resolution optional touch  MIPI
480*1920 Resolution OTA7290N Driver IC MIPI  Interface600 CD/m² Luminance -20℃ ~ +70℃ Operating Temp Wide Viewing Angle (ALL)
Product Features

The YVO088HW - C01 is an 8.88 - inch high - performance LCD display module. It has a resolution of 480(RGB)×1920 pixels, ensuring clear visual output. With a normally black display mode and RGB vertical stripe pixel arrangement, it offers excellent color reproduction. Driven by the OTA7290N driver IC and using an MIPI 4 - lane interface, it enables fast and stable data transmission, suitable for various high - resolution display applications. It adopts a white LED backlight with 600 CD/m² luminance for good visibility, and the IPS viewing direction provides a wide viewing angle. Operating within -20℃ ~ +70℃ and storable at -30℃ ~ +80℃, it adapts well to different environments.
Product 8.8 inch LCD Module Number YVO088PW-C01
Resolution 480*1920 Display Mode Normally Black
Brightness 600 nit Outline Dimensions
64.1(H)*231.2(V)*4.75(D)mm
Viewing Direction All (IPS) Active Area
54.72x218.88mm
Interface MIPI  Driver IC
OTA7290N
Backlight
White LED
 Operating Temp. -20 ~ +70 °C
Connector Type
0.5 PITCH 40pin
 Storage Temp. -30 ~ +80 °C
Highlight                      8.8-inch LCD, 480*1920 resolution, OTA7290N driver, MIPI interface
Technical Drawing

The YVO088PW-C01 LCD module ensures reliable electrical performance. In terms of power supply, the analog supply voltage (VCI) ranges from -0.30V to +3.3V, and the digital supply voltage (IOVCC) is from -0.30V to +2.5V. It can operate within a temperature range of -20.0°C to 70.0°C and be stored in a temperature range of -30.0°C to 80.0°C, with operating and storage humidity between 10% and 90% RH.
For the backlight unit, the typical forward current (IF) is 180mA, and the typical forward current voltage (VF) is 15V, ensuring sufficient brightness. It's important to note that if the LED is driven under high - current, high ambient temperature, and humidity conditions, the LED's lifespan will be reduced. The operating life, which is when the brightness drops to 50% of the initial brightness, is estimated data, with a typical operating life of 20000 hours.

8.8 Inch LCD Bar Screen 480*1920 Resolution Optional Touch MIPI Interface Display 0

PIN Definition
PIN Symbol Description
1 GND Ground
2 NC Not connect
3 LEDA LED ANODE
4 LEDA LED ANODE
5 NC Not connect
6 LEDK LED CATHODE
7 LEDK LED CATHODE
8 NC Not connect
9 GND Ground
10 NC Not connect
11 AVDD Power supply for analog circuit
12 NC Not connect
13 VGH Power supply for analog circuit
14 NC Not connect
15 VGL Power supply for analog circuit
16 NC Not connect
17 GND Ground
18 VCOM Power supply for common voltage
19 GND Ground
20 GND Ground
21 RESET Global reset
22 VDD Power supply for digital circuits
23 STBYB Standby mode
24 TP_SYNC Sync signal for touch panel
25 GND Ground
26 D0P MIPI Data Input Lane0 positive-end
27 D0N MIPI Data Input Lane0 negative-end
28 GND Ground
29 D1P MIPI Data Input Lane1 positive-end
30 D1N MIPI Data Input Lane1 negative-end
31 GND Ground
32 CLKP MIPI Clock Input positive-end
33
CLKN
MIPI Clock Input negtive-end
34
GND
Ground
35
D2P
MIPI Data Input Lane2 positive-end
36
D2N
MIPI Data Input Lane2 negtive-end
37
GND
 Ground
38
D3P
MIPI Data Input Lane3 positive-end
39
D3N
MIPI Data Input Lane3 negtive-end
40 GND Ground

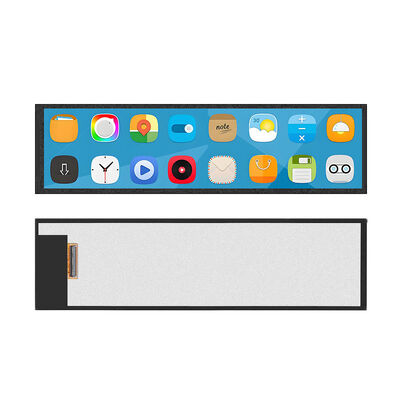

Product Picture

The YVO088PW-C01 LCD module exhibits remarkable environmental resilience and reliability, having successfully passed a series of rigorous tests. These tests include 96 hours of high - temperature (80°C) storage, 96 hours of high - temperature (70°C) operation, 96 hours of low - temperature (-30°C) storage, 96 hours of low - temperature (-20°C) operation (with no dew condensation), 96 hours of operation in a high - temperature and high - humidity environment (60°C/90%RH, with no dew condensation), 10 cycles of thermal shock (-20±2°C ↔ 70±2°C, with each cycle consisting of 30 minutes at low temperature, 5 minutes of transition, and 30 minutes at high temperature), and ESD tests with a voltage of ±2KV, resistance of 330Ω, capacitance of 150pF, using air discharge for 10 times. After these tests, the module shows no functional or appearance abnormalities. When inspected after 4 hours of storage at room temperature, the sample is free from defects such as air bubbles in the LCD, seal leaks, non - display, missing segments, glass cracks, and a current IDD that is twice higher than the initial value

8.8 Inch LCD Bar Screen 480*1920 Resolution Optional Touch MIPI Interface Display 1

Customization Options


The  YVO088PW-C01 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Brightness: Adjustable from 200–1000 nits for indoor or outdoor use.

Touch Options: With or without capacitive touch, customized driver IC available.

Surface Treatment: AF (Anti-Fingerprint), AG (Anti-Glare), or tempered glass for durability
