8 Inch HDMI Display 1280*800 Resolution 5 Point Capacitive TouchScreen

Products

8 Inch HDMI Display 1280*800 Resolution 5 Point Capacitive TouchScreen

MOQ:	100
Price:	$45-50/pieces
Standard Packaging:	164.90 102.0014.25mm/510g
Delivery Period:	30-45days
Payment Method:	T/T
Supply Capacity:	50K/Month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

China

Brand Name

Certification

CE/ROHS

Model Number

YQX28-8

Type:

HDMI Display

Display Size:

8 Inch

Supplier Type:

Factory

Video Input:

Highlight:

8 Inch HDMI Display 1280*800

8 Inch HDMI Touch Screen

5 Point Capacitive TouchScreen

Product Description

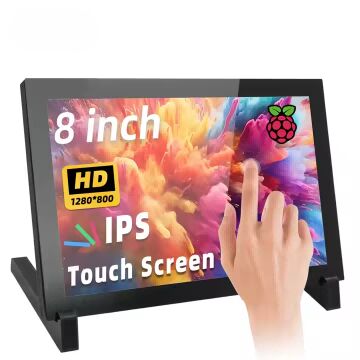

YQX28-8 8 Inch IPS HDMI LCD Display with 1280*800 Resolution 5 Point Capacitive Touch Screen

Product Features

8.0 inch IPS high-definition display screen

Wide viewing angle True color reproduction Excellent picture quality
1280×800 resolution

HD vision Exceptionally detailed display
New touch panel

Tempered glass cover 6H hardness rating for durability and scratch resistance

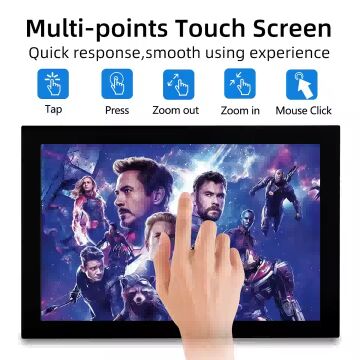

High sensitivity capacitive touch screen

Precise touch response Supports up to 5 simultaneous touch points
HDMI interface

HD input capability Functions as HDMI display

Multi-device compatibility

Works with Raspberry Pi, Banana Pi, and BeagleBone development boards

Compatible with PS4, XBOX360, Nintendo Switch and other game consoles

Connects to TV boxes and digital cameras (display only)

Multi-system support

Raspbian, Kali Linux, Ubuntu, Kodi, Win10 IOT (touch driver-free)

Windows 7/8/10/11 (touch driver-free)
CE and ROHS certified

Technical Specifications

Size	8.0 inch	Screen Type	IPS Screen
SKU	MPI8008	Resolution	1280*800 dots
Backlight Adjustment	Key Switch Adjustment	Touch	5 point capacitive
Power	MicroUSB (5V)	Module overall power	3.79W(100% brightness)
Dimensions	19713212mm	Video Input	HDMI
Audio Output	3.5mm Audio Interface	Packaging size	23416462
Weight	610 g (including packaging)

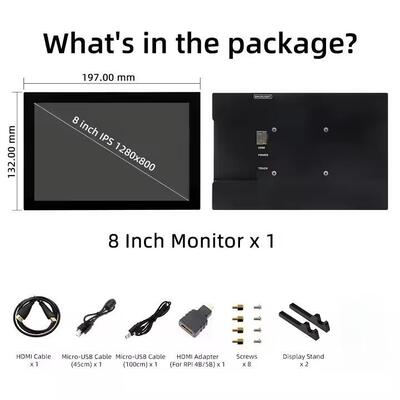

Product dimension

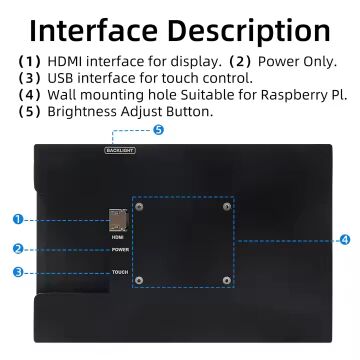

Interface Diagram

Working with Raspberry Pi

Step 1. Download the Official image

1) Download Raspbian Official Image

Download URL: https://www.raspberrypi.org/downloads/raspbian/

Username: pi Password: raspberry

2) Download Ubuntu Mate Official Image

Download URL: https://ubuntu-mate.org/download/

The user name and password can be set by yourself after startup

3) Download Kail Official Image

Download URL: https://www.offensive-security.com/kali-linux-arm-images/

Username: kali (The old version is root) Password: kali(The old version is toor)

4) Download Retropie Official ImageDownload URL: https://retropie.org.uk/download/

Username: pi Password: raspberry

Step 2. Brun Official Image

1) Download and install tool software(If they are already installed,this step can be ignored)

SD card format software SDCard Formatter download URL :

https://www.sdcard.org/downloads/formatter_4/

Image burning software win32diskimager download URL:

https://sourceforge.net/projects/win32diskimager/

2) Format SD card

Insert the SD card into the card reader -> Insert the card reader into the computer -> Open the SDFormatter software -> Select SD card ->Select quick format (generally select quick format, other options can beselected according to your own needs) -> Click the Format button ->Select "Yes" -> Click OK after formatting.

3) Brun Image

Open the win32diskimager software -> Select the image file to be burned (xxx.img ) -> Select SD card -> Click the "write" button ->Select "Yes" -> Wait for the burning to complete (the whole process lasts about 10 minutes)

Step 3. Modify the “config.txt” configuration file

Open the “config.txt” file in the root directory of SD card on the computer,

Add the following at the end of the file, save and exit.

max_usb_current=1

hdmi_force_hotplug=1

config_hdmi_boost=7

hdmi_group=2

hdmi_mode=87

hdmi_drive=1

display_rotate=0

hdmi_cvt 1280 800 60 6 0 0 0

Step 4. Insert SD card

After the above steps are completed, pop up the SD card on the computer

and insert it into the SD card slot on the back of the raspberry pie.

Step 5. Running system

Connect the HDMI interface and touch interface of the display screen to

raspberry pie, connect the power supply of raspberry pie,

and start the machine to display and touch normally..

Work as HDMI touch monitor

This product can be used as the HDMI touch monitor of Windows computer,only need to connect HDMI interface and TOUCH interface, can normally display and support up to five points touch.
