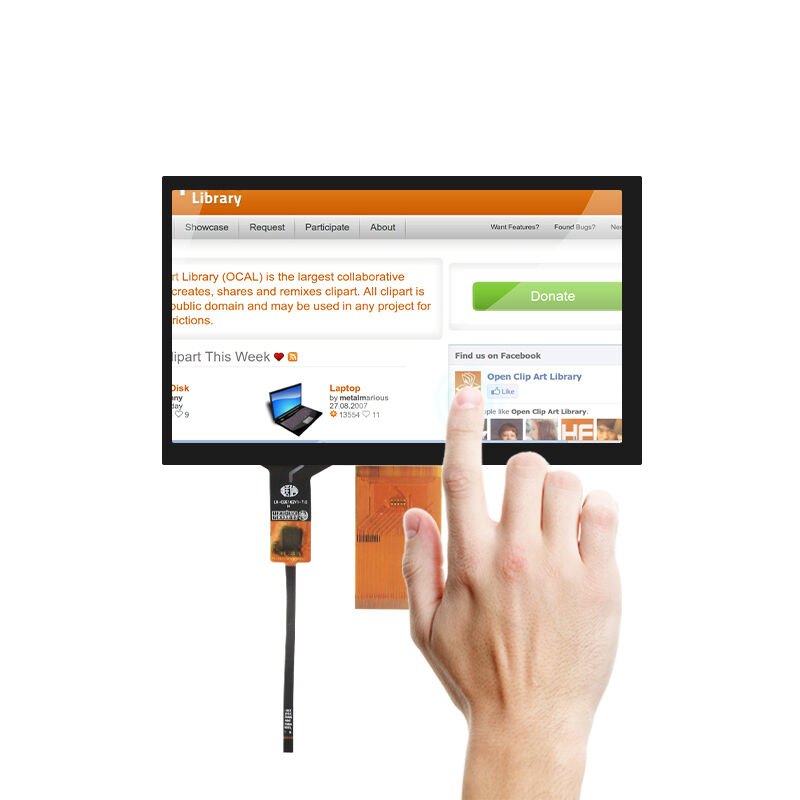

7.0 Inch IPS LCD Display 1024*600 Resolution LVDS TFT Display
  • name
  • name

7.0 Inch IPS LCD Display 1024*600 Resolution LVDS TFT Display

MOQ: 500
Price: 11.09-15.13/pc
Standard Packaging: 30pcs/box
Delivery Period: 14-30days
Payment Method: ,T/T,D/P,D/A,Western Union
Supply Capacity: 5000/month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
RoHS/CE/CB
Model Number
YVT070WSVL-H01
Document
YVT070WSVL-H01.pdf
Highlight:

7.0 Inch IPS LCD Display

,

IPS LCD Display 1024*600

,

1024*600 Resolution LVDS TFT Display

Product Description
7.0 inch IPS LCD Display with 1024*600 Resolution and LVDS Interface
Product Overview

The YVT070WSVL-H01 is a high-performance 7.0-inch TN TFT-LCD module featuring 1024*600 resolution, LVDS interface, and excellent color performance with support for 16.7M colors. Designed for industrial and commercial applications, this display module delivers clear, stable visual output in various environments.

Key Features
  • 7.0-inch TN TFT-LCD with 1024*600 resolution
  • LVDS interface for fast, stable data transmission
  • 280 CD/m² typical luminance with 600:1 contrast ratio
  • All-direction viewing angle
  • Operating temperature: -10℃ to +50℃
  • RoHS and halogen-free compliant
  • Anti-glare surface treatment
  • White LED backlight (27 pcs)
Technical Specifications
Product 7.0 inch TN TFT-LCD Module
Module Number YVT070WSVL-H01
Resolution 1024*600 pixels
Display Mode Normally White
Brightness 280 CD/m² (Typ.)
Outline Dimensions 165.00(W)*100.00(H)*5.27(D)mm
Active Area 153.60(H)*90.00(V)mm
Interface LVDS Interface
Operating Temperature -10 ~ +50 °C
Storage Temperature -20 ~ +60 °C
Backlight White LED (27 pcs)
Technical Drawing
7.0 Inch IPS LCD Display 1024*600 Resolution LVDS TFT Display 0
PIN Definition
PIN Symbol Description
1 VCOM Common voltage
2 VDD Digital power
3 VDD Digital power
4 NC Not connect
5 RESET Global reset pin (Input, I). Active low to enter reset state; suggest connecting with RC reset circuit (R=10KΩ, C=0.1μF) for stability, normally pull high
6 STBYB Standby mode pin (Input, I). STBYB="1": normal operation; STBYB="0": timing control and source driver turn off, all outputs high-Z; normally pull high
7 GND Ground
8 RXIN0- Negative LVDS differential data inputs
9 RXIN0+ Positive LVDS differential data inputs
10 GND Ground
11 RXIN1- Negative LVDS differential data inputs
12 RXIN1+ Positive LVDS differential data inputs
13 GND Ground
14 RXIN2- Negative LVDS differential data inputs
15 RXIN2+ Positive LVDS differential data inputs
16 GND Ground
17 RXCLKIN- Negative LVDS differential clock inputs
18 RXCLKIN+ Positive LVDS differential clock inputs
19 GND Ground
20 RXIN3- Negative LVDS differential data inputs
21 RXIN3+ Positive LVDS differential data inputs
22 GND Ground
23 NC Not connect
24 NC Not connect
25 GND Ground
26 NC Not connect
27 DIMO Backlight CABC controller signal output
28 SELB 6bit/8bit mode select (Input, I). H: 6bit; L: 8bit
29 AVDD Power for Analog Circuit
30 GND Ground
31 LED- LED Cathode
32 LED- LED Cathode
33 L/R Horizontal inversion (Input, I). L/R="0": right to left scan direction; L/R="1": left to right scan direction
34 U/D Vertical inversion (Input, I). U/D="0": top to bottom scan direction; U/D="1": bottom to top scan direction
35 VGL Negative power for TFT
36 GND Ground
37 GND Ground
38 VGH Positive power for TFT
39 LED+ LED Anode
40 LED+ LED Anode
Application Scenarios

The YVT070WSVL-H01 LCD module is ideal for various industrial and commercial applications:

  • Industrial control terminals (PLC operation panels, equipment status monitors)
  • Smart home control panels (HVAC, lighting controllers)
  • Portable medical equipment displays
  • Commercial terminals (POS systems, self-service kiosks)
Customization Options

The YVT070WSVL-H01 offers multiple customization options to meet specific application requirements:

  • FPC Design: Flexible layout and connector type adjustments
  • Cover Glass: Custom size, thickness, shape, and surface printing
  • Brightness: Adjustable from 200-1000 nits for various environments
  • Touch Options: Capacitive touch available with customized driver IC
