3.4 Inch Round TFT LCD TouchScreen 800*800 Resolution MIPI Interface Display
  • name
  • name
  • name
  • name

3.4 Inch Round TFT LCD TouchScreen 800*800 Resolution MIPI Interface Display

MOQ: 500
Price: 15.99-18.99/pc
Standard Packaging: 320pcs/box
Delivery Period: 14-30days
Payment Method: ,T/T,D/P,D/A,Western Union
Supply Capacity: 300k/month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
RoHS/CE/CB
Model Number
YVT021WV-C01
Document
YVT034HD-C01.pdf
Highlight:

Round TFT LCD TouchScreen

,

TFT LCD TouchScreen 800*800

,

3.4 Inch TFT Touch Display

Product Description
3.4 inch round LCD display 800*800 resolution touch Screen MIPI Interface
800×800 Resolution JD9365DA-H3 Driver IC MIPI Interface Optional Capacitive Touch (CST836U) 680 nits Brightness Wide Viewing Angle (IPS) -20~70°C Operating Temp
Product Features


The YVT034HD - C01 is a 3.4 - inch round LCD display module that excels in both industrial and consumer application scenarios. It boasts an 800×800 resolution, delivering sharp and detailed visuals. Driven by the JD9365DA - H3 driver IC and supporting the MIPI interface, it ensures smooth and efficient data transmission.
With an outline dimension of 109.2×113.47×3.83 mm and an active area of 87.6×87.6 mm, this module is perfectly sized for integration into circular smart devices, offering a seamless fit. Optional touch functionality is available, allowing users to choose between versions with or without touch as per their needs, adding great flexibility.
Moreover, the IPS panel technology guarantees full viewing angles, so the display quality remains consistent whether viewed from any direction. It also produces vivid image quality with rich colors and high contrast, making it ideal for applications where visual excellence is crucial, such as smart home devices, industrial control panels, and consumer electronics with circular display requirements
Product 3.4 inch Round LCD Module Number YVT034HD-C01
Resolution 800×800 Touch With/Without touch (Optional)
Brightness 680 nits Outline Dimensions
109.2*113.47*3.83mm
Viewing Direction All (IPS) Active Area
87.6*87.6 mm
Interface MIPI Connector Type 0.5 Pitch 39 Pin
Driver IC JD9365DA-H3 Operating Temp. -20 ~ +70 °C
Touch IC CST836U Storage Temp. -30 ~ +80 °C
Highlight 3.4-inch round LCD, 800×800 resolution, JD9365DA-H3 driver, MIPI interface
Technical Drawing


The LCD module features a digital supply voltage (IOVCC) typically at 1.8V (range 1.65V - 1.95V) and an analog supply voltage (VCI) typically at 2.8V (range 2.5V - 3.3V), ensuring stable power for reliable operation. Its backlight unit, with a typical forward current of 40mA and forward voltage of 24.8V, delivers ample brightness efficiently, while the typical backlight power consumption is 992mW. This setup balances brightness and energy efficiency, and the module’s electrical design facilitates smooth integration into diverse device circuits.

3.4 Inch Round TFT LCD TouchScreen 800*800 Resolution MIPI Interface Display 0

PIN Definition
Pin No. Symbol Description
1
GND
Ground
2
LEDA
LED ANODE
3
LEDA
LED ANODE
4
LEDK
LED CATHODE
5
LEDK
LED CATHODE
6
GND
Ground
7
VSN(-5V)
VSN Power Supply -5V
8
VSN(-5V)
VSN Power Supply -5V
9
GND
Ground
10
VSP(+5V)
SPI Clock signal
11
VSP(+5V)
SPI Chip select signal
12
GND
Ground
13
IOVCC-1.8V
Power supply 1.8Vl
14
IOVCC-1.8V
Power supply 1.8Vl
15
GND
Ground
16
RESET
Reset Signal
17
GND
 Ground
18 TE
Tearing effect output
19
GND
Ground
20
MIPI_D3P
DSI-D3+ data signals
21
NC
Not connect
22
MIPI_D3N
DSI-D3- data signals
23 GND Ground
24
MIPI_D2P
DSI-D2+ data signals
25
NC
Not connect
26
MIPI_D2N
DSI-D2- data signals
27
GND
Ground
28
CLK_P
DSI_Clock+
29
NC
Not connect
30
CLK_N
DSI_Clock-
31
GND
Ground
32
MIPI_D1P
DSI-D1+ data signals
33
NC
Not connect
34
MIPI_D1N
DSI-D1- data signals
35
GND
Ground
36
MIPI_D0P
DSI-D0+ data signals
37
NC
Not connect
38
MIPI_D0N
DSI-D0- data signals
39
GND
Ground

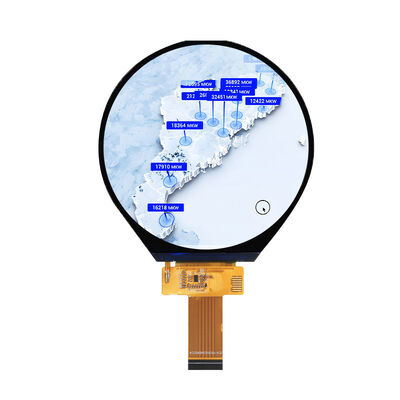

Product Picture


The YVT034HD - C01 boasts robust environmental adaptability, with an operating temperature range of -20°C to 70°C and a storage temperature range of -30°C to 80°C, making it suitable for various working scenarios. It successfully passes stringent reliability tests: 96 hours of high - temperature (80°C) storage, 96 hours of low - temperature (-30°C) storage, 96 hours of high - temperature (70°C) operation, 96 hours of low - temperature (-20°C) operation, 96 hours of operation under 60°C/90% humidity (without condensation), 10 thermal shock cycles between -20°C and 70°C, and ESD tests with a 4kV voltage (150pF air discharge, 10 times). After these tests, when stored at room temperature for 4 hours, the product should be free from defects such as air bubbles in the LCD, seal leaks, non - display segments, missing segments, glass cracks, and a current IDD that is twice the initial value.

3.4 Inch Round TFT LCD TouchScreen 800*800 Resolution MIPI Interface Display 1

Customization Options


The YVT034HD-C01 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Brightness: Adjustable from 200–1000 nits for indoor or outdoor use.

Touch Options: With or without capacitive touch, customized driver IC available.

Surface Treatment: AF (Anti-Fingerprint), AG (Anti-Glare), or tempered glass for durability.
