3.4 Inch Round TFT LCD TouchScreen with 800×800 Resolution MIPI Interface and IPS Panel
  • name
  • name
  • name
  • name

3.4 Inch Round TFT LCD TouchScreen with 800×800 Resolution MIPI Interface and IPS Panel

MOQ: 500
Price: 15.99-18.99/pc
Standard Packaging: 320pcs/box
Delivery Period: 14-30days
Payment Method: ,T/T,D/P,D/A,Western Union
Supply Capacity: 300k/month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
RoHS/CE/CB
Model Number
YVT034HD-C01
Document
YVT034HD-C01.pdf
Highlight:

Round TFT LCD TouchScreen

,

TFT LCD TouchScreen 800*800

,

3.4 Inch TFT Touch Display

Product Description
3.4 Inch Round TFT LCD TouchScreen 800×800 Resolution MIPI Interface Display
Product Overview

The YVT034HD-C01 is a 3.4-inch round LCD display module featuring 800×800 resolution with MIPI interface. This high-performance display delivers sharp, detailed visuals ideal for both industrial and consumer applications.

Key Features: 3.4-inch round LCD, 800×800 resolution, JD9365DA-H3 driver, MIPI interface, optional capacitive touch
Technical Specifications
Product 3.4 inch Round LCD Module Number YVT034HD-C01
Resolution 800×800 Touch With/Without touch (Optional)
Brightness 680 nits Outline Dimensions 109.2×113.47×3.83mm
Viewing Direction All (IPS) Active Area 87.6×87.6 mm
Interface MIPI Connector Type 0.5 Pitch 39 Pin
Driver IC JD9365DA-H3 Operating Temp. -20 ~ +70 °C
Touch IC CST836U Storage Temp. -30 ~ +80 °C
Electrical Characteristics

Digital supply voltage (IOVCC): 1.8V typical (1.65V - 1.95V range)
Analog supply voltage (VCI): 2.8V typical (2.5V - 3.3V range)
Backlight: 40mA typical forward current, 24.8V forward voltage
Backlight power consumption: 992mW typical

Technical Drawing
3.4 Inch Round TFT LCD TouchScreen with 800×800 Resolution MIPI Interface and IPS Panel 0
PIN Definition
Pin No. Symbol Description
1 GND Ground
2 LEDA LED ANODE
3 LEDA LED ANODE
4 LEDK LED CATHODE
5 LEDK LED CATHODE
6 GND Ground
7 VSN(-5V) VSN Power Supply -5V
8 VSN(-5V) VSN Power Supply -5V
9 GND Ground
10 VSP(+5V) SPI Clock signal
11 VSP(+5V) SPI Chip select signal
12 GND Ground
13 IOVCC-1.8V Power supply 1.8V
14 IOVCC-1.8V Power supply 1.8V
15 GND Ground
16 RESET Reset Signal
17 GND Ground
18 TE Tearing effect output
19 GND Ground
20 MIPI_D3P DSI-D3+ data signals
21 NC Not connect
22 MIPI_D3N DSI-D3- data signals
23 GND Ground
24 MIPI_D2P DSI-D2+ data signals
25 NC Not connect
26 MIPI_D2N DSI-D2- data signals
27 GND Ground
28 CLK_P DSI_Clock+
29 NC Not connect
30 CLK_N DSI_Clock-
31 GND Ground
32 MIPI_D1P DSI-D1+ data signals
33 NC Not connect
34 MIPI_D1N DSI-D1- data signals
35 GND Ground
36 MIPI_D0P DSI-D0+ data signals
37 NC Not connect
38 MIPI_D0N DSI-D0- data signals
39 GND Ground

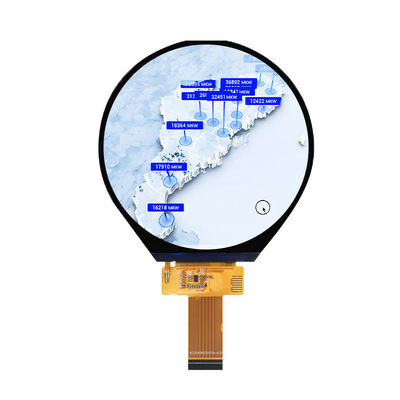

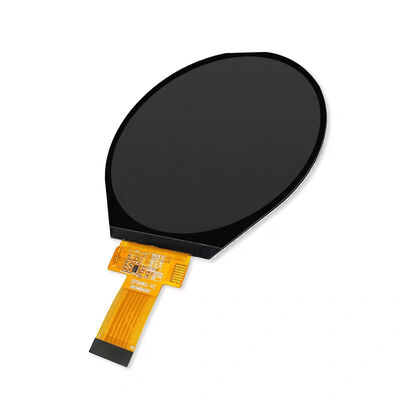

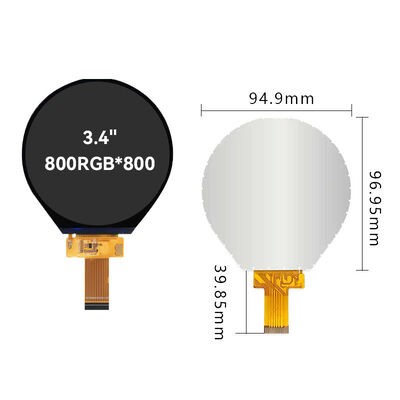

Product Image
3.4 Inch Round TFT LCD TouchScreen with 800×800 Resolution MIPI Interface and IPS Panel 1
Environmental Reliability

The module successfully passes stringent reliability tests including: 96 hours high-temperature storage (80°C), 96 hours low-temperature storage (-30°C), 96 hours high-temperature operation (70°C), 96 hours low-temperature operation (-20°C), 96 hours operation under 60°C/90% humidity, 10 thermal shock cycles (-20°C to 70°C), and ESD tests with 4kV voltage.

Customization Options
  • FPC Design: Flexible layout and connector type adjustments to fit system requirements
  • Cover Glass: Customizable size, thickness, shape, and surface printing (logo, pattern)
  • Brightness: Adjustable from 200-1000 nits for indoor or outdoor use
  • Touch Options: With or without capacitive touch, customized driver IC available
  • Surface Treatment: AF (Anti-Fingerprint), AG (Anti-Glare), or tempered glass for enhanced durability
