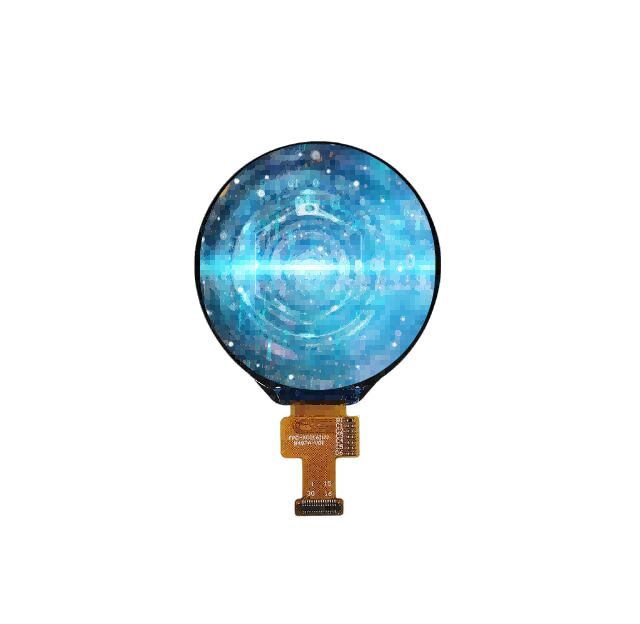

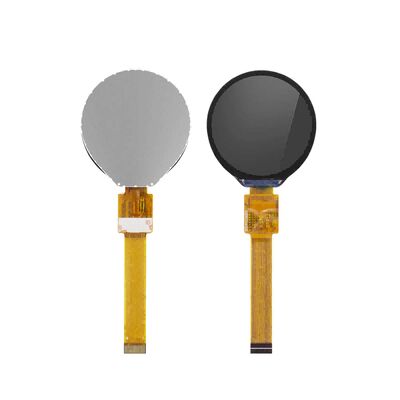

The YVO018WV-C01 is a 1.8-inch high-performance TFT LCD module, it features a 360×360 resolution, supports 16.7M vivid colors, and is driven by the ST77916 IC for stable performance. Equipped with multi-interface options (MIPI/QSPI/8BIT/SPI/SPI+RGB), it ensures wide compatibility with different mainboard designs. The IPS panel delivers full viewing angles (80-85° for T/B/L/R, CR≥10), providing consistent image quality from any perspective. With a typical brightness of 300 Cd/m² and a high contrast ratio of 1200:1, it offers clear visibility in both indoor and outdoor environments. The module adopts 3 parallel white LEDs as backlight, with a long operating life of 20000 hours. Its ultra-compact size (47.99×49.86×1.96 mm) and optional capacitive touch function (supports I2C interface: TP_SCL/TP_SDA/TP_RESET/TP_INT) make it ideal for space-limited applications. RoHS compliant and with a wide temperature range (-20~70℃ operating, -30~80℃ storage), it ensures reliable performance in harsh conditions.
| Product | 1.8 inch TFT LCD Module | Module Number | YVO018WV-C01 |
|---|---|---|---|
| Resolution | 360×360 (RGB) | Touch | With/Without touch (Optional) |
| Brightness | 300 Cd/m² (Typ.) | Outline Dimensions | 47.99×49.86×1.96 mm |
| Viewing Direction | All (IPS) | Active Area | 45.68×45.68 mm |
| Interface | MIPI/QSPI/8BIT/SPI/SPI+RGB | Connector Type | Custom Pitch (Per Spec) |
| Driver IC | ST77916 | Operating Temp. | -20 ~ +70 °C |
| Number of color | 16.7M | Storage Temp. | -30 ~ +80 °C |
| Highlight | 1.8-inch touch screen, 360×360 resolution, ST77916 driver, multi-interface support, IPS wide viewing angle, RoHS compliant | ||
The YVO018WV-C01 LCD module features reliable electrical performance: Analog supply voltage (VDD) ranges from 2.4V to 3.3V (Typ. 2.8V), digital supply voltage (IOVCC) from 1.65V to 3.3V (Typ. 1.8V). The LED backlight operates at a forward voltage (VF) of 5.6V~6.6V (Typ. 6.4V) and forward current (IF) of 60mA (3 LEDs parallel), with a backlight power consumption of 330~396mW. The module’s response time (TON+TOFF) is 30~35ms for smooth display switching, and luminance uniformity reaches 80%~85% for consistent brightness. It passes rigorous reliability tests including 96 hours of high-temperature (80℃) storage, 96 hours of low-temperature (-30℃) storage, and 10 thermal shock cycles (-20℃↔70℃), ensuring stable operation in extreme environments. The compact mechanical design with precise dimensional tolerances (unspecified tolerances ±0.20mm) facilitates seamless integration into small devices.
![]()
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | GND | Ground |
| 2 | LEDK | LED Cathode |
| 3 | LEDA | LED Anode (VF: 5.6~6.6V Typ.) |
| 4 | GND | Ground |
| 5 | CLKP | MIPI_DSI clock lane positive-end input pin |
| 6 | CLKN | MIPI_DSI clock lane negative-end input pin |
| 7 | GND | Ground |
| 8 | NC | No Connection |
| 9 | MIPI_D0N | SPI Data signal / MIPI_DSI data lane negative-end |
| 10 | GND | Ground |
| 11 | IM0 | Interface mode selection pin |
| 12 | IM1 | Interface mode selection pin |
| 13 | NC | No Connection |
| 14 | IOVCC | Power Supply for logic (1.65V~3.3V) |
| 15 | VDD(3.3V) | Power Supply for Analog (2.4V~3.3V) |
| 16 | VS | Vertical (Frame) synchronizing input signal (RGB interface) |
| 17 | HS | Horizontal (Line) synchronizing input signal (RGB interface) |
| 18 | TE | Tearing effect output pin (synchronize MCU to frame writing, low when inactive, open if unused) |
| 19 | RESET | Reset Signal, Active Low (must be applied to initialize chip) |
| 20 | GND | Ground |
| 21 | D7 | Data signal for DBI Type B mode |
| 22 | D6 | Data signal for DBI Type B mode |
| 23 | D5 | Data signal for DBI Type B mode |
| 24 | D4 | Data signal for DBI Type B mode |
| 25 | SDA3 | Data signal for DBI Type B mode |
| 26 | SDA2 | Data signal for DBI Type B mode |
| 27 | SDA1 | Data signal for DBI Type B mode |
| 28 | SD0 | Data signal for DBI Type B mode |
| 29 | CS | Chip select pin of DBI Type B mode, Low active |
| 30 | RD(SCL) | Read Control pulse H duration / I2C Clock signal |
| 31 | WR | Write enable in MCU parallel interface |
| 32 | DCX | Display data/command selection pin in parallel interface |
| 33 | GND | Ground |
| 34 | TP_SCL | Touch panel I2C clock (for optional touch function) |
| 35 | TP_SDA | Touch panel I2C data (for optional touch function) |
| 36 | TP_RESET | Touch panel reset (for optional touch function) |
| 37 | TP_INT | Touch panel interrupt output (for optional touch function, open if unused) |
| 38 | TP_VCC | Touch panel Power output (for optional touch function) |
| 39 | GND | Ground |
The YVO018WV-C01 excels in environmental adaptability, with an operating temperature range of -20°C to 70°C and storage temperature from -30°C to 80°C, making it suitable for diverse working scenarios. It passes strict reliability tests: 96 hours of high-temperature (80°C) storage, 96 hours of high-temperature (70°C) operation, 96 hours of low-temperature (-20°C) operation, 96 hours of 60°C/90%RH high-humidity operation (no condensation), 10 thermal shock cycles (-20°C↔25°C↔70°C), and ±2KV ESD air discharge tests (10 times). After testing, the module shows no defects such as LCD bubbles, seal leaks, non-display, missing segments, glass cracks, or excessive current increase (IDD ≤ twice initial value).
The YVO018WV-C01 offers multiple customization options to meet diverse application needs:
FPC Design: Flexible adjustment of FPC layout, length, and connector type to fit system installation requirements.
Cover Glass: Customizable thickness (0.3mm~1.0mm), surface treatment (AF anti-fingerprint, AG anti-glare), and printing (logo, pattern) for product matching.
Brightness: Adjustable from 200~500 Cd/m² to adapt to indoor, outdoor, or low-power consumption scenarios.
Touch Options: Optional capacitive touch function with customized driver IC (CST836U or equivalent) and touch sensitivity.
Interface Adaptation: Support for interface optimization (MIPI/QSPI/SPI+RGB) and pin definition adjustment to compatible with different mainboard designs.
