0.87 Inch OLED Display Module with 128x32 Resolution and 4-Wire SPI Interface
  • name
  • name
  • name

0.87 Inch OLED Display Module with 128x32 Resolution and 4-Wire SPI Interface

MOQ: 1000 pieces
Price: $1.1~2.99/pieces
Standard Packaging: 7*7*3
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000Pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
E087XI-W-C15-17
Highlight:

0.87 Inch OLED Display Module

,

128x32 Resolution OLED Module

,

4-Wire SPI Interface OLED Panel

Product Description

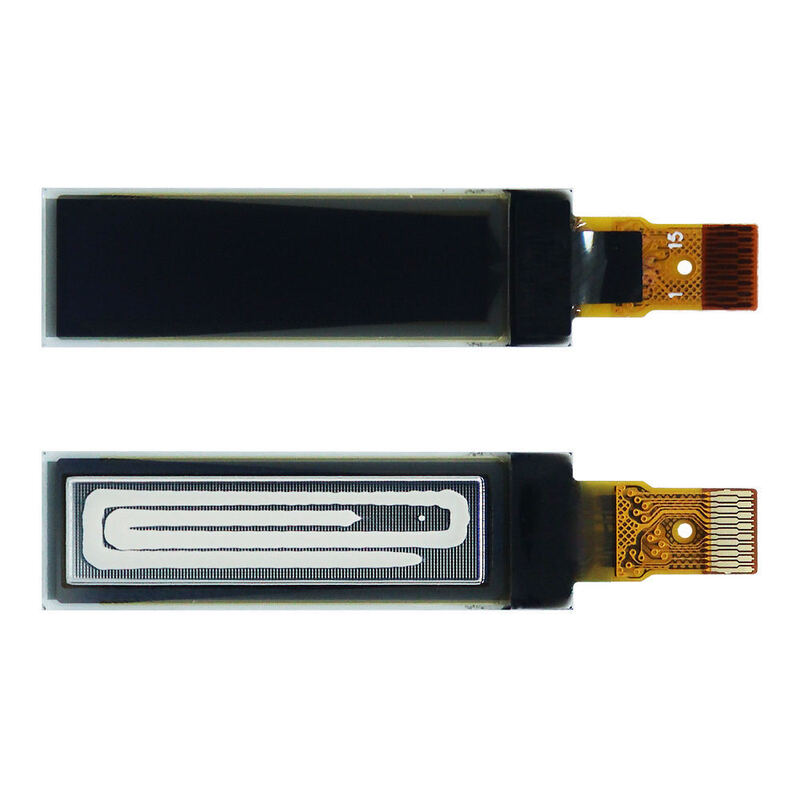

0.87 Inch OLED Display Module with 128x32 Resolution and 4-Wire SPI Interface
This high-performance 0.87-inch OLED module features 128×32 resolution and 4-Wire SPI interface support, delivering exceptional visuals with monochrome white display. Equipped with SSD1312 driver IC and COG packaging, it offers >10000:1 ultra-high contrast ratio, 160 Cd/m² typical brightness, and all-direction viewing angles. With low power consumption, wide operating temperature range (-40℃ to +70℃), and reliable performance, it's ideal for portable devices, IoT terminals, industrial controls, medical instruments, and DIY electronics.
Key Specifications
Product 0.87 inch OLED Module Module Number E087XI-W-C15-17
Resolution 128(H)×32(V) dots Display Color White (Monochrome)
Brightness 120 Cd/m² (Min.), 160 Cd/m² (Typ.) Outline Dimensions 29.0(W)×8.8(H)×1.22(T) mm
Viewing Direction All Direction Active Area 22.38(W)×5.58(H) mm
Interface 4-Wire SPI Operating Temperature -40 to +70 ℃
Driver IC SSD1312 Storage Temperature -40 to +85 ℃
IC Package Type COG (Chip on Glass) Drive Duty 1/128
Pixel Pitch 0.175(W)×0.175(H) mm Contrast Ratio >10000:1 (Dark Room)
Pixel Size 0.155(W)×0.155(H) mm Service Life 10,000 hrs (@160 Cd/m²)
Logic Supply Voltage (VDD) 1.65 to 3.5 V (Typ. 2.8 V) Display Supply Voltage (VPP) 8.5 to 9.5 V (External), 9 V (Internal DC/DC)
Product Highlights: 0.87-inch OLED display, 128×32 resolution, 4-Wire SPI interface, SSD1312 driver IC, COG packaging, white monochrome display, >10000:1 ultra-high contrast ratio, all-direction viewing angle, wide temperature range (-40 to +70℃), low power consumption, long service life, easy integration with mainstream MCUs
Technical Features
  • COG (Chip on Glass) packaging for ultra-compact size (29.0×8.8×1.22mm) and high reliability, perfect for space-constrained devices
  • 4-Wire SPI interface for stable high-speed data transmission, maximum clock frequency up to 4MHz (minimum cycle 250ns at 2.4~3.5V)
  • Low power consumption: 180~300μA typical VDD current, 13~23mA operating current, 1~5μA sleep mode current
  • Excellent optical performance: >10000:1 dark room contrast ratio, 160 Cd/m² typical brightness, natural white color (CIE x:0.25-0.33, y:0.27-0.35)
  • Wide operating temperature range (-40℃ to +70℃) adapts to harsh industrial, outdoor and extreme environment applications
  • Dual power supply options: External VPP input (8.5~9.5V) or internal DC/DC converter (VBAT 3.5~4.2V) for flexible system design
  • Built-in ESD protection and noise suppression, ensuring stable operation in complex electromagnetic environments
  • Passes strict reliability tests (high/low temperature, thermal shock, high humidity) to meet industrial-grade quality standards
Electrical Specifications
DC/DC converter supply voltage (VBAT): 3.5V to 4.2V
Input high voltage (VIH): ≥0.8×VDD; Input low voltage (VIL): ≤0.2×VDD
Output high voltage (VOH): ≥0.9×VDD; Output low voltage (VOL): ≤0.2×VDD
SPI interface timing (2.4~3.5V): Clock cycle ≥250ns, data setup time ≥100ns, data hold time ≥100ns
Sleep mode current (VDD): 1~5μA; Sleep mode current (VPP): 2~10μA
Operating current (VBAT, internal DC/DC): 13.0~18mA (100% display area on)
Pin Definition
PIN Symbol Description
1 C2P Negative Terminal of the Flying Boost Capacitor; Connect with C2N (PIN2) via capacitor
2 C2N Positive Terminal of the Flying Inverting Capacitor; Connect with C2P (PIN1) via capacitor
3 C1P Positive Terminal of the Flying Inverting Capacitor; Connect with C1N (PIN4) via capacitor
4 C1N Negative Terminal of the Flying Boost Capacitor; Connect with C1P (PIN3) via capacitor
5 VBAT Power Supply for DC/DC Converter Circuit; Connect to external source when converter is used, connect to VDD when not used
6 VSS Ground of OEL System; Reference for logic pins, OEL driving voltages and analog circuits, must be connected to external ground
7 VDD Power Supply for Logic; Voltage supply pin, must be connected to external source (1.65~3.5V)
8 CS Chip Select; Chip enabled for MCU communication only when pulled LOW
9 RES# Power Reset for Controller and Driver; Pull LOW for initialization, keep HIGH during normal operation
10 D/C Data/Command Control; HIGH: SDIN data = display data; LOW: SDIN data = command
11 SCLK Serial Clock Input Signal; Data transmission synchronized with clock, one data bit per clock period
12 SDIN Serial Data Input Signal; Input data latched at rising edge of SCLK (MSB first), identified as data/command by D/C bit
13 IREF Current Reference for Brightness Adjustment; Connect to VSS via resistor, maximum current 12.5μA
14 VCOMH Voltage Output High Level for COM Signal; Connect to VSS via capacitor
15 VCC Power Supply for OEL Panel; Most positive voltage supply pin, must be supplied externally
Application Scenarios
  • Portable electronic devices (handheld meters, data loggers, portable detectors)
  • IoT terminals and smart sensors (environmental monitors, motion sensors, wireless controllers)
  • Industrial control systems (PLC panels, sensor data displays, compact controllers)
  • Medical instruments (portable medical monitors, small diagnostic equipment)
  • Consumer electronics (smart home controllers, small POS machines, wearable devices)
  • Automotive electronics (in-vehicle small displays, control panels)
  • DIY electronics and hobby projects (Arduino/Raspberry Pi compatible displays)
Customization Options
  • FPC Design: Flexible FPC length and pin layout adjustments to match system integration requirements
  • Brightness Tuning: Customizable brightness levels (120~250 Cd/m²) based on application needs
  • Interface Optimization: SPI clock frequency customization and initialization code adaptation for specific MCUs
  • Polarizer Customization: Different polarizer types (wide view, high contrast) for special viewing requirements
  • Packaging Solution: Custom anti-static packaging, vacuum packaging with desiccant for long-term storage
  • Warranty Extension: Extended warranty options (18~24 months) for bulk orders
Handling Notes
1. Electrostatic Protection: Use anti-static bracelets and grounded tools when handling. Avoid assembly in dry environments; recommended relative humidity 50%-60%. Do not touch pins, electrodes or FPC patterns directly with hands.
2. Cleaning Instructions: The polarizer surface is easily scratched. Clean with Scotch Mending Tape No. 810 or equivalent. Do not use water, ethyl alcohol, ketone or aromatic solvents, as they may damage the polarizer.
3. Storage Conditions: Store in anti-static vacuum bags with desiccant at 0℃~30℃, humidity ≤60%. Avoid direct sunlight, fluorescent light, high temperature/humidity or low temperature environments. Reseal if not used within 1 month after opening.
4. Operation Precautions: Follow power-on sequence (VDD → Initialization → VPP/VBAT → Display ON) and power-off sequence (Display OFF → VPP/VBAT OFF → VDD OFF). Add electronic switch in main board design to avoid leakage current. Do not apply input signals when logic power is off.
5. Assembly Tips: Do not apply excessive pressure to the glass panel or bend FPC forcibly. Shield the driver IC from light in product design to avoid malfunction. Install overcurrent protection (0.5A fuse recommended) in the VDD power circuit.

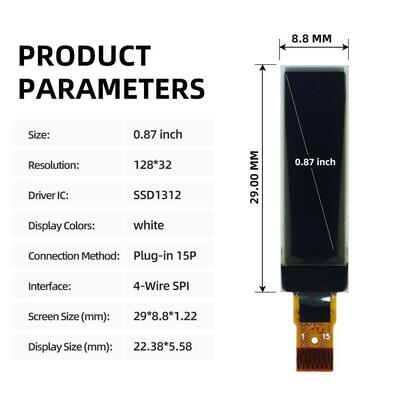

Module Dimensions
0.87 Inch OLED Display Module with 128x32 Resolution and 4-Wire SPI Interface 0
Factory Display
0.87 Inch OLED Display Module with 128x32 Resolution and 4-Wire SPI Interface 1
Product Packaging
0.87 Inch OLED Display Module with 128x32 Resolution and 4-Wire SPI Interface 2 0.87 Inch OLED Display Module with 128x32 Resolution and 4-Wire SPI Interface 3
Shipment & Payment
0.87 Inch OLED Display Module with 128x32 Resolution and 4-Wire SPI Interface 4 0.87 Inch OLED Display Module with 128x32 Resolution and 4-Wire SPI Interface 5
Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

R
robert campbell
United Kingdom Jan 20.2026
trustpilot.com
Helpful (47)
Fit perfectly, an excellent product!
M
Martinez Jao
United Kingdom Dec 24.2025
trustpilot.com
Helpful (36)
The brightness is good. Even under direct sunlight, the display content can still be seen
D
David K.
United States Dec 20.2025
Helpful (1)
The built-in ESP32 makes this display module very convenient for development. The 2.4 inch screen is clear, and the touch response is stable when testing with Arduino IDE. Suitable for IoT and HMI prototype projects.
