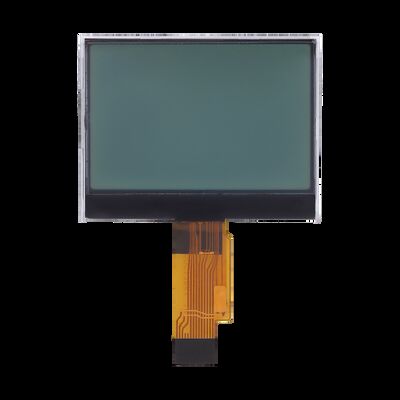

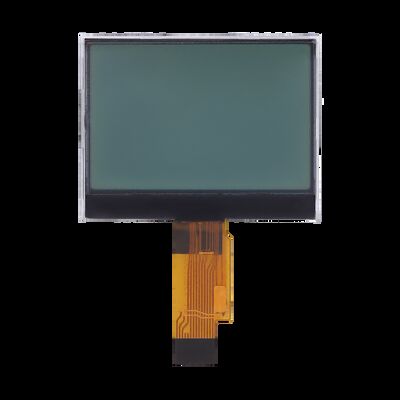

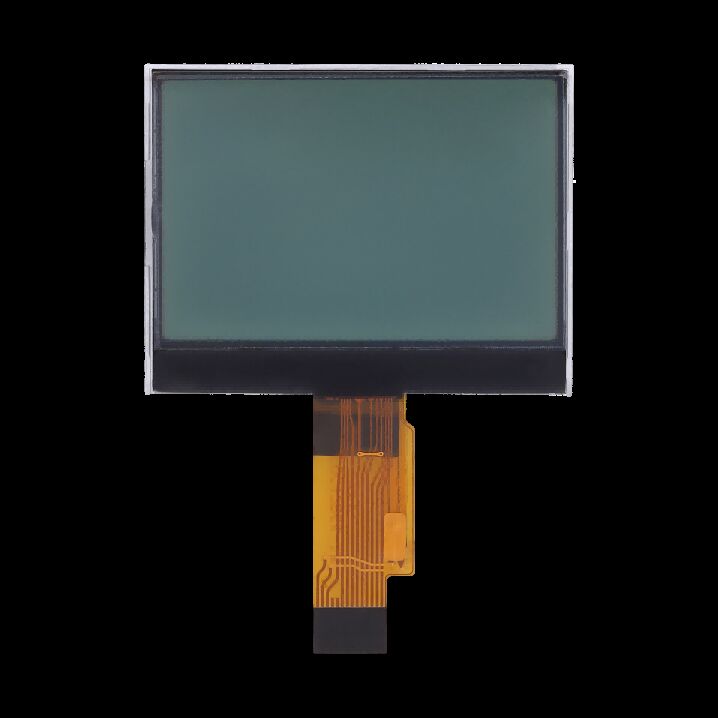

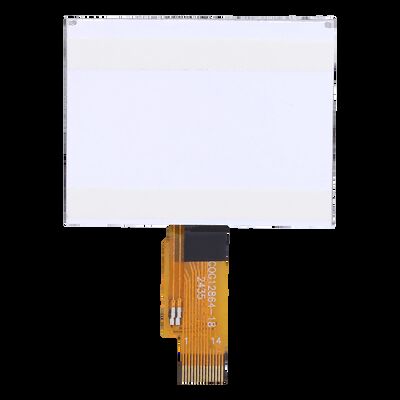

COG12864-18 128x64 DOTS Industrial Monochrome COG LCD Display
  • name
  • name
  • name

COG12864-18 128x64 DOTS Industrial Monochrome COG LCD Display

MOQ: 10 pieces
Price: $1.99~.2.99/pieces
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YMG12864FG-X07
Highlight:

Monochrome COG LCD Display

,

128x64 DOTS COG LCD Display

,

COG LCD Display 128x64

Product Description
COG12864-18 128x64 Dot Matrix LCD Module
This industrial grade COG12864-18 128x64 dot matrix LCD display module adopts FSTN positive transflective display structure and COG+BL integrated packaging design, driven by ST7567A dedicated driver chip. It features 3.3V operating voltage, white LED backlight, 6 o'clock viewing direction, wide temperature working range and ultra-low power consumption, with stable performance, RoHS compliance and compact size, widely applied in industrial control, measuring instruments, portable electronics and embedded display systems with high reliability demands.
Product Specifications
Display Type FSTN Positive Transflective Monochrome LCD
Resolution 128 x 64 Dots
Module Model COG12864-18
Driver IC ST7567A
Drive Mode 1/64 Duty, 1/9 Bias
Operating Voltage VDD=3.3V, VLCD=8.5V
Viewing Direction 6 O'Clock
Backlight White LED, Vf=3.0±0.2V, If=45mA
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Connection Type COG + BL, 14PIN Interface
Outline Dimension 43.7*33.8*3.1(mm)
Unspecified Tolerance ±0.2mm
Certification RoHS Compliant
Product Features
  • Standard 128x64 dot matrix, FSTN positive transflective clear display effect
  • COG ultra-thin integrated design, small outline, easy for embedded installation
  • ST7567A special driver, strong anti-interference and long service life
  • White LED backlight with uniform brightness, low power consumption and high stability
  • Wide temperature adaptation, suitable for harsh industrial application environments
  • 14PIN standard interface, simple circuit connection and strong compatibility
  • RoHS environmentally friendly certification, in line with global export standards
Product Applications
  • Industrial control equipment and intelligent operation panels
  • Electronic measuring instruments, meters and testing equipment
  • Portable electronic products and small smart devices
  • Automotive electronics and vehicle-mounted auxiliary display
  • Medical testing instruments and communication terminal equipment
  • Embedded system modules and industrial intelligent terminals

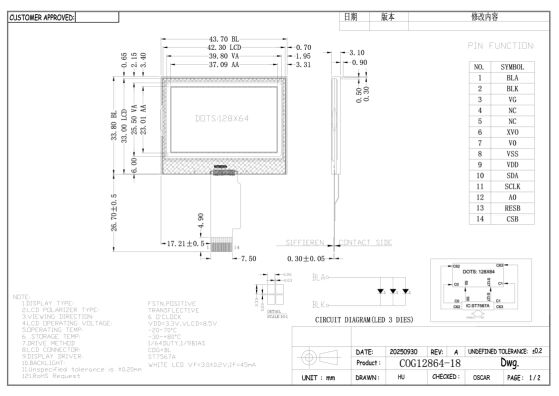

Dimension Drawing
 COG12864-18 128x64 DOTS Industrial Monochrome COG LCD Display 0
Collaborating Party
COG12864-18 128x64 DOTS Industrial Monochrome COG LCD Display 1
Shipping and Delivery
 COG12864-18 128x64 DOTS Industrial Monochrome COG LCD Display 2
Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
0%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

7
7 Inch Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor
United Kingdom Jan 20.2026
trustpilot.com
Helpful (47)
Fit perfectly, an excellent product!
Y
YB101WSVL-PH01 10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(800+cd/m²；Highlight, sunlight visible )
United Kingdom Dec 24.2025
trustpilot.com
Helpful (36)
The brightness is good. Even under direct sunlight, the display content can still be seen
2
2.4 Inch ESP32 Display Module with 240×320 Pixels TFT LCD and WiFi Bluetooth
United States Dec 20.2025
Helpful (1)
The built-in ESP32 makes this display module very convenient for development. The 2.4 inch screen is clear, and the touch response is stable when testing with Arduino IDE. Suitable for IoT and HMI prototype projects.
Tags:

128x64 Dots LCD Module,

FSTN Transflective Display Screen,

COG Packaging Industrial Display
