COG12864-21 128x64 FSTN Positive Transmissive LCD Module ST7567 Driver

Brand Name:	YZY
Model Number:	YMG12864FG-X08
MOQ:	10 pieces
Price:	$1.46~1.86/pieces
Payment Terms:	T/T
Supply Ability:	10000 pieces

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, ROHS

Highlight:

128x64 Dots LCD Module

FSTN Positive Transmissive Monochrome LCD Display

ST7567 Driver COG LCD Module

Product Description

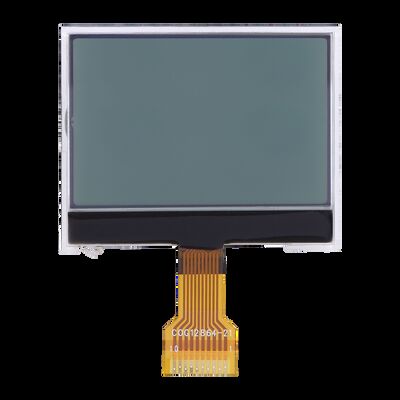

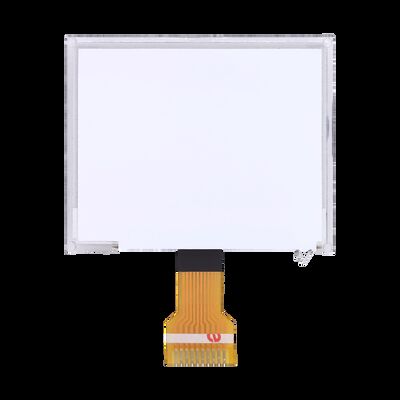

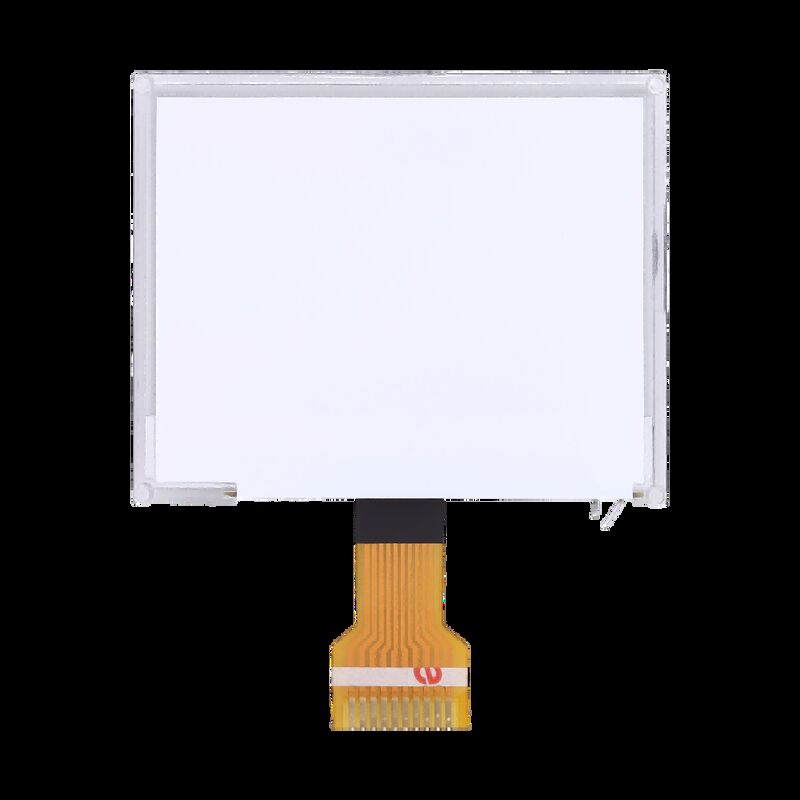

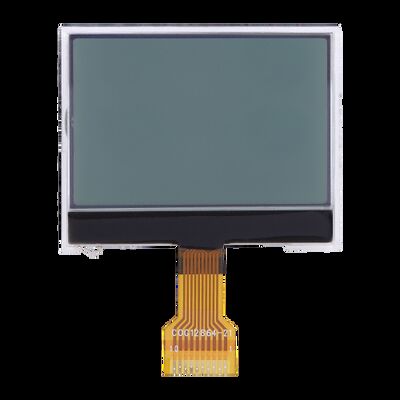

COG12864-21 128x64 FSTN Positive Transmissive LCD Module ST7567 Driver

This industrial grade COG12864-21 128x64 dot matrix LCD display module adopts FSTN positive transmissive structure and COG+BL integrated packaging, driven by ST7567 professional driver chip. It supports 3.0V operating voltage, white LED backlight, 6 o'clock viewing direction and wide temperature range, with ultra-low power consumption, stable performance, RoHS compliance and compact outline, widely used in industrial control, measuring instruments, portable electronics, smart devices and embedded display systems with high reliability requirements.

Product Specifications

Display Type	FSTN Positive Transmissive Monochrome LCD
Resolution	128 x 64 Dots
Module Model	COG12864-21
Driver IC	ST7567
Drive Mode	1/64 Duty, 1/9 Bias
Operating Voltage	VDD=3.0V, VLCD=8.5V
Viewing Direction	6 O'Clock
Backlight	White LED, Vf=2.8-3.2V, If=30mA
Operating Temperature	-20℃ ~ +70℃
Storage Temperature	-30℃ ~ +80℃
Connection Type	COG + BL, 10PIN Interface
Outline Dimension	49.039.610.5(mm)
Unspecified Tolerance	±0.2mm
Certification	RoHS Compliant

Product Features

Standard 128x64 dot matrix, FSTN positive transmissive high-definition display effect
COG ultra-thin integrated design, compact size, easy for embedded installation and application
ST7567 special driver chip, strong anti-interference ability and long service life
White LED backlight with uniform brightness, low power consumption and high stability
Wide temperature adaptation, suitable for various harsh industrial application environments
10PIN standard interface, simple circuit connection and strong system compatibility
RoHS environmentally friendly certification, fully in line with global market export standards

Product Applications

Industrial control equipment and intelligent operation panels
Electronic measuring instruments, meters and precision testing equipment
Portable electronic products and small intelligent electronic devices
Automotive electronics and vehicle-mounted auxiliary display modules
Medical testing instruments and communication terminal equipment
Embedded system modules and industrial intelligent control terminals

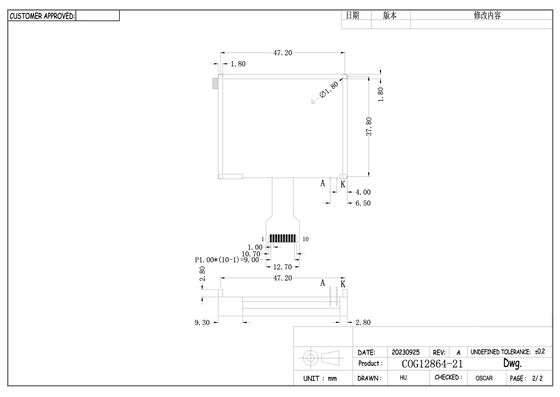

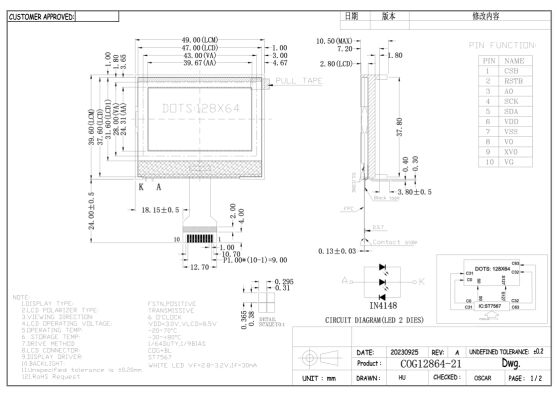

Dimension Drawing

Product Application

Shipping and Delivery
