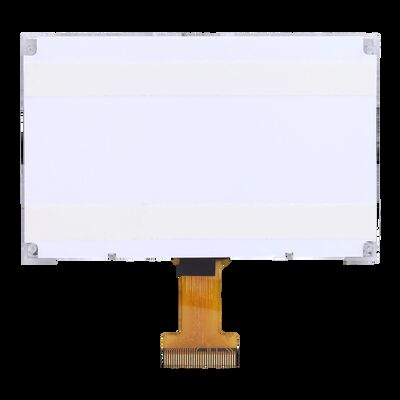

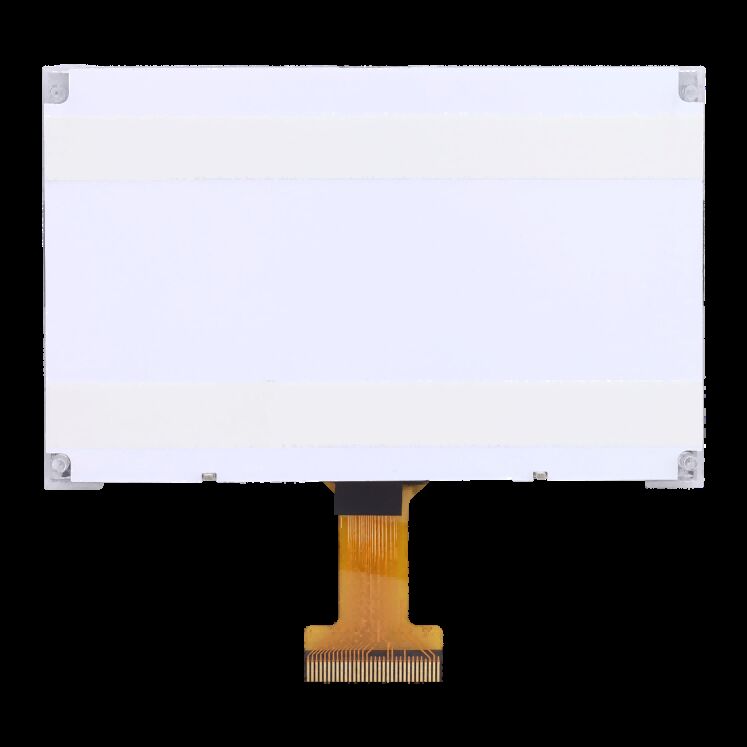

YMG12864FG-X09 128x64 Monochrome COG LCD Screen for Industrial Control Equipment
  • name
  • name
  • name

YMG12864FG-X09 128x64 Monochrome COG LCD Screen for Industrial Control Equipment

MOQ: 10 pieces
Price: $1.46~1.86/pieces
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YMG12864FG-X08
Highlight:

YMG12864FG-X09 Monochrome LCD

,

Industrial Control Equipment LCD Screen

,

Industrial Control Equipment LCD

Product Description
YMG12864FG-X09 128x64 Monochrome COG LCD Screen for Industrial Control Equipment
This industrial grade YMG12864FG-X09 128x64 dot matrix LCD module adopts STN blue negative transmissive display structure and COG packaging design, driven by ST7567 professional driver IC. It features 3.0V operating voltage, white LED backlight, 6 o'clock viewing direction and wide temperature range, with stable performance, low power consumption, RoHS compliance and standard outline, widely applied in industrial control, measuring instruments, automotive electronics, smart equipment and embedded display systems with high reliability demands.
Product Specifications
Display Type STN (Blue), Negative Transmissive Monochrome LCD
Resolution 128 x 64 Dots
Module Model YMG12864FG-X09
Driver IC ST7567
Drive Mode 1/64 Duty, 1/9 Bias
Operating Voltage VDD=3.0V, VLCD=9.2V
Viewing Direction 6 O'Clock
Backlight White LED, Vf=2.8-3.2V, If=75mA
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Connection Type COG, 32PIN Interface
Outline Dimension 77.50*49.50*5.00(mm)
Unspecified Tolerance ±0.2mm
Certification RoHS Compliant
Product Features
  • Standard 128x64 dot matrix, STN blue negative transmissive clear display effect
  • COG ultra-thin packaging design, regular outline, easy for embedded installation
  • ST7567 dedicated driver chip, strong anti-interference and long service life
  • White LED backlight with high brightness, uniform luminescence and stable performance
  • Wide temperature adaptation, suitable for harsh industrial and vehicle environments
  • 32PIN standard interface, perfect compatibility with mainstream control systems
  • RoHS environmentally friendly certified, fully meet global export and market standards
Product Applications
  • Industrial control equipment and intelligent operation panels
  • Electronic measuring instruments, meters and precision testing equipment
  • Automotive electronics and vehicle-mounted auxiliary display modules
  • Smart home appliances and portable intelligent electronic devices
  • Medical testing instruments and communication terminal equipment
  • Embedded system modules and industrial intelligent control terminals

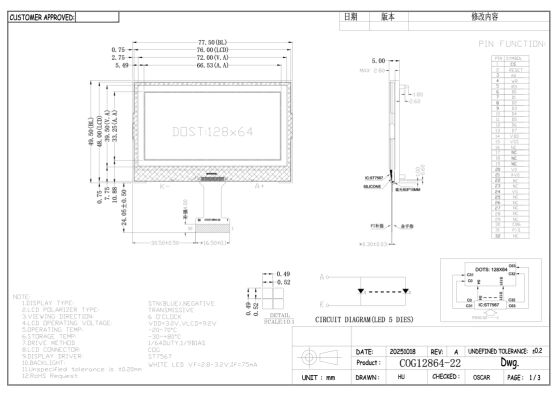

Dimension Drawing
YMG12864FG-X09 128x64 Monochrome COG LCD Screen for Industrial Control Equipment 0
Product Application
YMG12864FG-X09 128x64 Monochrome COG LCD Screen for Industrial Control Equipment 1
Shipping and Delivery
 YMG12864FG-X09 128x64 Monochrome COG LCD Screen for Industrial Control Equipment 2
