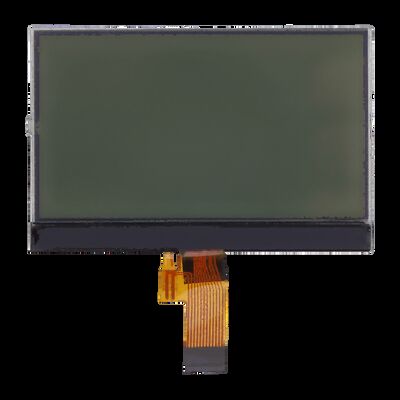

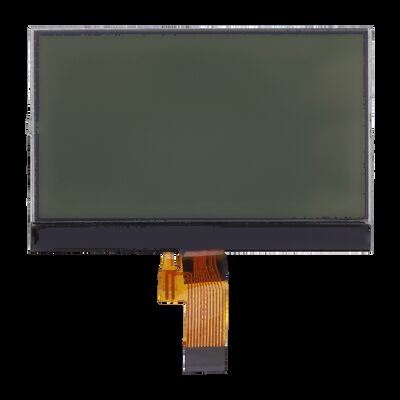

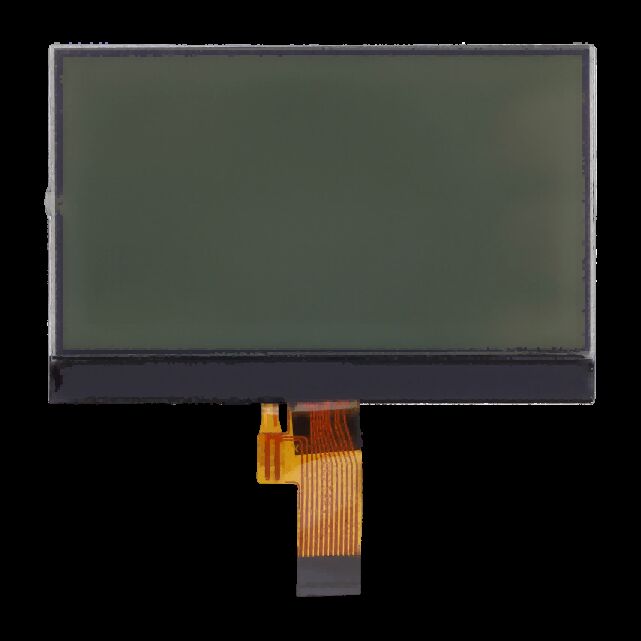

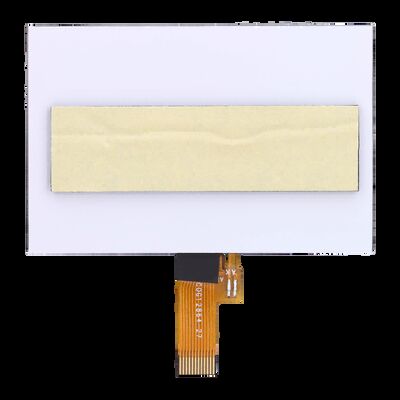

COG12864-27 128x64 FSTN Transmissive LCD Module Wide Temp 3.3V Drive
  • name
  • name
  • name

COG12864-27 128x64 FSTN Transmissive LCD Module Wide Temp 3.3V Drive

MOQ: 10 pieces
Price: $1.76~2.16/pieces
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YMG12864FG-X12
Highlight:

128x64 Dots LCD Module

,

FSTN Positive Transmissive Monochrome LCD Display

,

Wide Temperature Range COG LCD Module

Product Description
COG12864-27 128x64 FSTN Transmissive LCD Module Wide Temp 3.3V Drive
This industrial grade COG12864-27 128x64 dot matrix LCD module adopts FSTN positive transmissive display structure and COG packaging design, driven by ST7567A professional driver IC. It features 3.3V operating voltage, white LED backlight, 6 o'clock viewing direction and wide temperature range, with ultra-low power consumption, stable performance, RoHS compliance and compact ultra-thin outline, widely applied in industrial control, measuring instruments, smart devices, portable electronics and embedded display systems with high reliability requirements.
Product Specifications
Display Type FSTN Positive Transmissive Monochrome LCD
Resolution 128 x 64 Dots
Module Model COG12864-27
Driver IC ST7567A
Drive Mode 1/64 Duty, 1/9 Bias
Operating Voltage VDD=3.3V, VLCD=9.7V
Viewing Direction 6 O'Clock
Backlight White LED, Vf=2.8-3.2V, If=45mA
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Connection Type COG, 12PIN Interface
Outline Dimension 56.00*36.80*4.70(mm)
Unspecified Tolerance ±0.2mm
Certification RoHS Compliant
Product Features
  • Standard 128x64 dot matrix, FSTN positive transmissive clear and stable display effect
  • COG ultra-thin compact design, small outline size, easy for embedded installation and integration
  • ST7567A dedicated driver chip, strong anti-interference performance and long service life
  • White LED backlight with uniform brightness, low power consumption and high working stability
  • Wide temperature adaptation, suitable for various harsh industrial and commercial application environments
  • 12PIN standard interface, simple circuit connection and strong system compatibility
  • RoHS environmentally friendly certification, fully meet global export and market access standards
Product Applications
  • Industrial control equipment and intelligent operation panels
  • Electronic measuring instruments, meters and precision testing equipment
  • Portable intelligent electronic products and small handheld devices
  • Smart home appliances and automotive electronic auxiliary display modules
  • Medical testing instruments and communication terminal equipment
  • Embedded system modules and industrial intelligent control terminals

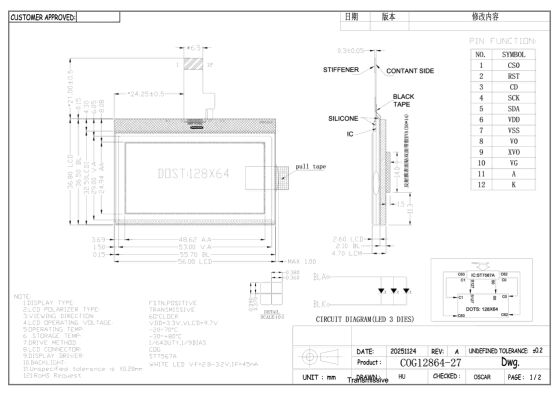

Dimension Drawing
COG12864-27 128x64 FSTN Transmissive LCD Module Wide Temp 3.3V Drive 0
Product Application
COG12864-27 128x64 FSTN Transmissive LCD Module Wide Temp 3.3V Drive 1
Production & Manufacturing
 COG12864-27 128x64 FSTN Transmissive LCD Module Wide Temp 3.3V Drive 2
