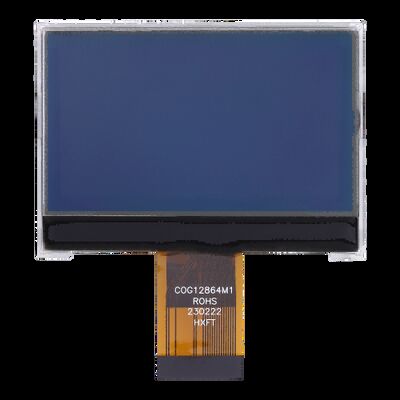

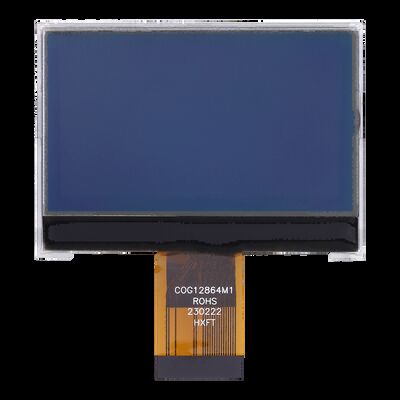

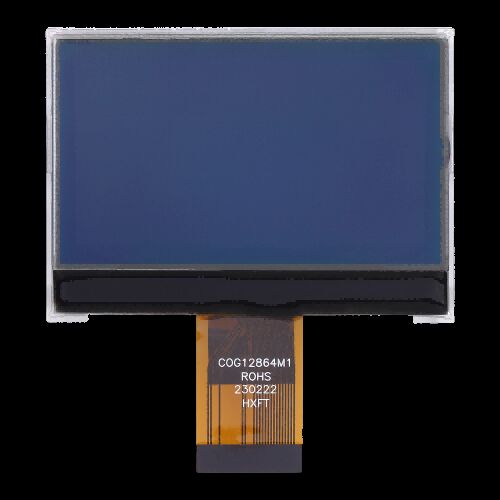

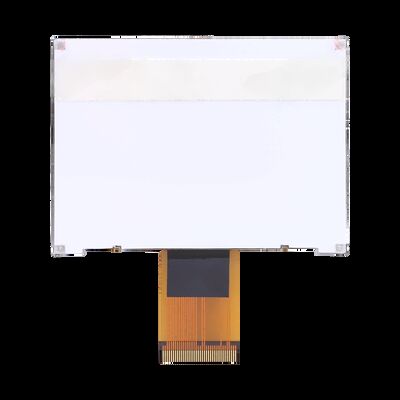

COG12864M1 STN Blue Film COG Dot Matrix LCD 128x64 Serial/Parallel ST7567A
  • name
  • name
  • name

COG12864M1 STN Blue Film COG Dot Matrix LCD 128x64 Serial/Parallel ST7567A

MOQ: 10 pieces
Price: $2.29~2.84/pieces
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YMG12864SG-X01
Highlight:

128x64 Dots Monochrome LCD Display

,

STN Blue Negative Transmissive Dot Matrix LCD

,

Wide Temperature Range COG LCD Module

Product Description
COG12864M1 STN Blue Film COG Dot Matrix LCD 128x64 Serial/Parallel ST7567A
This industrial grade YMG12864SG-X01 128x64 dot matrix LCD module adopts STN blue negative transmissive display structure and COG+BL packaging design, driven by ST7567A professional driver IC (or equivalent). It features 3.0V operating voltage, white LED backlight, 6 o'clock viewing direction and wide temperature range, with ultra-low power consumption, stable performance, RoHS compliance and compact outline, widely applied in industrial control, measuring instruments, smart devices, portable electronics and embedded display systems with high reliability requirements.
Product Specifications
Display TypeSTN (Blue) Negative Transmissive Monochrome LCD
Resolution128 x 64 Dots
Module ModelYMG12864SG-X01
Part No.COG12864M1
Driver ICST7567A OR Equivalent
Drive Mode1/64 Duty, 1/9 Bias
Operating VoltageVDD=3.0V, VLCD=8.5V
Viewing Direction6 O'Clock
BacklightWhite LED, Vf=2.8-3.3V, If=60mA
Operating Temperature-20℃ ~ +70℃ (Wide Temperature)
Storage Temperature-30℃ ~ +80℃
Connection TypeCOG+BL, Serial/Parallel Interface
Outline Dimension72.00*53.00*6.70(mm)
Viewing Area65.50*38.00(mm)
Active Area60.775*32.935(mm)
Unspecified Tolerance±0.20mm
CertificationRoHS Compliant
Product Features
  • Standard 128x64 dot matrix, STN blue negative transmissive display with clear and stable visual effect
  • COG+BL compact design, 72.0*53.0*6.7mm outline size, easy for embedded installation and system integration
  • ST7567A dedicated driver chip (or equivalent), strong anti-interference performance and long service life
  • White LED backlight with 2.8-3.3V Vf and 60mA If, uniform brightness, low power consumption and high stability
  • Wide temperature adaptation (-20~70℃ operating, -30~80℃ storage), suitable for harsh industrial environments
  • Dual Serial/Parallel interface design, simple circuit connection and strong compatibility with control systems
  • ±0.20mm high precision tolerance control, RoHS environmental certification, meet global export standards
Product Applications
  • Industrial control equipment and intelligent operation panels
  • Electronic measuring instruments, meters and precision testing equipment
  • Portable intelligent electronic products and small handheld devices
  • Smart home appliances and automotive electronic auxiliary display modules
  • Medical testing instruments and communication terminal equipment
  • Embedded system modules and industrial intelligent control terminals

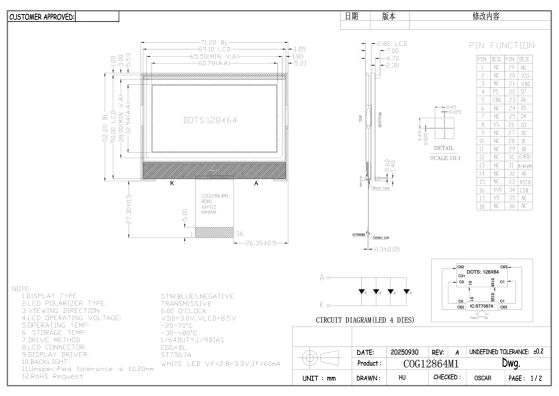

Dimension Drawing
COG12864M1 STN Blue Film COG Dot Matrix LCD 128x64 Serial/Parallel ST7567A 0
Product Application
COG12864M1 STN Blue Film COG Dot Matrix LCD 128x64 Serial/Parallel ST7567A 1
Cooperative Partner
COG12864M1 STN Blue Film COG Dot Matrix LCD 128x64 Serial/Parallel ST7567A 2
Company Profile
Yingzhan Ying Technology was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company has always been committed to custom services, R&D, sales and after-sales services in the optoelectronic display industry.

The company's products include Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These products are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services and other fields, making it a supplier to many well-known clients.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
