COG12864I2 STN Yellow-Green COG 128x64 Dot Matrix LCD ST7567 Serial
  • name
  • name
  • name
  • name

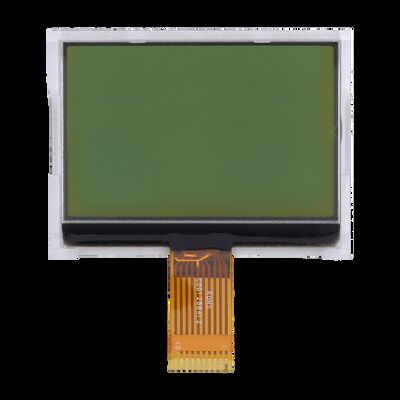

COG12864I2 STN Yellow-Green COG 128x64 Dot Matrix LCD ST7567 Serial

MOQ: 10 pieces
Price: $1.89~2.43/pieces
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YMG12864SG-X04
Highlight:

128x64 dot matrix lcd

,

ST7567 Dot Matrix LCD

,

128x64 Dot Matrix LCD

Product Description
COG12864I2 STN Yellow-Green COG 128x64 Dot Matrix LCD ST7567 Serial
This industrial grade COG12864I2 128x64 dot matrix LCD module adopts STN yellow-green positive transmissive display structure and COG packaging design, driven by ST7567 professional driver IC (or equivalent). It features 3.0V operating voltage, green LED backlight (VF=2.8~3.2V, IF=45mA), 6 o'clock viewing direction and room temperature adaptation range, with ultra-low power consumption, stable performance, RoHS compliance and compact outline (53.0×40.0×4.95mm), widely applied in industrial control, measuring instruments, smart devices, portable electronics and embedded display systems with high reliability requirements.
Product Specifications
Display Type STN (Y-G) Positive Transmissive Monochrome LCD
Resolution 128 x 64 Dots
Module Model YMG12864SG-X04
Part No. COG12864I2
Driver IC ST7567 OR Equivalent
Drive Mode 1/64 Duty, 1/9 Bias
Operating Voltage VDD=3.0V, VLCD=9.0V
Viewing Direction 6 O'Clock
Backlight Green LED, Vf=2.8-3.2V, If=45mA
Operating Temperature -20℃ ~ +70℃ (Room Temperature)
Storage Temperature -30℃ ~ +80℃
Connection Type COG, Serial Interface
Outline Dimension 53.00×40.00×4.95(mm)
Viewing Area 46.00×30.00(mm)
Active Area 42.93×26.00(mm)
Unspecified Tolerance ±0.20mm
Certification RoHS Compliant
Product Features
  • Standard 128x64 dot matrix, STN yellow-green positive transmissive display with clear and stable visual effect
  • COG compact design, 53.0×40.0×4.95mm outline size, easy for embedded installation and system integration
  • ST7567 dedicated driver chip (or equivalent), strong anti-interference performance and long service life
  • Green LED backlight with 2.8-3.2V Vf and 45mA If, uniform brightness, low power consumption and high stability
  • Room temperature adaptation (-20~70℃ operating, -30~80℃ storage), suitable for general industrial and commercial environments
  • Serial interface design, simple circuit connection and strong compatibility with control systems
  • ±0.20mm high precision tolerance control, RoHS environmental certification, meet global export standards
Product Applications
  • Industrial control equipment and intelligent operation panels
  • Electronic measuring instruments, meters and precision testing equipment
  • Portable intelligent electronic products and small handheld devices
  • Smart home appliances and automotive electronic auxiliary display modules
  • Medical testing instruments and communication terminal equipment
  • Embedded system modules and industrial intelligent control terminals

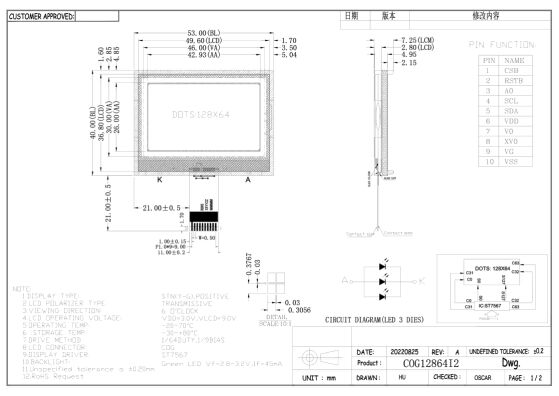

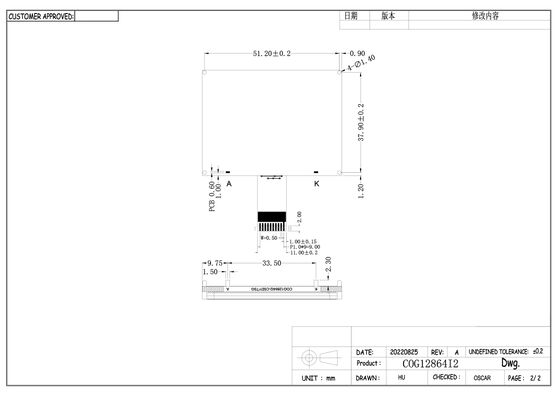

Dimension Drawing
COG12864I2 STN Yellow-Green COG 128x64 Dot Matrix LCD ST7567 Serial 0

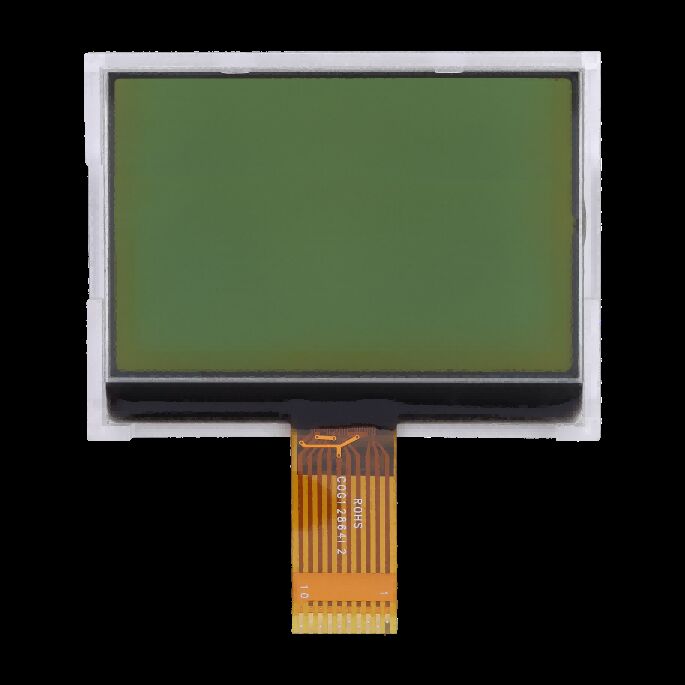

Product Application
COG12864I2 STN Yellow-Green COG 128x64 Dot Matrix LCD ST7567 Serial 1Cooperative Partner
COG12864I2 STN Yellow-Green COG 128x64 Dot Matrix LCD ST7567 Serial 2
