COG12864-17 128x64 Dots STN Blue Negative Transmissive LCD Module with Wide Temperature Range
  • name
  • name
  • name

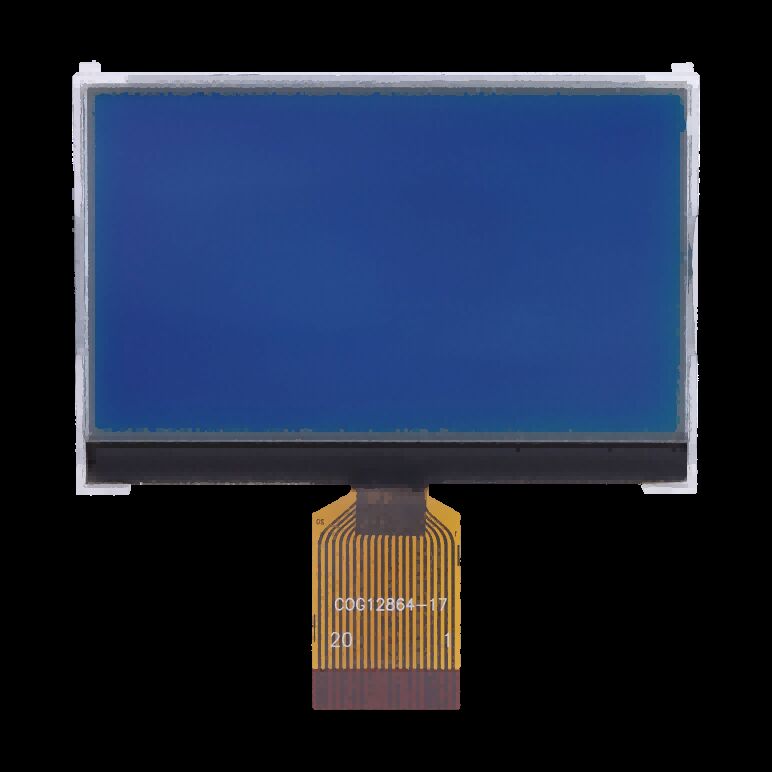

COG12864-17 128x64 Dots STN Blue Negative Transmissive LCD Module with Wide Temperature Range

MOQ: 10 pieces
Price: $2.84~8.23/pieces
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YMG12864SG-X07
Highlight:

128x64 Dots LCD Module

,

STN Blue Negative Transmissive LCD Module

,

Wide Temperature Range Dot Matrix LCD

Product Description
COG12864-17 128×64 STN Blue Transmissive LCD Module FOG+BL COG ST7567 White LED
COG12864-17 STN Blue Negative COG FOG+BL 128×64 Dot Matrix LCD ST7567 Serial/Parallel This industrial grade COG12864-17 128×64 dot matrix LCD module adopts STN blue negative transmissive display structure and COG+FOG+BL packaging design, driven by ST7567 professional driver IC. It features 3.0V operating voltage, white LED backlight (VF=2.8~3.2V, IF=60mA), 6 o'clock viewing direction and wide temperature adaptation range (-20~70℃), with ultra-low power consumption, stable performance, RoHS compliance and compact outline (71.0×48.0×4.9mm), widely applied in industrial control, measuring instruments, smart devices, portable electronics and embedded display systems with high reliability requirements.
Product Specifications
Display TypeSTN (Blue) Negative Transmissive Monochrome LCD
Resolution128 × 64 Dots
Module ModelYMG12864SG-X07
Part No.COG12864-17
Driver ICST7567
Drive Mode1/64 Duty, 1/9 Bias
Operating VoltageVDD=3.0V, VLCD=8.2V
Viewing Direction6 O'Clock
BacklightWhite LED, Vf=2.8-3.2V, If=60mA
Operating Temperature-20℃ ~ +70℃ (Wide Temperature)
Storage Temperature-30℃ ~ +80℃
Connection TypeCOG (FOG+BL), Serial/Parallel Interface
Outline Dimension71.00×48.00×4.90(mm)
Viewing Area65.50×38.00(mm)
Active Area60.78×32.94(mm)
Pin Number2PIN
Unspecified Tolerance±0.20mm
CertificationRoHS Compliant
Product Features
  • Standard 128×64 dot matrix, STN blue negative transmissive display with clear and stable visual effect
  • COG+FOG+BL compact design, 71.0×48.0×4.9mm outline size, easy for embedded installation and system integration
  • ST7567 dedicated driver chip, strong anti-interference performance and long service life
  • White LED backlight with 2.8-3.2V Vf and 60mA If, uniform brightness, low power consumption and high stability
  • Wide temperature adaptation (-20~70℃ operating, -30~80℃ storage), suitable for harsh industrial environments
  • Dual Serial/Parallel interface design (2PIN), simple circuit connection and strong compatibility with control systems
  • ±0.20mm high precision tolerance control, RoHS environmental certification, meet global export standards
Product Applications
  • Industrial control equipment and intelligent operation panels
  • Electronic measuring instruments, meters and precision testing equipment
  • Portable intelligent electronic products and small handheld devices
  • Smart home appliances and automotive electronic auxiliary display modules
  • Medical testing instruments and communication terminal equipment
  • Embedded system modules and industrial intelligent control terminals

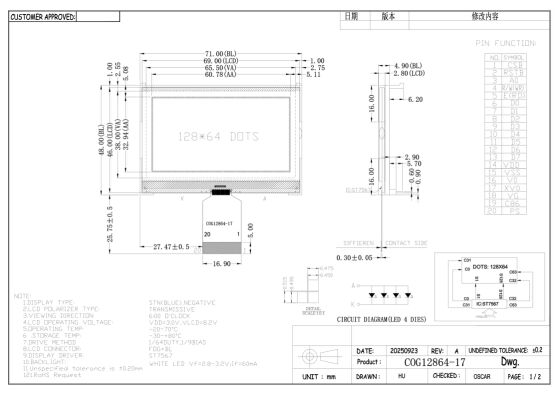

Dimension Drawing
COG12864-17 128x64 Dots STN Blue Negative Transmissive LCD Module with Wide Temperature Range 0
Product Application
COG12864-17 128x64 Dots STN Blue Negative Transmissive LCD Module with Wide Temperature Range 1
