COG12864-20 128x64 ST7565R LCD Module COG+BL 30PIN Yellow Green Backlight
  • name
  • name
  • name

COG12864-20 128x64 ST7565R LCD Module COG+BL 30PIN Yellow Green Backlight

MOQ: 10 pieces
Price: $2.7~7.83/pieces
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YMG12864SG-X08
Highlight:

30PIN COG 12864 LCD Module

,

Yellow Green Backlight LCD Module

,

Backlight COG 128x64 LCD Module

Product Description

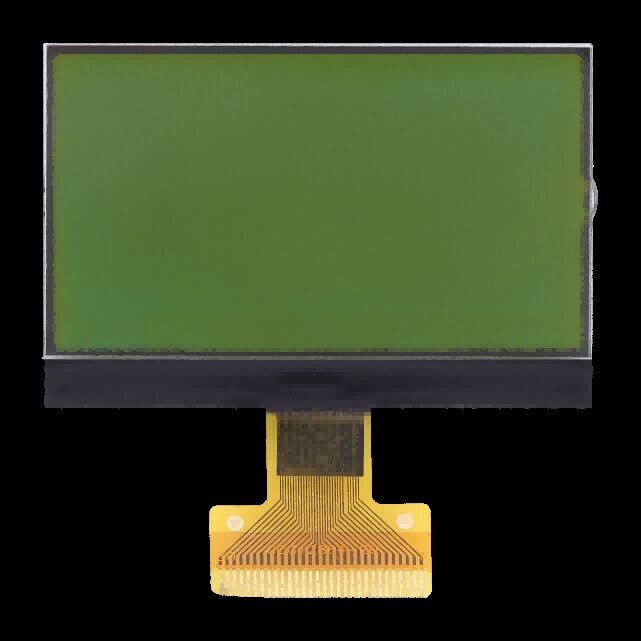

COG12864-20 128x64 ST7565R LCD Module COG+BL 30PIN Yellow Green Backlight
COG12864-20 STN Y-G Positive COG+BL 128×64 Dot Matrix LCD ST7565R Serial/Parallel This industrial grade COG12864-20 128×64 dot matrix LCD module adopts STN yellow-green positive transflective display structure and COG+BL packaging design, driven by ST7565R professional driver IC. It features 3.3V operating voltage, white LED backlight (VF=2.8~3.3V, IF=45mA), 6 o'clock viewing direction and wide temperature adaptation range (-20~70℃), with ultra-low power consumption, stable performance, RoHS compliance and compact outline (65.26×43.96×9.36mm), widely applied in industrial control, measuring instruments, smart devices, portable electronics and embedded display systems with high reliability requirements.
Product Specifications
Display Type STN (Y-G) Positive Transflective Monochrome LCD
Resolution 128 × 64 Dots
Module Model YMG12864SG-X08
Part No. COG12864-20
Driver IC ST7565R
Drive Mode 1/64 Duty, 1/9 Bias
Operating Voltage VDD=3.3V, VLCD=9.0V
Viewing Direction 6 O'Clock
Backlight White LED, Vf=2.8-3.3V, If=45mA
Operating Temperature -20℃ ~ +70℃ (Wide Temperature)
Storage Temperature -30℃ ~ +80℃
Connection Type COG (COG+BL), Serial/Parallel Interface
Outline Dimension 65.26×43.96×9.36(mm)
Viewing Area 60.50×33.42(mm)
Active Area 55.01×27.51(mm)
Pin Number 30PIN
Unspecified Tolerance ±0.20mm
Certification RoHS Compliant
Product Features
  • Standard 128×64 dot matrix, STN yellow-green positive transflective display with clear and stable visual effect
  • COG+BL compact design, 65.26×43.96×9.36mm outline size, easy for embedded installation and system integration
  • ST7565R dedicated driver chip, strong anti-interference performance and long service life
  • White LED backlight with 2.8-3.3V Vf and 45mA If, uniform brightness, low power consumption and high stability
  • Wide temperature adaptation (-20~70℃ operating, -30~80℃ storage), suitable for harsh industrial environments
  • Dual Serial/Parallel interface design (30PIN), simple circuit connection and strong compatibility with control systems
  • ±0.20mm high precision tolerance control, RoHS environmental certification, meet global export standards
  • Transflective display structure, excellent visibility in both bright outdoor and low-light indoor environments
Product Applications
  • Industrial control equipment and intelligent operation panels
  • Electronic measuring instruments, meters and precision testing equipment
  • Portable intelligent electronic products and small handheld devices
  • Smart home appliances and automotive electronic auxiliary display modules
  • Medical testing instruments and communication terminal equipment
  • Embedded system modules and industrial intelligent control terminals
  • Outdoor handheld devices requiring excellent transflective display performance

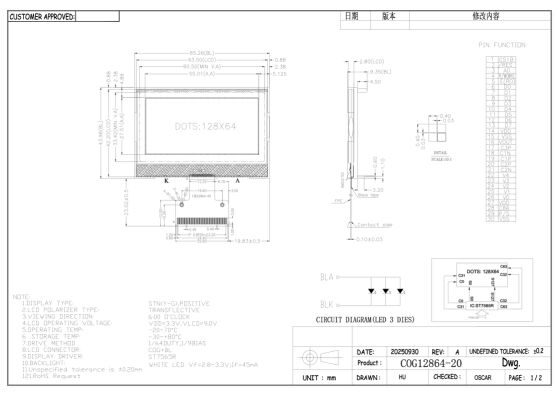

Dimension Drawing
COG12864-20 128x64 ST7565R LCD Module COG+BL 30PIN Yellow Green Backlight 0
Product Application
COG12864-20 128x64 ST7565R LCD Module COG+BL 30PIN Yellow Green Backlight 1
Cooperative Partner
COG12864-20 128x64 ST7565R LCD Module COG+BL 30PIN Yellow Green Backlight 2
Company Profile
Yingzhan Ying Technology was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company has always been committed to custom services, R&D, sales and after-sales services in the optoelectronic display industry.

The company's products include Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These products are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services and other fields, making it a supplier to many well-known clients.
