2.23 Inch 128x32 Dot Matrix OLED Module with SSD1305 Driver
  • name
  • name
  • name

2.23 Inch 128x32 Dot Matrix OLED Module with SSD1305 Driver

MOQ: 5 pieces
Price: $6.76~11.36/pieces
Standard Packaging: 5*5*3
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YOK0223MCB-J1
Highlight:

2.23 Inch OLED Module

,

128x32 Dot Matrix OLED Display Module

,

I2C/SPI Interface Dot Matrix OLED Module

Product Description
2.23 Inch 128x32 Dot Matrix OLED Module with SSD1305 Driver
This industrial-grade 2.23-inch PM OLED module features advanced COG (Chip On Glass) packaging design, driven by professional SSD1305 driver IC with dual I2C/SPI interface options (4/9-pin). It offers 128x32 dot matrix display with multi-color options (White, Blue, Yellow, Green), wide voltage input (3.3~5V), and excellent temperature adaptability (-30℃~+70℃ operating, -40℃~+80℃ storage). With compact structural dimensions (74.1mm*30.81mm*7.5mm max thickness) and built-in font library for SPI version, it is ideal for industrial control, portable electronics, smart devices, embedded display systems and various DIY electronic projects with diverse display and interface requirements.
Product Specifications
Display Type 2.23" PM OLED Module (Positive Mode)
Part Number GME223WBYG-49
Driver IC SSD1305
Connection Type COG (Chip On Glass), 24P 0.5mm FPC Socket
LCM Working Voltage (VCC) 3.3~5V DC
OLED Screen Voltage (Vdd) 2.4~3.5V DC
OLED Driving Voltage (Vop) 12~13V DC
Interface Type I2C (IIC) / SPI (SPI with font library)
Pin Number 4PIN / 9PIN Dual Options
Pixel Resolution 128x32 Pixels

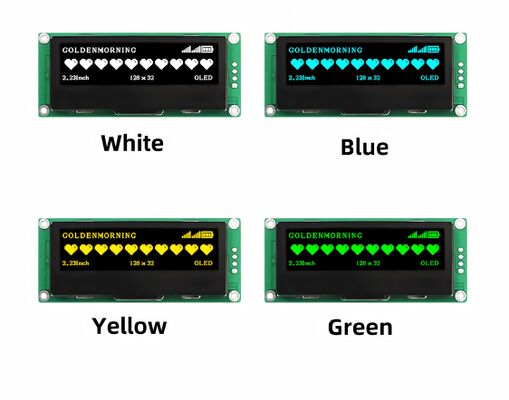

Display Color White, Blue, Yellow, Green (Multi-Color)
Operating Temperature -30℃ ~ +70℃ (Wide Temperature)
Storage Temperature -40℃ ~ +80℃

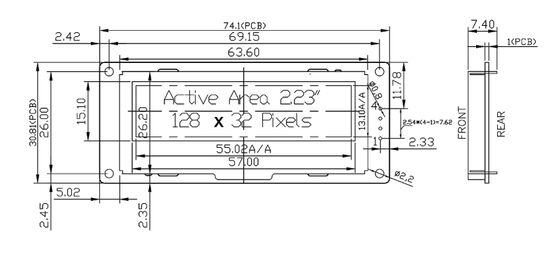

Module Dimension 74.1mm(L)*30.81mm(W)*7.5mm Max(T)
Viewing Area (V/A) 57.02mm(L)*15.10mm(W)
Active Area (A/A) 55.02mm(L)*13.10mm(W)
Dot Pitch 0.43mm(L)*0.41mm(W)
Dot Size 0.41mm(L)*0.39mm(W)
Unnoted Tolerance ±0.1mm
Compliance Standard RoHS (EU Environmental Instructions)
Product Features
  • 2.23-inch PM OLED display with 128x32 dot matrix, multi-color options (White/Blue/Yellow/Green) for diverse application scenarios
  • SSD1305 dedicated driver IC with stable performance, supporting professional COG packaging design for compact structure
  • Dual interface options (I2C/SPI) with 4/9-pin configuration, SPI version built-in font library for easy text display
  • Wide voltage input range (3.3~5V LCM, 2.4~3.5V OLED) for flexible power supply matching with various electronic systems
  • Excellent temperature adaptability (-30℃~+70℃ operating, -40℃~+80℃ storage) for harsh industrial and outdoor environments
  • Precise dot parameters (0.43mm pitch, 0.41mm size) for clear and sharp text and graphic display effects
  • Optimized viewing and active areas for efficient visual information transmission in a compact display size
  • 24P 0.5mm FPC socket connection for stable and reliable signal transmission and easy assembly
  • Compact overall dimensions (74.1mm*30.81mm*7.5mm) ideal for space-constrained embedded and portable devices
  • Strict mechanical tolerance (±0.1mm) for consistent product quality and accurate installation matching
  • Low power consumption characteristic of PM OLED technology, suitable for battery-powered portable and IoT devices
  • RoHS compliant materials and components, meeting EU environmental protection requirements for global market sales
  • Industrial-grade performance design, supporting long-term continuous and stable operation in complex working conditions
Product Applications
  • Industrial control equipment and intelligent operation panels with multi-color monochrome display requirements
  • Portable measuring instruments, precision electronic meters and handheld professional testing devices
  • Small handheld smart devices, industrial handheld terminals and compact embedded display modules
  • IoT sensor nodes, low-power smart monitoring equipment and industrial data display terminals
  • Automotive electronic auxiliary display components and vehicle-mounted small display screens
  • Smart home appliance control panels and multi-color display screens for home electronic devices
  • Medical portable devices, health monitoring equipment and professional medical display instruments
  • Consumer electronics, battery-powered small display products and digital peripheral equipment
  • Industrial meters and smart wearables with wide temperature adaptation and multi-color display needs
  • Professional test and measurement equipment and industrial automation control display terminals
  • DIY electronic projects, microcontroller development boards and open-source hardware display accessories
  • Smart card readers, portable payment terminals and small financial electronic display components
  • Outdoor electronic equipment and field detection instruments with harsh environment adaptation requirements
  • Smart toys, small electronic gadgets and portable audio-visual equipment with multi-color display functions
  • Instrument panels and status display modules for various industrial and consumer electronic products

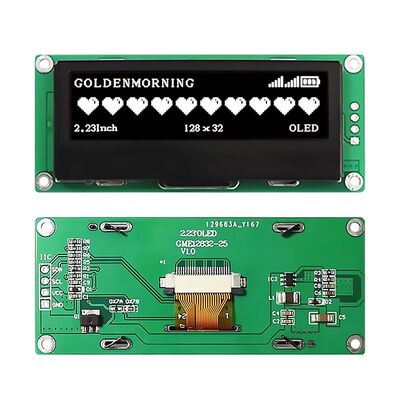

Product Image
2.23 Inch 128x32 Dot Matrix OLED Module with SSD1305 Driver 0
Application Examples
2.23 Inch 128x32 Dot Matrix OLED Module with SSD1305 Driver 1
Cooperative Partners
2.23 Inch 128x32 Dot Matrix OLED Module with SSD1305 Driver 2
Manufacturing Facility
2.23 Inch 128x32 Dot Matrix OLED Module with SSD1305 Driver 3
Payment & Logistics
2.23 Inch 128x32 Dot Matrix OLED Module with SSD1305 Driver 4
Company Profile
Yingzhan Ying Technology was founded in January 2018 and is located in Shenzhen, China--a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company has always been committed to custom services, R&D, sales and after-sales services in the optoelectronic display industry.

The company's products include OLED modules, Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These products are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services and other fields, making it a supplier to many well-known clients worldwide.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance, complying with the stated tolerance and technical parameters.
Do you supply samples?
Yes, we provide samples for evaluation, supporting small batch testing for your project development.
What is the delivery time?
Typically 7 working days after payment confirmation for both sample and bulk orders.
What is the minimum order quantity?
1 piece minimum order quantity, supporting individual purchase for prototyping and small projects.
What if we receive missing or defective items?
Please contact us immediately with product photos and order information, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including various size LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments for all orders, both sample and bulk.
What shipping methods do you offer?
DHL and China Post shipping services available, covering global delivery for your convenience.
