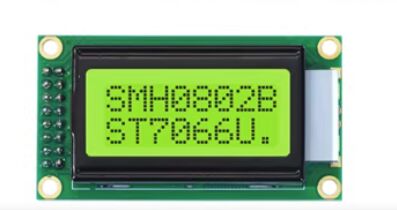

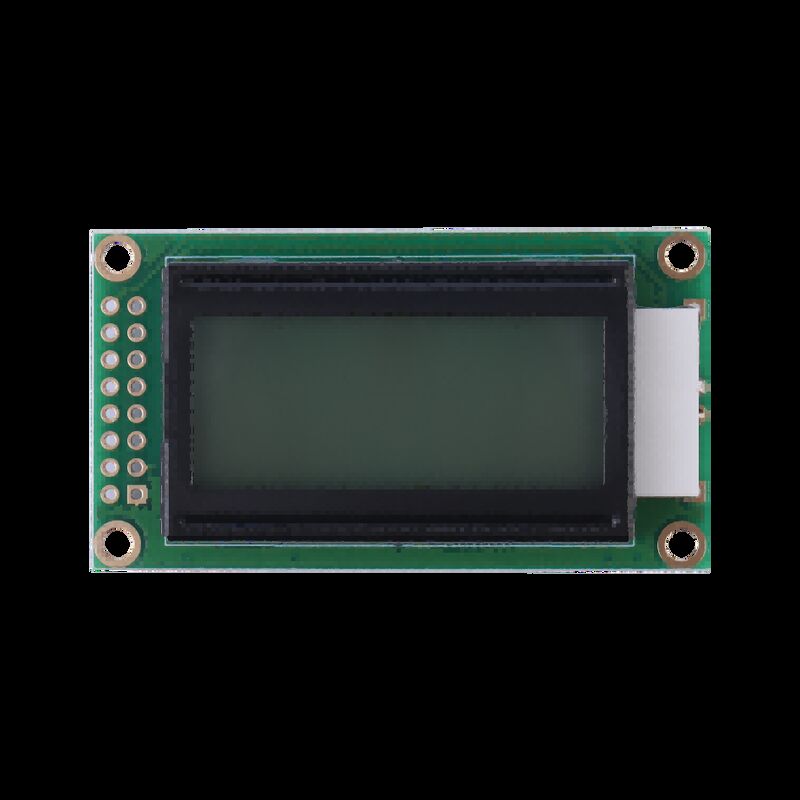

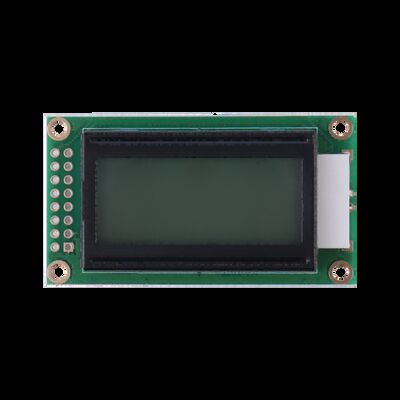

YMC0802SB-X05 Monochrome LCD Module with ST7066 Drive IC 3.0~5.0V Voltage
  • name
  • name
  • name
  • name

YMC0802SB-X05 Monochrome LCD Module with ST7066 Drive IC 3.0~5.0V Voltage

MOQ: 10 pieces
Price: $1.25~2.2/pieces
Standard Packaging: 10*7*5
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YMC0802SB-X05
Highlight:

ST7066 Drive IC Monochrome LCD Module

,

3.0~5.0V Drive Voltage Character LCD Display

,

8 Characters × 2 Lines Resolution STN LCD Module

Product Description
YMC0802SB-X05 Monochrome LCD Module with ST7066 Drive IC 3.0~5.0V Voltage
Industrial grade YMC0802SB-X05 (0802B) monochrome LCD module featuring STN yellow green transmissive display with professional ST7066 driver IC. This module operates at 3.0~5.0V drive voltage with 8 characters × 2 lines resolution and 8-bit parallel interface. Designed for wide temperature adaptability, it delivers stable performance with durable PCB structure for industrial control, measuring instruments, smart embedded systems, and electronic devices requiring high reliability and stable display performance.

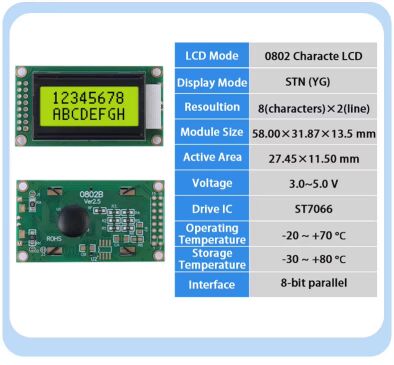

Product Specifications
Display Type STN (YG), Monochrome Character LCD
Module Model YMC0802SB-X05
Driver IC ST7066
Resolution 8 (characters) × 2 (line)
Drive Voltage 3.0~5.0V DC
Module Size 58.00 × 31.87 × 13.5 mm
Active Area 27.45 × 11.50 mm
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Interface 8-bit parallel

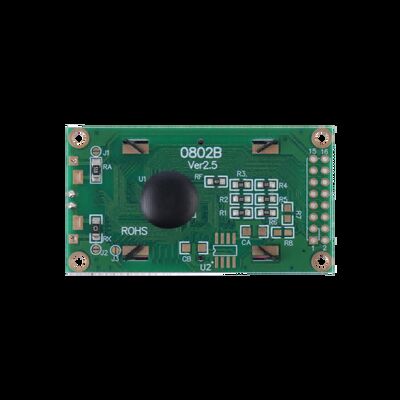

Structure Material PCB Board
Display Color STN Yellow Green Monochrome
Product Features
  • STN yellow green transmissive display with clear monochrome character display
  • Professional ST7066 driver IC for stable performance and strong anti-interference
  • 3.0~5.0V wide drive voltage compatible with various industrial power systems
  • 8 characters × 2 lines resolution ideal for compact display applications
  • 8-bit parallel interface for fast data transmission and easy system integration
  • Wide temperature adaptation (-20~70℃) suitable for harsh industrial environments
  • Compact module size (58.00×31.87×13.5 mm) perfect for space-limited designs
  • Durable PCB structure with strong mechanical stability and long service life
  • Broad storage temperature range (-30~80℃) for convenient transportation
  • RoHS compliant meeting global environmental protection requirements
Product Applications
  • Industrial control equipment and operation display panels
  • Electronic measuring instruments and precision testing equipment
  • Embedded control systems and smart industrial terminal devices
  • Small electronic equipment and portable test instruments
  • Automotive auxiliary electronic devices and on-board display modules
  • Smart home control panels and low-power intelligent display equipment
  • Communication terminal accessories and industrial sensor display modules
  • Various small digital equipment with monochrome character display needs
Technical Documentation
YMC0802SB-X05 Monochrome LCD Module with ST7066 Drive IC 3.0~5.0V Voltage 0
Product Application Examples
YMC0802SB-X05 Monochrome LCD Module with ST7066 Drive IC 3.0~5.0V Voltage 1
Various Types
YMC0802SB-X05 Monochrome LCD Module with ST7066 Drive IC 3.0~5.0V Voltage 2
Manufacturing Facility
YMC0802SB-X05 Monochrome LCD Module with ST7066 Drive IC 3.0~5.0V Voltage 3
Shipping and Delivery
YMC0802SB-X05 Monochrome LCD Module with ST7066 Drive IC 3.0~5.0V Voltage 4
Company Profile
Yingzhan Ying Technology was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry.
Our product portfolio includes OLED modules, Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These products are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services and other fields, serving many well-known clients worldwide.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance, complying with the stated tolerance and technical parameters.
Do you supply samples?
Yes, we provide samples for evaluation, supporting small batch testing for your project development.
What is the delivery time?
Typically 7 working days after payment confirmation for both sample and bulk orders.
What is the minimum order quantity?
1 piece minimum order quantity, supporting individual purchase for prototyping and small projects.
What if we receive missing or defective items?
Please contact us immediately with product photos and order information, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including various size LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments for all orders, both sample and bulk.
What shipping methods do you offer?
DHL and China Post shipping services available, covering global delivery for your convenience.
