YZY PC173H 17.3 Inch H Type Industrial Panel PC with IP65 Fanless Design and Wide Temperature Range for HMI Applications
  • name
  • name
  • name

YZY PC173H 17.3 Inch H Type Industrial Panel PC with IP65 Fanless Design and Wide Temperature Range for HMI Applications

MOQ: 300
Price: $248-288/pieces
Standard Packaging: 590×445×100mm(5.7KG)
Delivery Period: 10 work days
Payment Method: T/T
Supply Capacity: 5K/Month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE/Rohs...
Model Number
PC173H
Document
PC173H DataSheet.pdf
Type:
Industrial Computer
Display Size:
10.4 Inch
Supplier Type:
Factory
Mounting Type:
Embedded
Packing Dimensions:
460 ×445 × 100mm
Net Weight:
4.8KG
Gross Weight:
5.7KG
Highlight:

17.3 Inch Industrial Panel PC

,

IP65 Fanless Industrial Panel PC

,

Wide Temperature Range HMI Industrial Computer

Product Description
YZY PC173H 17.3 Inch H Type Industrial Panel PC
Embedded Touch IP65 Fanless HMI Industrial Computer designed for robust performance in demanding industrial environments.
YZY PC173H 17.3 Inch H Type Industrial Panel PC with IP65 Fanless Design and Wide Temperature Range for HMI Applications 0
Product Features
  • Precision CNC Milling: High-precision machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life
  • Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design enhances surface hardness and anti-interference capability
  • Full Aluminum Construction: IP65-rated front panel for water and dust protection with excellent electromagnetic compatibility (EMC)
  • Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions
  • Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination, compatible with 5-wire resistive touch
  • Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness
  • I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options
  • Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input
  • Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations available
  • 24/7 Operation: Designed for continuous use with robust performance and long service life

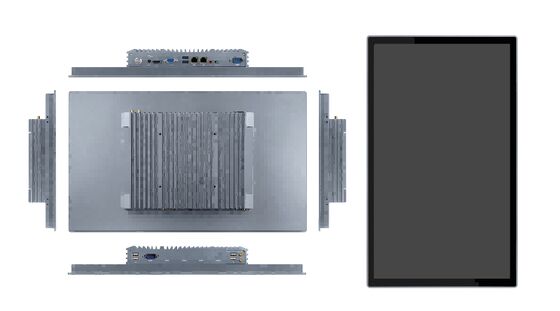

Product Six Views
YZY PC173H 17.3 Inch H Type Industrial Panel PC with IP65 Fanless Design and Wide Temperature Range for HMI Applications 1

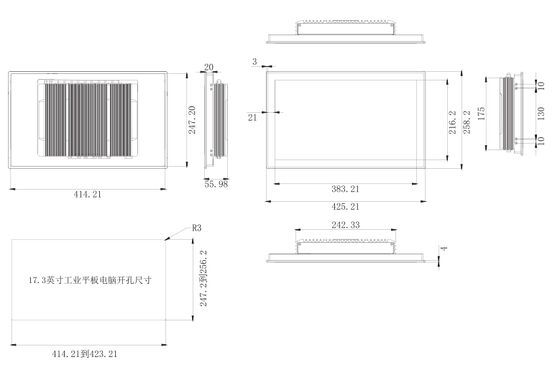

Product Dimensions
YZY PC173H 17.3 Inch H Type Industrial Panel PC with IP65 Fanless Design and Wide Temperature Range for HMI Applications 2
I/O Interface Configuration
YZY PC173H 17.3 Inch H Type Industrial Panel PC with IP65 Fanless Design and Wide Temperature Range for HMI Applications 3 YZY PC173H 17.3 Inch H Type Industrial Panel PC with IP65 Fanless Design and Wide Temperature Range for HMI Applications 4
Extensible Interface
YZY PC173H 17.3 Inch H Type Industrial Panel PC with IP65 Fanless Design and Wide Temperature Range for HMI Applications 5
Product Specifications
  • CPU: J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
  • Memory: 4G/8G/16G/32G/64G
  • Storage: 64G/128G/256G/512G/1TB/2TB
  • Touch Type: Multi-point Capacitive / 5-Wire Resistive
  • Touch Driver Support: Windows 7/8/10, Linux, Android
  • LCD Display: 17.3" XGA TFT (1024*768)
  • Active Area: 383.21mm*216.2mm
  • Viewing Angle: 89° (L/R/T/B)
  • Brightness: 350 cd/m²
  • I/O Interfaces: 2*RJ-45, 2*USB3.0, 2*USB2.0, 1*RS232/485, 5*RS232, Mini-PCIe slot
  • Dimensions: 425.21*258.2*55.98mm
  • Power Input: DC 12V (9-30V optional)
  • Operating Temp: -20°C to 60°C (expandable to -40°C to 80°C)
Installation Methods
Embedded Snap-In Mounting
1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.
YZY PC173H 17.3 Inch H Type Industrial Panel PC with IP65 Fanless Design and Wide Temperature Range for HMI Applications 6
2. Tighten the long screws and nuts onto the snap fasteners.
YZY PC173H 17.3 Inch H Type Industrial Panel PC with IP65 Fanless Design and Wide Temperature Range for HMI Applications 7
3. Four clips are fixed at the threaded hole positions on both sides.
YZY PC173H 17.3 Inch H Type Industrial Panel PC with IP65 Fanless Design and Wide Temperature Range for HMI Applications 8
4. Tighten the long screws to secure the equipment in place.
YZY PC173H 17.3 Inch H Type Industrial Panel PC with IP65 Fanless Design and Wide Temperature Range for HMI Applications 9
Desktop Mounting
YZY PC173H 17.3 Inch H Type Industrial Panel PC with IP65 Fanless Design and Wide Temperature Range for HMI Applications 10
Cantilever Mounting
YZY PC173H 17.3 Inch H Type Industrial Panel PC with IP65 Fanless Design and Wide Temperature Range for HMI Applications 11
Packing List
No. Item QTY
1 Industrial Panel PC 1 unit
2 Power Adapter 1 unit
3 3-pin 5.08 Power Terminal Plug (optional) 1 unit
4 Embedded Snap-In Kit (optional) 1 set
5 Wall-Mount Bracket (Optional) 1 unit
6 Certificate of Conformity 1 sheet
7 Warranty Card 1 sheet
8 User Manual 1 copy
Ordering Information
No. Name Description
1 Ethernet Port Default single port; optional dual or quad ports
2 Serial Port Default 2 * RS232; optional 6 * RS232/RS485
3 USB Default 4 * USB (2 * USB 2.0, 2 * USB 3.0); optional 8 * USB
4 GPIO Optional 4 input / 4 output
Safety Warnings
1. This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.
2. Do not place in humid environments to prevent condensation and component damage.
3. Avoid prolonged direct sunlight or high UV environments to prevent screen damage.
4. Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.
5. Do not disassemble or repair the device yourself due to high voltage risks.
Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
