PRODUCTS DETAILS

Home > Products >

YZY PC150H 15 Inch Industrial Computer with IP65 Fanless Design and 350 Cd/M2 Brightness for Industrial Monitoring

Products

YZY PC150H 15 Inch Industrial Computer with IP65 Fanless Design and 350 Cd/M2 Brightness for Industrial Monitoring

MOQ:	300
Price:	$180-232/pieces
Standard Packaging:	590×445×100mm4.8KG
Delivery Period:	10 work days
Payment Method:	T/T
Supply Capacity:	5K/Month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

Guangdong, China

Brand Name

Certification

CE/ROHS ..

Model Number

PC150H

Document

Type:

Industrial Computer

Display Size:

15 Inch

Supplier Type:

Factory

Mounting Type:

Embedded

Packing Dimensions:

590×445×100mm

Net Weight:

4.1KG

Gross Weight:

4.8KG

Highlight:

15 Inch Industrial Computer

IP65 Fanless Industrial Panel PC

350 Cd/M2 HMI

Product Description

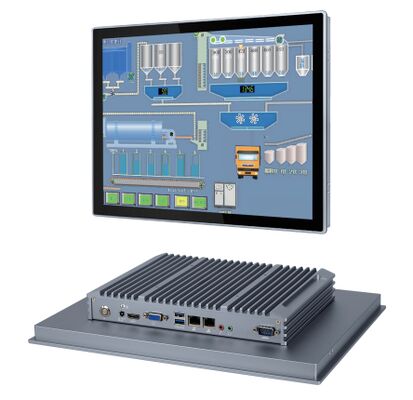

YZY PC150H 15 Inch Industrial Computer

IP65 Fanless HMI with 350 Cd/M² Industrial Touch Panel PC

Product Overview

The PC150H 15 Inch H Type Industrial Computer is an embedded touch panel PC with IP65 fanless HMI designed for industrial monitoring applications. Featuring CNC precision engraving construction with seamless, screwless design, this industrial tablet offers multi-touch capability and robust performance for demanding environments.

Series Configuration Options

Multiple display sizes: 10.1/10.4/11.6/12.1/13.3/15/15.6/17/17.3/18.5/19/21.5/23.8 inches
Various CPU options: J6412/N97/13/15/17 processors
Operating system support: Windows 7/Windows 10/Linux/Vxworks/QNX

Key Product Features

Precision CNC Milling: High-precision machining ensures superior sealing, reduced dust intrusion, and enhanced equipment stability and service life
Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design for improved surface hardness and anti-interference capability
Full Aluminum Construction: IP65-rated front panel providing water and dust protection with excellent electromagnetic compatibility
Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions
Capacitive Touch: Full-flat, multi-point projected capacitive touch supporting full lamination, compatible with 5-wire resistive touch
Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness
I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options
Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input
Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations
24/7 Operation: Designed for continuous use with robust performance and long service life

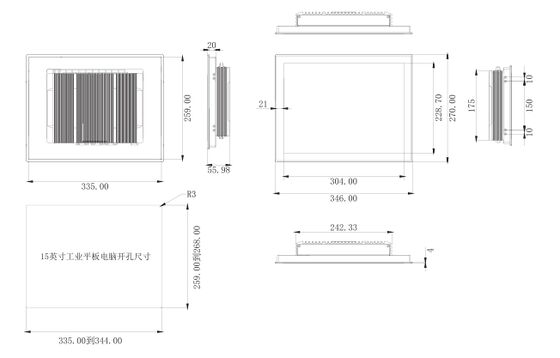

Product Views & Dimensions

Interface Configuration

Technical Specifications

Specification	Details
CPU	J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory	4G/8G/16G/32G/64G
Storage	64G/128G/256G/512G/1TB/2TB
Touch Type	Multi-point Capacitive / 5-Wire Resistive
Touch Driver Support	Windows 7/8/10, Linux, Android
LCD Display	15" XGA TFT (1280*1024)
Active Area	304mm×196.7mm
Viewing Angle	89° (L/R/T/B)
Brightness	350 cd/m²
I/O Interfaces	2×RJ-45, 2×USB3.0, 2×USB2.0, 1×RS232/485, 5×RS232, Mini-PCIe slot
Dimensions	346.00×270.00×55.98mm
Power Input	DC 12V (9-30V optional)
Operating Temperature	-20°C to 60°C (expandable to -40°C to 80°C)

Installation Methods

Embedded Snap-In Mounting

1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.

2. Tighten the long screws and nuts onto the snap fasteners.

3. Four clips are fixed at the threaded hole positions on both sides.

4. Tighten the long screws to secure the equipment in place.

Alternative Mounting Options

Packing List

No.	Item	Quantity
1	15 INCH Industrial Panel PC	1 unit
2	Power Adapter	1 unit
3	3-pin 5.08 Power Terminal Plug (optional)	1 unit
4	Embedded Snap-In Kit (optional)	1 set
5	Wall-Mount Bracket (Optional)	1 unit
6	Certificate of Conformity	1 sheet
7	Warranty Card	1 sheet
8	User Manual	1 copy

Ordering Information

No.	Name	Description
1	Ethernet Port	Default single port; optional dual or quad ports
2	Serial Port	Default 2 × RS232; optional 6 × RS232/RS485
3	USB	Default 4 × USB (2 × USB 2.0, 2 × USB 3.0); optional 8 × USB
4	GPIO	Optional 4 input / 4 output

Safety Warnings & Operating Guidelines

This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.
Do not place in humid environments to prevent condensation and component damage.
Avoid prolonged direct sunlight or high UV environments to prevent screen damage.
Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.
Do not disassemble or repair the device yourself due to high voltage risks.

Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
