YVO0070VLM‑H03 7.0 Inch IPS TFT LCD Module

1024×600 4‑Lane MIPI Interface,16.7M Colors,1000cd/m² High Brightness Industrial Display Screen

Product Introduction

YVO0070VLM‑H03 is a 7.0‑inch IPS TFT‑LCD module with resolution 1024×600, adopting 4‑Lane MIPI DSI interface. It supports 16.7M true colors, 1000cd/m² typical high brightness and normally‑black display mode.

Module dimension is 164.8×100×3.5mm, equipped with white LED backlight of 30000‑hour lifespan. Operating temperature is ‑10℃~50℃, suitable for industrial control, smart terminal and outdoor‑readable embedded equipment.

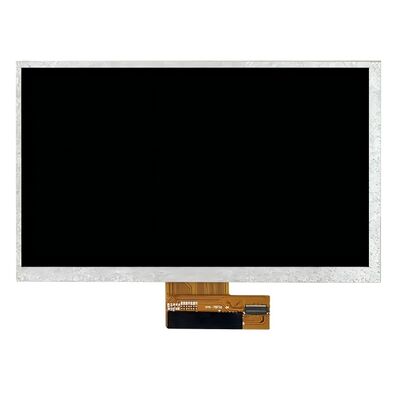

Front View

YVO0070VLM‑H03 front view

Clear display surface, active area and outer frame outline for visual inspection and front assembly reference.

Key Advantages

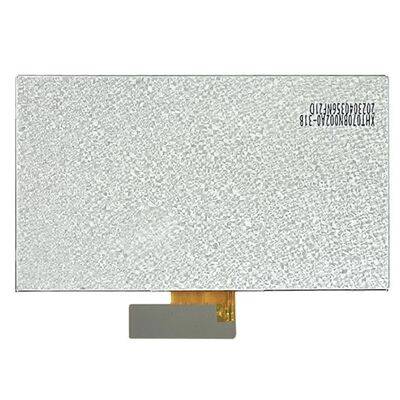

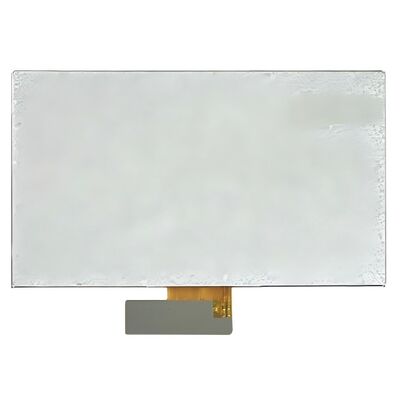

Back View

YVO0070VLM‑H03 back view

Rear side with shielding layer and FPC connector area, helpful for PCB layout and rear assembly design.

Main Technical Parameters

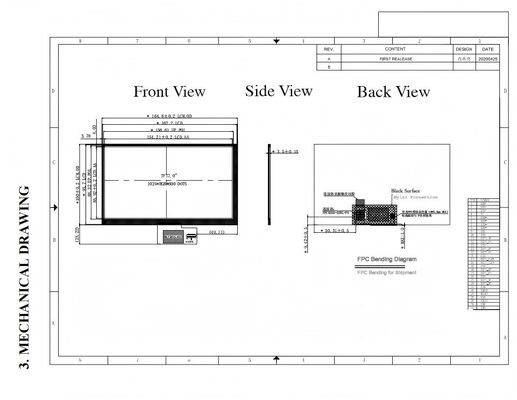

Mechanical Dimension Drawing

 Mechanical dimension drawing

Includes module outline, mounting area, FPC position and dimensional tolerances for casing and structural design reference.

Customization Solutions

Application Fields

YVO0070VLM‑H03 is suitable for industrial HMI, smart control panels, monitoring terminals and other embedded display applications that require high brightness and stable performance.

Industrial HMI application

Used for industrial human‑machine interfaces and equipment operation panels, displaying parameters, status and interactive UI.

 Smart terminal application

Suitable for intelligent monitoring terminals, portable industrial devices and auxiliary display units in harsh ambient light.

Handling Precautions

• Supply power according to the recommended voltage in the datasheet.
• Take anti‑static protection during assembly, soldering and handling.
• Do not bend FPC sharply or apply heavy pressure to the display surface.
• Unauthorized disassembly will void the warranty.
• Store in a dry environment away from moisture and corrosive gas.
