YVO0430FER‑H01 4.3 Inch TFT LCD Module

800RGB×480 WVGA,24‑Bit Parallel RGB Interface,300cd/m² Brightness Industrial Display Screen

Product Introduction

YVO0430FER‑H01 is a 4.3‑inch transmissive TFT‑LCD module with WVGA 800RGB×480 resolution, adopting 24‑bit Parallel RGB interface and HX8664/HX8264 driver IC.

Typical brightness 300cd/m², full viewing angle. Module dimension 105.50×67.20×3.0mm. Operating temperature ‑20℃~70℃, RoHS compliant, widely used for industrial HMI and portable embedded devices.

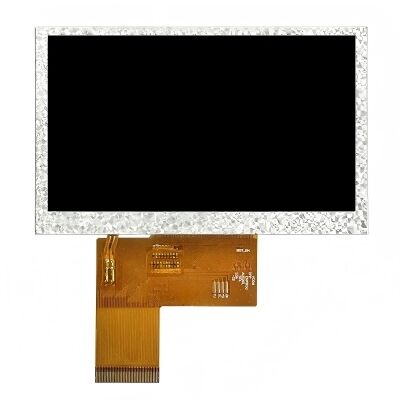

Front View

 YVO0430FER‑H01 front view

Display surface and outer frame, reference for front‑side assembly and visual inspection.

Key Advantages

Back View

YVO0430FER‑H01 back view

Rear side with driver IC, FPC connector area, for PCB layout and rear assembly reference.

Main Technical Parameters

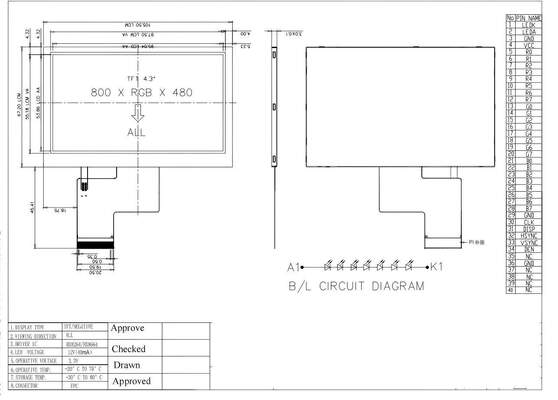

Mechanical Dimension Drawing

Mechanical dimension drawing

Module outline, FPC position and dimensional tolerances, used for housing and structural design reference.

Application Fields

4.3‑inch WVGA TFT display with wide temperature performance, stable RGB parallel signal input. Widely adopted in industrial human‑machine interaction and portable embedded equipment.

Industrial HMI control panel

Used for industrial HMI operation panel, showing device parameters, status information and interactive UI interface.

 Portable industrial instrument

Fit for handheld measuring instruments, smart embedded terminals and automation auxiliary display units.

Handling Precautions

• Follow datasheet power‑on sequence for RGB signal and power supply.
• Take anti‑static protection during assembly, soldering and handling.
• Do not sharply bend FPC or apply heavy pressure on LCD glass surface.
• Unauthorized disassembly will void product warranty.
• Store in dry environment, avoid moisture and corrosive gas.
