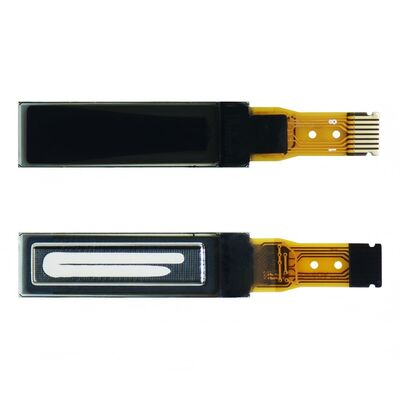

0.69 Inch OLED Display Module with 96×16 Resolution and I2C Interface
  • name
  • name
  • name

0.69 Inch OLED Display Module with 96×16 Resolution and I2C Interface

MOQ: 1000 pieces
Price: $2.6/pieces 100-499 pieces
Standard Packaging: 8*8*4
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000Pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
E069XI-W-C08-04
Type:
OLED Display
Display Size:
0.69 Inch
Supplier Type:
Manufacturer
Resolution:
96 X 16
Active Area:
17.26mm * 3.18mm
Outline Dimension:
24.0mm * 6.9mm * 1.25mm
Driver IC:
SSD1312
Highlight:

0.69 inch OLED Display Module

,

96×16 resolution OLED Display Panel

,

I2C Interface SSD1312 Display Module

Product Description
0.69 Inch OLED Display Module with 96×16 Resolution and I2C Interface
The 0.69-inch OLED display module is a high-performance passive matrix display featuring monochrome white output and 1/16 drive duty. Its compact, precision-engineered design ensures stable drive control, while the optimized mechanical structure simplifies integration into space-constrained electronic devices.
Key Features
96*16 high-definition resolution with 0.18*0.20mm pixel pitch for sharp text and pattern display
17.26*3.18mm active display area, tailored for small-screen applications
Monochrome white display with reliable passive matrix technology
I2C interface for universal compatibility with mainstream control systems
Ultra-compact module size (24.0*6.9*1.25mm) to save installation space
Wide operating temperature range (-20℃ to +70℃) for diverse environments
RoHS compliant, meeting international environmental safety standards
Technical Specifications
Display Type 0.69" OLED
Display Mode Passive Matrix
Display Color Monochrome (White)
Resolution 96 * 16
Driver IC SSD1312
Drive Duty 1/16 Duty
Module Size 24.0(W) * 6.9(H) * 1.25(T) mm
Active Area 17.26(W) * 3.18(H) mm
Pixel Pitch 0.18(W) * 0.20(H) mm
Interface I2C
Operating Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃
RoHS Compliance YES
Applications
Ideal for space-constrained devices including portable instruments, smart sensors, industrial controllers, and Arduino-based projects. The compact form factor provides flexibility for product structure design, while stable performance ensures reliable operation in various scenarios.
Reliability & Performance
This module adopts a robust passive matrix design and undergoes strict quality control, ensuring long-term stable operation without performance degradation. Its wide temperature adaptability and precise mechanical dimensions make it a reliable choice for small-screen display needs, with low integration failure risk.
Module Dimensions
0.69 Inch OLED Display Module with 96×16 Resolution and I2C Interface 0
Various Application Scenarios
0.69 Inch OLED Display Module with 96×16 Resolution and I2C Interface 1

0.69 Inch OLED Display Module with 96×16 Resolution and I2C Interface 2

Manufacturing Technique
0.69 Inch OLED Display Module with 96×16 Resolution and I2C Interface 3

Packaging & Shipping
0.69 Inch OLED Display Module with 96×16 Resolution and I2C Interface 4
