NV140FHM-N62 14.0 Inch Full HD TFT LCD Panel with 1920x1080 Resolution and 2-lane eDP Interface for Notebook Display
  • name
  • name

NV140FHM-N62 14.0 Inch Full HD TFT LCD Panel with 1920x1080 Resolution and 2-lane eDP Interface for Notebook Display

MOQ: 100 pcs
Price: $27.99-44.99 Piece
Payment Method: ,T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
BOE
Certification
CE，RoHS
Model Number
NV140FHM-N62
Highlight:

14.0 Inch TFT LCD Panel

,

Full HD 1920x1080 Notebook Display

,

2-lane eDP Interface LCD Screen

Product Description
NV140FHM-N62 14.0 Inch FHD TFT LCD Panel
14.0-inch Full HD eDP TFT LCD panel with 1920×1080 resolution, 2-lane eDP interface, and 16.7 million color support. Ideal for notebook display integration and OEM replacement projects.
Product Overview
NV140FHM-N62 V8.0 is a 14.0-inch TFT LCD module featuring Full HD resolution 1920×1080 and a 2-lane eDP interface. It supports 16.7M colors with 6+2(FRC) color depth and includes an on-board LED driving circuit, making it suitable for notebook display integration and OEM replacement projects. This model does not include touch functionality.
Key Features
  • 14.0-inch TFT LCD module for notebook display integration
  • Full HD 1920×1080 resolution for sharp and detailed images
  • 2-lane eDP interface with stable high-speed signal transmission
  • 16.7M colors with 6+2(FRC) color depth for vivid display output
  • Anti-glare surface coating reduces reflection in daily use
  • Built-in LED driving circuit simplifies system design
  • Thin and lightweight module design for compact devices
  • Supports OEM projects and bulk supply for long-term procurement

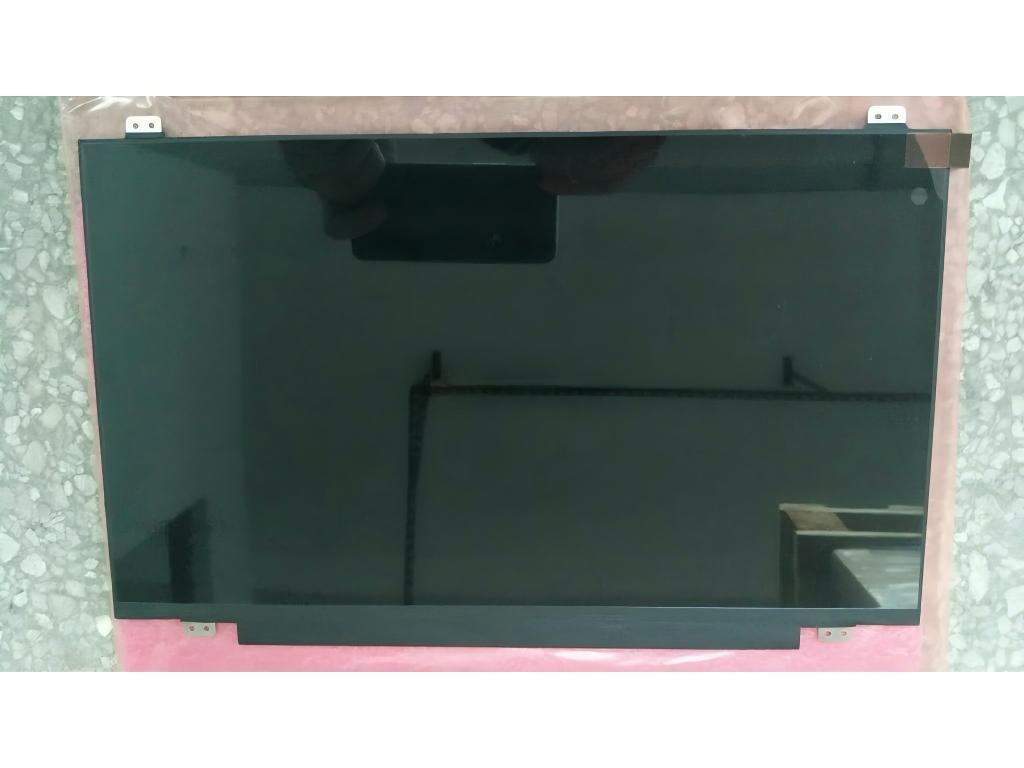

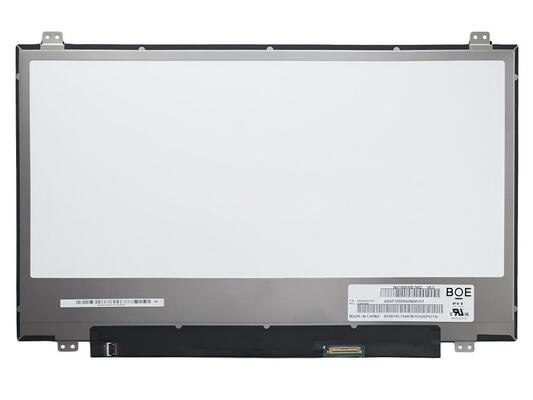

Product Display
NV140FHM-N62 14.0 Inch Full HD TFT LCD Panel with 1920x1080 Resolution and 2-lane eDP Interface for Notebook Display 0
Technical Specifications
Display Size 14.0 Inch
Resolution 1920 × 1080 (FHD)
Display Area 309.312 × 173.988 mm
Outline Size 315.71 × 196.54 × 2.4 mm (Max, With PCB)
Brightness 300 cd/m² (Typ.)
Display Colors 16.7M Colors (6+2 FRC)
Signal Interface eDP 1.3 Compatible (2 Lane)
Operating Temperature 0 ~ +50 °C
Storage Temperature -20 ~ +60 °C
Application Scenarios
  • Notebook laptop screen replacement for repair and refurbishment
  • OEM notebook manufacturing and assembly projects
  • Laptop spare parts distributors and bulk procurement
  • Enterprise and school laptop maintenance programs
  • Embedded devices requiring Full HD eDP display integration
  • Custom portable terminals and lightweight computing equipment
Company Profile
NV140FHM-N62 14.0 Inch Full HD TFT LCD Panel with 1920x1080 Resolution and 2-lane eDP Interface for Notebook Display 1 NV140FHM-N62 14.0 Inch Full HD TFT LCD Panel with 1920x1080 Resolution and 2-lane eDP Interface for Notebook Display 2 NV140FHM-N62 14.0 Inch Full HD TFT LCD Panel with 1920x1080 Resolution and 2-lane eDP Interface for Notebook Display 3
Extensive Inventory
Over 1,000,000 self-owned stock items including Raspberry Pi boards, LCD monitors, touchscreens, cases, cables, and accessories from leading brands.
Competitive Pricing
Significant price advantages to reduce purchasing costs and save valuable time. We wholesale and distribute new, original, well-known brand electronic components worldwide.
Quality Assurance
Equipped with internationally advanced electronic component testing equipment and scientific storage systems to ensure consistent product quality.
Expert Team
Elite professionals with over 20 years of industry experience and deep understanding of international market trends.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
