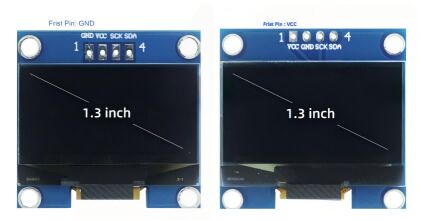

1.3 Inch 128x64 Dot Matrix OLED Module CH1116 COG Design I2C 4-Pin 3.3~5V
  • name
  • name
  • name

1.3 Inch 128x64 Dot Matrix OLED Module CH1116 COG Design I2C 4-Pin 3.3~5V

MOQ: 5 pieces
Price: $2.18-2.99/pieces
Standard Packaging: 10*10*5
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YOK0130MGB-J1
Highlight:

1.3 inch OLED display module

,

CH1116 I2C OLED module

,

4-pin dot matrix OLED

Product Description
1.3 Inch 128x64 Dot Matrix OLED Module CH1116 COG Design I2C 4-Pin 3.3~5V
This industrial grade 1.3-inch OLED module adopts positive mode and advanced COG (Chip On Glass) packaging design, driven by CH1116 professional driver IC. It features 3.3~5V wide operating voltage, 128×64 dot matrix resolution, monochrome display, I2C interface (4-pin: VCC, GND, SCL, SDA), and excellent wide temperature adaptation range (-40~70℃ operating, -40~85℃ storage), with compact module dimension (35.5mm(L)*32mm(W)*11.3mm(T) Max), ultra-low power consumption, stable performance and high reliability, widely applied in industrial control, portable electronics, smart devices, measuring instruments and embedded display systems with strict space and reliability requirements.
Product Specifications
Display Type Positive Monochrome OLED Module
Model No. YOK0130MGB-J1
Part No. GME013WB-479
Resolution 128 × 64 Dots (1.3")
Driver IC CH1116
Connection Type COG (Chip On Glass)
Interface Type I2C (IIC, Serial Interface)
Pin Number & Function 4PIN (1-VCC, 2-GND, 3-SCL, 4-SDA)
Operating Voltage (VCC) 3.3~5V DC
Duty Cycle 1/64 Duty
Operating Temperature -40℃ ~ +70℃ (Wide Temperature)
Storage Temperature -40℃ ~ +85℃
Viewing Direction All (Full Viewing Angle)
OLED Mode Positive
Module Dimension 35.5mm(L) × 32mm(W) × 11.3mm(T) Max
PCB Dimension 35.5mm(L) × 32mm(W)
Viewing Area (V/A) 31.42mm(L) × 16.7mm(W)
Active Area (A/A) 29.42mm(L) × 14.7mm(W)
Dot Pitch 0.23mm(L) × 0.23mm(W)
Dot Size 0.21mm(L) × 0.21mm(W)
Product Features
  • 1.3-inch compact size with 128×64 dot matrix resolution, clear monochrome display effect and high contrast ratio
  • COG packaging design, 35.5*32*11.3mm module dimension, perfect for space-constrained embedded applications
  • CH1116 dedicated driver chip, 1/64 duty drive mode, strong anti-interference performance, stable operation and long service life
  • I2C (IIC) serial interface with 4-pin design (VCC, GND, SCL, SDA), simple circuit connection and high compatibility
  • 3.3~5V wide operating voltage, adaptable to different power supply scenarios of industrial and consumer electronics
  • Extreme wide temperature range (-40~70℃ operating, -40~85℃ storage), reliable performance in harsh industrial environments
  • All-direction viewing direction, no visual dead angle for operation and observation
  • Positive OLED mode, stable display effect under various ambient light conditions
  • Precise mechanical parameters (0.23*0.23mm dot pitch, 0.21*0.21mm dot size), ensuring stable assembly and consistent product quality
  • Low power consumption and high reliability, ideal for portable and battery-powered electronic devices
Product Applications
  • Industrial control equipment and intelligent operation panels
  • Portable measuring instruments and precision electronic meters
  • Small handheld smart devices and wearable electronic products
  • Embedded system display modules and IoT terminal devices
  • Automotive electronic auxiliary display components and vehicle-mounted small displays
  • Smart home appliance control panels and mini display screens
  • Medical portable devices and health monitoring equipment
  • Consumer electronics and battery-powered display products

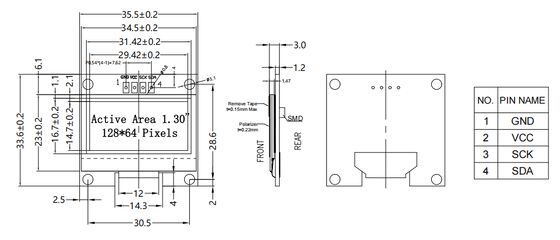

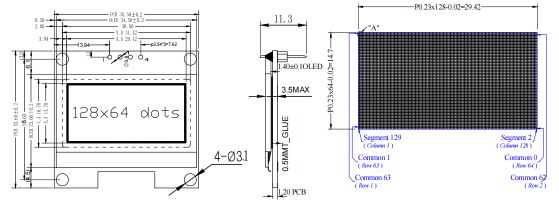

Dimension Drawing
1.3 Inch 128x64 Dot Matrix OLED Module CH1116 COG Design I2C 4-Pin 3.3~5V 0
Product Application
1.3 Inch 128x64 Dot Matrix OLED Module CH1116 COG Design I2C 4-Pin 3.3~5V 1
Cooperative Partner
1.3 Inch 128x64 Dot Matrix OLED Module CH1116 COG Design I2C 4-Pin 3.3~5V 2
Our Factory
1.3 Inch 128x64 Dot Matrix OLED Module CH1116 COG Design I2C 4-Pin 3.3~5V 3

Payment and Shiping
1.3 Inch 128x64 Dot Matrix OLED Module CH1116 COG Design I2C 4-Pin 3.3~5V 4
Company Profile
Yingzhan Ying Technology was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company has always been committed to custom services, R&D, sales and after-sales services in the optoelectronic display industry.

The company's products include Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These products are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services and other fields, making it a supplier to many well-known clients worldwide.
Frequently Asked Questions
1. How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
2. Do you supply samples?
Yes, we provide samples for evaluation.
3. What is the delivery time?
Typically 7 working days after payment confirmation.
4. What is the minimum order quantity?
1 piece minimum order quantity.
5. What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
6. What are your main products?
Comprehensive range including, LCD modules, touch modules, LCD panels, FPC boards and various optoelectronic materials for industrial control, medical equipment and smart devices.
7. What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
8. What shipping methods do you offer?
DHL and China Post shipping services available.
