A 5‑inch projected capacitive touch panel for integration with a compatible LCD and embedded control system. Supports 10‑point touch through a 6‑pin IIC interface.
G+G StructureGT91110‑Point Touch6‑Pin IIC
PRODUCT TYPE
Capacitive Touch Panel
YZY MODEL
YT0500C1I‑Q1
INTERFACE
IIC · 6 Pin
TOUCH CONTROLLER
GT911
CORE FEATURES
Built for touch integration
G+G
Glass Structure
Glass cover lens and glass sensor structure with a black cover lens.
10
Touch Points
Supports up to ten simultaneous touch points for interactive control.
>6H
Surface Hardness
Designed to improve scratch resistance during normal operation.
≥86%
Transmittance
High optical transmittance with haze controlled to ≤5%.

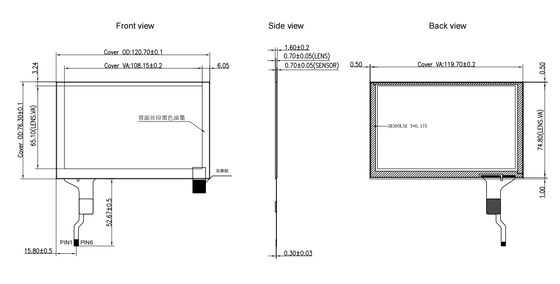

MECHANICAL DATA
Compact 5‑inch format
Outline Size120.70 × 76.30 mm
Active Area109.15 × 66.10 mm
Viewing Area108.15 × 65.10 mm
Overall Thickness1.60 ±0.20 mm
XY Channel16 × 10
6‑PIN IIC CONNECTION
Straightforward system interface
The touch FPC provides the control and power signals required for host integration.
The touch panel can be matched with a compatible 5‑inch LCD according to the customer's mechanical and electrical requirements.
Industrial HMIEmbedded Control PanelAutomation EquipmentSmart Home ControlInstrumentationCustom Display System
!
Please confirm the product scope before ordering
This item is a 5‑inch capacitive touch panel only. It does not include a TFT LCD, backlight, LCD driver board, enclosure or HDMI‑compatible input. LCD matching should be confirmed by outline size, active area, FPC position and system interface.
CUSTOM DISPLAY INTEGRATION
Need to match this touch panel with your LCD?
Send us your LCD drawing, active area, interface and required quantity. We will check the mechanical fit and touch interface before quotation.
