| Brand Name: | YZY |
| Model Number: | YT3200C2U-C1 |
| MOQ: | 500 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T |
Projected Capacitive Touch Panel
G+G Structure | 16:9 | 10‑point Multi‑Touch | USB 5V
YT3200C2U-C1 is a G+G projected capacitive touch panel with ILI2510 touch controller IC. It supports 10‑point multi‑touch, adopts a 16:9 aspect ratio and works with 5V USB input. The panel is suitable for industrial HMI, kiosk, self‑service equipment and large‑size embedded touch applications.
It is equipped with 2.0mm full‑tempered black cover glass, ≥85% light transmittance, ≥6H surface hardness, 500mm connecting cable and wide‑side cable outlet.

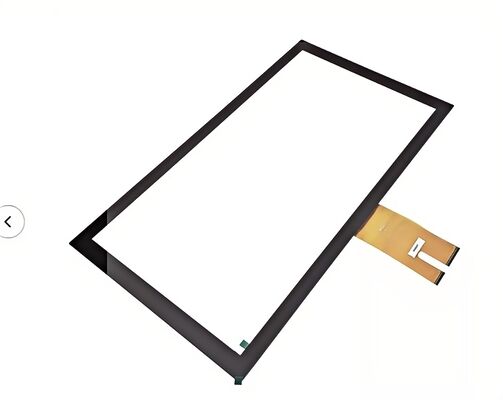

YT2700C2U‑C1 Main Real Shot
The cover glass overall dimension is 745.80 × 443.30mm, and the viewing area is 700.40 × 394.80mm. The panel has R6 corner treatment, black silk‑print border and wide‑side cable outlet.

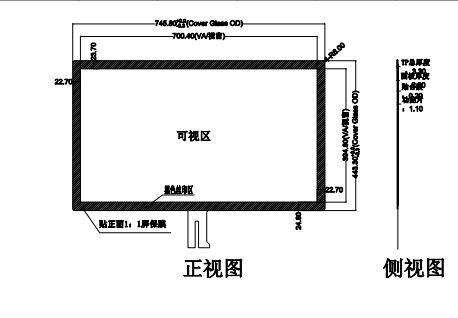

Mechanical Dimension Drawing (for reference only)
| Cover Glass Thickness | 2.0mm |
| Cover Glass Material | Full tempered black glass |
| Cable Length | 500mm |
| Cable Outlet | Wide‑side outlet |
| Back Adhesive | No back adhesive |
| Protective Film | Front side 1:1 protective film |
| Item | Specification |
| Part Number | YT3200C2U-C1 |
| Structure | G+G |
| Touch Controller IC | ILI2510 |
| Touch Points | 10‑point Multi‑touch |
| Aspect Ratio | 16:9 |
| Interface / Input Voltage | USB / 5V |
| Overall Dimension | 745.80 × 443.30mm |
| Viewing Area | 700.40 × 394.80mm |
| Corner | R6 |
| Surface Hardness | ≥6H |
| Light Transmittance | ≥85% |
| Operating Environment | ‑10℃ ~ +60℃, ≤85%RH |
| Storage Environment | ‑20℃ ~ +70℃, ≤85%RH |
Custom touch panel solutions are available, including structure, size, thickness, cable length, interface, cover glass color and printing requirements.

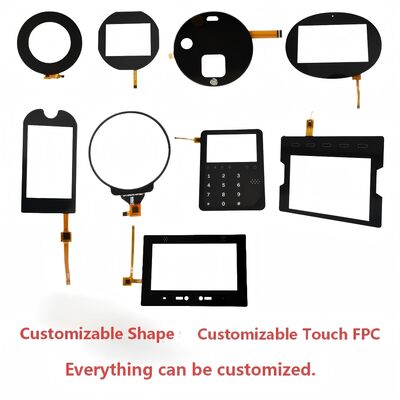

Custom Solution Reference
We offer sample support, customized solutions and competitive quotation.
Please contact us for the latest datasheet and engineering drawing.
Your inquiry is welcome.
