| Brand Name: | YZY |
| Model Number: | YT2150C2U-C1 |
| MOQ: | 500 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T |
INDUSTRIAL G+G PCAP TOUCH ASSEMBLY
520.6×312.3mm｜TP Total 3.0mm｜2.0mm Black Silk‑Screen Cover Glass｜4‑R5 Corner & Transparent Hole

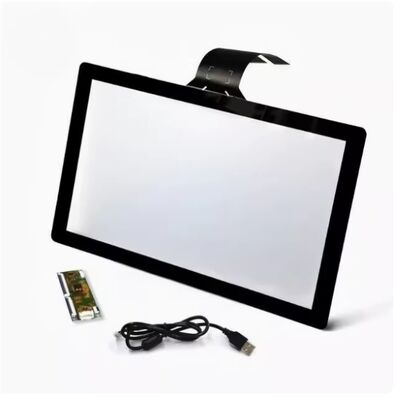

YT2150C2U‑C1 is a custom G+G projected capacitive touch panel with overall dimensions of 520.6 × 312.3 mm.
It adopts a 2.0 mm black silk‑screen cover glass with a transparent visual hole and 4‑R5 round corners. The TP stack‑up is 2.0 mm cover glass + 0.3 mm optical adhesive + 0.7 mm sensor film, giving a total TP thickness of 3.0 mm (excluding 1.0 mm mounting back adhesive).
Dimensional tolerance complies with GB/T 1804‑f. This model is suitable for self‑service kiosks, cabinet‑built‑in HMIs and industrial embedded control equipment.

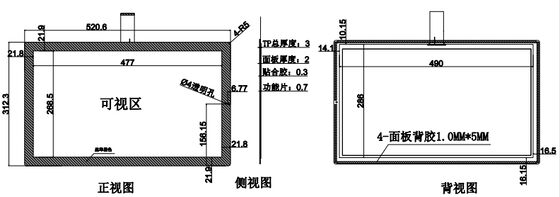

Note: Projection method: Third‑angle projection, drawing scale 1:1, unit: mm.
Black silk‑screen cover glass with reserved transparent visual hole.
Four R5 fillet corners for improved handling and assembly safety.
Complete G+G stack‑up at 3.0 mm; 1.0 mm mounting back adhesive is separate.
Strict dimensional tolerance control for accurate mechanical integration.
Interactive kiosk touch interface
Industrial man‑machine interaction panel
Built‑in cabinet touch solution
Custom touch screen for OEM equipment
If you are interested in YT2150C2U‑C1, please contact us for the official datasheet, sample evaluation, MOQ and lead time.
