PCAP Touch Panel
Created with Pixso.

YT1850C2U‑C1 PCAP Touch Overlay 442×266mm 2.0mm Thickness,Black Silk‑Screen Glass With Transparent Hole & R6 Corner For Industrial Control Kiosk

YT1850C2U‑C1 PCAP Touch Overlay 442×266mm 2.0mm Thickness,Black Silk‑Screen Glass With Transparent Hole & R6 Corner For Industrial Control Kiosk

YT1850C2U‑C1 PCAP Touch Overlay 442×266mm 2.0mm Thickness,Black Silk‑Screen Glass With Transparent Hole & R6 Corner For Industrial Control Kiosk

Brand Name: YZY
Model Number: YT1850C2U-C1
MOQ: 500 pcs
Price: Negotiable
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong,China
Certification:
RoHS
Highlight:

PCAP Touch Overlay Panel

,

2.0mm Thickness Touch Glass

,

Industrial Control Kiosk Touch Panel

Product Description

INDUSTRIAL TOUCH SOLUTION

YT1850C2U‑C1

G+G Capacitive Touch Panel | 442×266 mm | 2.0 mm Cover Glass | Transparent Hole | R6 Corner

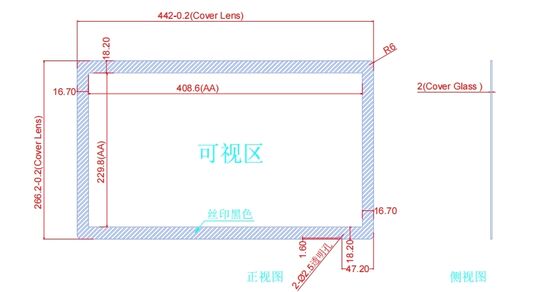

YT1850C2U‑C1 engineering drawing

Product Overview

YT1850C2U‑C1 is a custom industrial G+G projected capacitive touch panel with overall dimensions of 442×266 mm. It adopts a 2.0 mm black silk‑screen tempered cover glass with a transparent hole and R6 round corners.

The dimensional tolerance complies with GB/T 1804‑f. This touch panel is suitable for self‑service kiosks, cabinet‑built‑in HMI, and embedded industrial control equipment.

Technical Specifications

Basic Parameters

Model YT1850C2U‑C1
Structure G+G Capacitive Touch
Overall Dimension 442 × 266 mm
Cover Glass Thickness 2.0 mm
Corner Radius R6

Tolerance & Features

Glass Feature Black silk‑screen with transparent hole
Tolerance Standard GB/T 1804‑f
Tolerance 0‑1000 mm ±0.3 mm
Tolerance 1000‑2000 mm ±0.5 mm

Key Features

🔹

2.0 mm Cover Glass

Black silk‑screen tempered glass for industrial durability.

🔸

Transparent Hole

Reserved hole for sensor, indicator light or module assembly.

🔶

R6 Round Corner

Smooth R6 fillet design for safer handling and assembly.

🔷

GB/T 1804‑f Tolerance

Tight dimensional control for accurate mechanical integration.

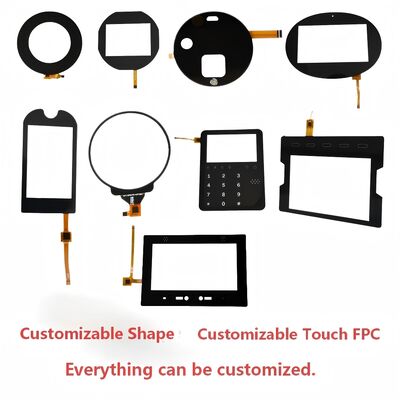

Customization Options

We support partial customization based on the YT1850C2U‑C1 platform.

Customization

Glass Thickness

Selectable thickness according to project requirements.

Hole Layout

Adjust hole position and size on request.

Corner Radius

Support R3 to R10 corner modification.

Silk‑Screen

Custom color, logo and pattern on cover glass.

Typical Applications

🏷️

Self‑Service Kiosk

Interactive terminal touch screen

⚙️

Industrial HMI

Human‑machine interface panel

🖥️

Embedded Cabinet

Built‑in display & touch solution

🔧

OEM & Prototype

Custom touch panel development

YT1850C2U‑C1 is designed for applications requiring a durable, high‑precision custom G+G touch interface.

Contact Us for More Details

If you are interested in YT1850C2U‑C1, please feel free to contact us for the official datasheet, sample quotation, MOQ, and lead time.

Model:
YT1850C2U‑C1
Dimension:
442×266 mm
Glass:
2.0 mm, Black Silk‑Screen
Features:
Transparent Hole, R6 Corner
Tags:

7.0 G+G capacitive touch panel

GT911 IIC interface touch screen

5-point multi-touch industrial screen
