| Brand Name: | YZY |
| Model Number: | YT1010C1I-Q1 |
| MOQ: | 500 pcs |
| Price: | $8.3–10 / Piece |
| Payment Terms: | T/T |
Projected Capacitive Touch Panel
YT1010C1I‑Q1 is a 10.1‑inch G+G projected capacitive touch panel with black cover lens. Adopts 1.1 mm tempered cover glass and 0.7 mm sensor glass, built‑in GT9271 touch IC with IIC(I2C) interface, supports 10‑point multi‑touch input by finger or conductive stylus.
It features ≥6H surface hardness, ≥86% total transmittance and ≤5% haze. Stable working performance under ‑10℃~60℃, widely used for industrial HMI, measuring instruments and various embedded touch display assemblies.

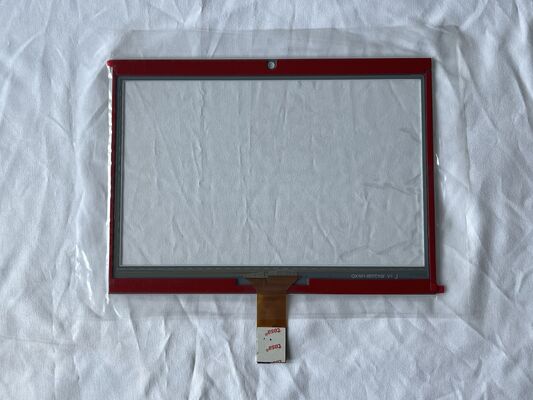

YT1010C1I‑Q1 Front View
| Item | Specification |
| Part Number | YT1010C1I‑Q1 |
| TP Size | 10.1 Inch |
| Structure | G+G |
| Cover / Sensor Thickness | 1.1mm / 0.7mm |
| Lens Color | Black |
| Touch IC | GT9271 |
| Interface | IIC(I2C) |
| Touch Points | 10‑point Multi‑touch |
| Active Area(W*L) | 217.58*136.36 mm |
| View Area(W*L) | 216.2*134.1 mm |
| Surface Hardness | ≥6H |
| Total Transmittance | ≥86% |
| Total Haze | ≤5% |
| Working Condition | ‑10℃ ~ +60℃, ≤65%RH |
| Storage Condition | ‑20℃ ~ +70℃, ≤65%RH |
| Input Method | Finger / Conductive Stylus |

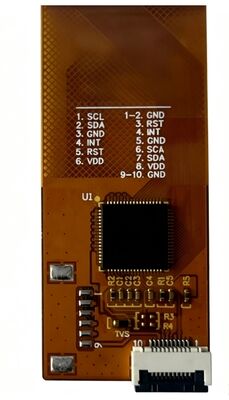

YT1010C1I‑Q1 FPC Cable
| Application | Description |
| Industrial HMI | Automation human‑machine control interface |
| Medical Instrument | Testing & diagnostic touch equipment |
| Smart Embedded Terminal | Match with 10.1‑inch LCD module |

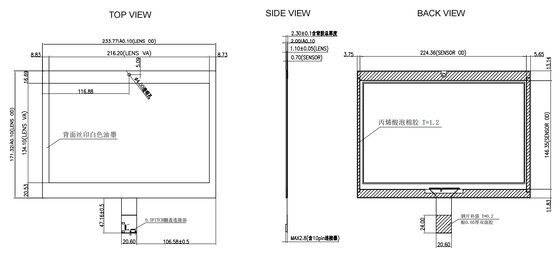

YT1010C1I‑Q1 Drawing for Reference Only
| Custom Item | Available Options |
| Cover Glass | Custom logo printing, anti‑glare treatment |
| FPC Cable | Adjust cable length and pin definition |
| Order Service | Sample available & mass‑production support |
Welcome to inquire for datasheet, sample and quotation.
