| Brand Name: | YZY |
| Model Number: | YT0700C1I-Q1 |
| MOQ: | 500 pcs |
| Price: | $6.5–8 / Piece |
| Payment Terms: | T/T |
Projected Capacitive Touch Panel
GT911 IC | IIC(I2C) Interface | 5‑point Multi‑touch
YT0700C1I-Q1 is a 7.0‑inch G+G projected capacitive touch panel equipped with GT911 touch controller IC and IIC(I2C) communication interface, supporting 5‑point multi‑touch input. Adopting tempered glass material, it reaches ≥6H surface hardness and ≥86% light transmittance. Widely applied in industrial HMI, measuring instruments, smart control terminals and embedded touch devices.
Equipped with FPC flexible cable, this touch panel supports input by finger or conductive stylus, maintaining stable touch performance within wide temperature range.
YT0700C1I-Q1 Front View
| Item | Specification |
| Part Number | YT0700C1I-Q1 |
| Display Size | 7.0 Inch |
| Structure | G+G |
| Touch IC | GT911 |
| Communication Interface | IIC(I2C) |
| Touch Points | 5‑point Multi‑touch |
| Cover / Sensor Thickness | 0.7mm / 0.7mm |
| Surface Hardness | ≥6H |
| Light Transmittance | ≥86% |
| Working Temperature | ‑10℃ ~ +60℃ |
| Input Method | Finger / Conductive Stylus |
YT0700C1I-Q1 Back View & FPC Cable
| Application | Description |
| Industrial HMI | Human machine interface for automation control cabinet |
| Medical Instrument | Medical testing & diagnostic equipment touch control |
| Smart Terminal | Embedded control terminal and measuring device |

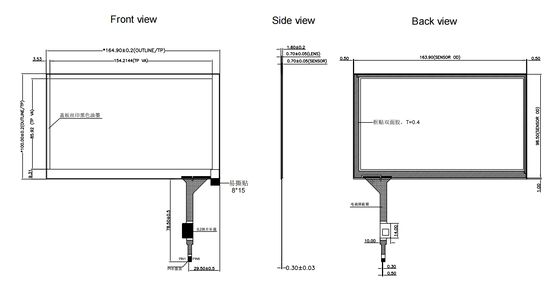

YT0700C1I-Q1 Drawing for Reference Only
| Custom Item | Options |
| Cover Glass | Custom logo printing, anti-glare treatment |
| FPC Cable | Modify cable length, pin definition adjustment |
| Production | Sample support & mass production available |
We provide sample support, customized touch panel solutions and competitive quotation.
Welcome to send inquiry for YT0700C1I-Q1 datasheet and engineering drawing.
Looking forward to your inquiry.
