YT1010C2U‑C1 10.1 Inch Capacitive Touch Panel 2.9mm Cover Lens Touch Screen For Industrial Equipment

YT1010C2U‑C1 10.1 Inch Capacitive Touch Panel 2.9mm Cover Lens Touch Screen For Industrial Equipment

Brand Name: YZY
Model Number: YT1010C2U-C1
MOQ: 500 pcs
Price: Negotiable
Payment Terms: T/T
Detail Information
Place of Origin:
Guangdong,China
Certification:
RoHS
Highlight:

10.1 Inch Capacitive Touch Panel

,

2.9mm Cover Lens Touch Screen

,

Industrial Equipment Touch Panel

Product Description

YT1010C2U‑C1

10.1 Inch Capacitive Touch Panel | Cover Lens Touch Screen

YT1010C2U‑C1 Front View

Product Front View – 10.1 inch Capacitive Touch Panel

Product Brief Introduction

YT1010C2U‑C1 is a 10.1‑inch capacitive touch panel with cover lens. It is assembled by cover lens, optical adhesive and touch sensor film. Suitable for industrial equipment, medical device, kiosk and embedded display system.

Important: This is touch panel only, WITHOUT LCD display module.

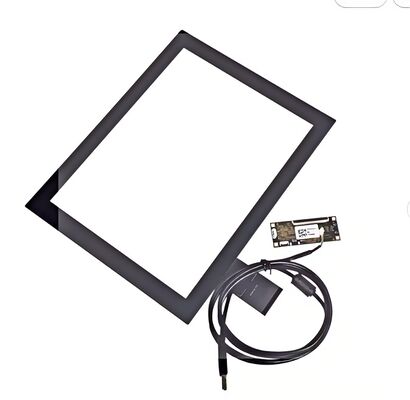

Touch Panel Accessories

Touch Panel & FPC Accessories Photo

Main Mechanical Parameters

Item Specification
Part Number YT1010C2U‑C1
Touch Size 10.1 Inch Capacitive Touch Panel
Cover Lens Dimension 244.9 × 163.9 mm
Active View Area(VA) 216.58 × 135.36 mm
TP Total Thickness 2.9 mm
Structure Layer Cover lens 2.0mm + OCA 0.2mm + Sensor 0.7mm
Corner Radius R6
Touch Type Projected Capacitive Touch

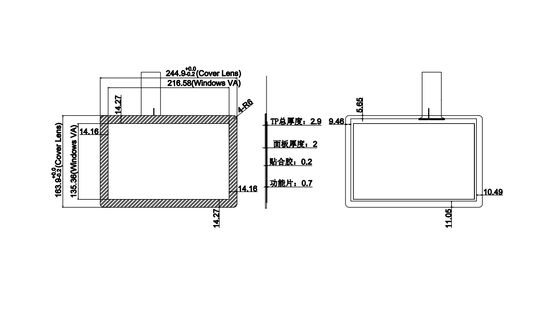

YT1010C2U‑C1 Mechanical Drawing

Mechanical Dimension Engineering Drawing

Application Scope

Industrial Control Equipment
Kiosk & Self‑service Terminal
Medical Display Device
Embedded Touch System
Smart Home Panel
Instrument Touch Interface

Our Service & Contact

Sample support and bulk orders are available. Datasheet, engineering drawing and customized solutions can be provided upon request.

We provide technical support, sample testing and competitive quotation for small quantity and bulk orders.

Please contact us for more details, datasheet and best price.
