| Brand Name: | YZY |
| Model Number: | YT1330C2U-C1 |
| MOQ: | 500 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T |
G+G Structure 16:10 Projected Capacitive Touch Panel | 10‑point Multi‑Touch
YT1330C2U‑C1 is a G+G projected capacitive touch panel with built‑in ILI2511 touch controller IC. It supports 10‑point multi‑touch and adopts a 16:10 aspect ratio with 5V USB input.
This panel provides ≥6H surface hardness and ≥85% light transmittance, suitable for industrial integration, custom assembly and embedded touch applications.
Product Real Shot

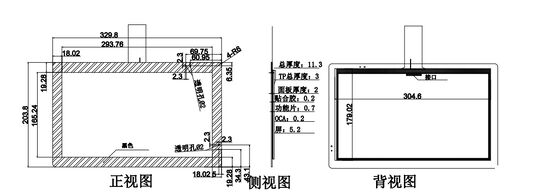

Mechanical Engineering Drawing
The panel is manufactured according to engineering specifications, with a G+G glass‑glass bonding structure and R6 corner treatment.
It supports secondary assembly and custom integration. Mechanical dimensions, tolerances and interface details can be confirmed in the engineering drawing.
| Part Number | YT1330C2U‑C1 |
| Structure | G+G |
| Touch Controller IC | ILI2511 |
| Touch Points | 10‑point Multi‑touch |
| Aspect Ratio | 16:10 |
| Interface / Voltage | USB / 5V |
| Surface Hardness | ≥6H |
| Light Transmittance | ≥85% |
| Operating Environment | ‑10~+60℃, ≤85%RH |
| Storage Environment | ‑20~+70℃, ≤85%RH |
Sample support and bulk orders are available. Datasheet, engineering drawing and customized touch panel solutions can be provided upon request.
We provide technical support, sample testing and competitive quotation for small quantity and bulk orders.
Please contact us for more details, datasheet and best quotation.
