| Brand Name: | YZY |
| Model Number: | YT1400C2U-C1 |
| MOQ: | 500 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T |
INDUSTRIAL TOUCH DISPLAY MODULE

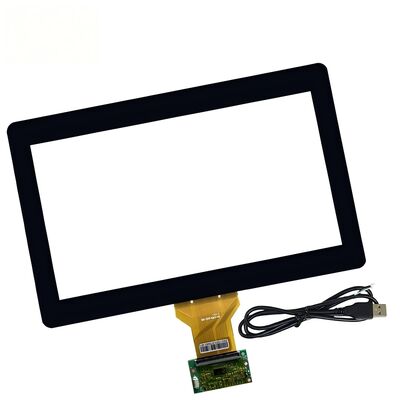

14 Inch Full-Laminated PCAP Touch LCM Assembly | Black Silk-Screen Cover Glass
YT1400C2U-C1 is a 14-inch full-laminated PCAP capacitive touch LCM complete assembly. It integrates a black silk-screen cover glass, touch sensor, optical bonding layer and LCM into one compact module. With reinforced FPC design and industrial-grade reliability, it is suitable for embedded touch control equipment, industrial HMI, smart terminals and automated machinery interfaces.
Integrated PCAP touch sensor and LCM for stronger durability and better optical performance.
5.25±0.3mm black mask area covers edge traces and highlights the active display region.
FPC with reinforcement plate improves mechanical stability during assembly and long-term use.

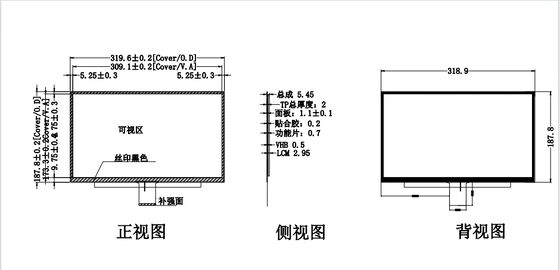

YT1400C2U-C1 Front View Drawing
Front view shows the cover glass outline, active view area, black silk-screen border and overall visible layout of YT1400C2U-C1.
| Item | Specification |
|---|---|
| Model No. | YT1400C2U-C1 |
| Assembly Type | Full-Laminated PCAP Touch + LCM Complete Assembly |
| Screen Size | 14 Inch |
| Cover Glass Overall Dimension | 319.6±0.2 × 187.8±0.2 mm |
| View Area (V.A) | 309.1±0.2 × 173.3±0.2 mm |
| Silk-Screen Border Width | 5.25±0.3 mm, Black Silk-Screen |
| Module Overall Size | 318.9 × 187.8 mm |
| Total Assembly Thickness | 5.45 mm |
| Touch Type | Projected Capacitive Touch (PCAP) |
| FPC Feature | With Reinforcement Plate |
Back view provides information on module outline, FPC position and reinforcement area for YT1400C2U-C1 mechanical integration.
| Layer | Thickness |
|---|---|
| Cover Glass (CG) | 1.1±0.1 mm |
| OCA Bonding Film | 0.2 mm |
| Touch Sensor Film | 0.7 mm |
| VHB Tape | 0.5 mm |
| LCM LCD Panel | 2.95 mm |
| Total Thickness | 5.45 mm |

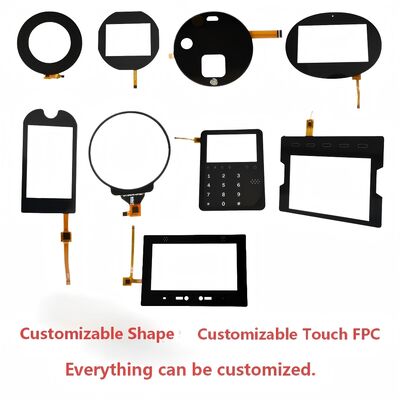

Silk-Screen Customization
Black silk-screen border, cover glass color and pattern can be customized according to requirements.
FPC & Interface Options
FPC length, connector type and pin definition can be adjusted for different host applications.
Optical Enhancement
AG anti-glare treatment, higher brightness and enhanced contrast are available for special environments.
Sample & Mass Production
Engineering samples, small batch trial order and mass production support are provided.
Industrial HMI
Automation Control
Smart Terminal
Medical Auxiliary Device
If you need the official datasheet, 3D step file, sample quotation, MOQ or lead time for YT1400C2U-C1, please feel free to contact us directly.
Model Reference: YT1400C2U-C1 | 14 Inch Full-Laminated PCAP Touch LCM Assembly.
