| Brand Name: | YZY |
| Model Number: | YT1500C2U-C1 |
| MOQ: | 500 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T |
INDUSTRIAL TOUCH DISPLAY MODULE
Full-Laminated PCAP Capacitive Touch LCM Assembly | Black Silk-Screen Cover Glass

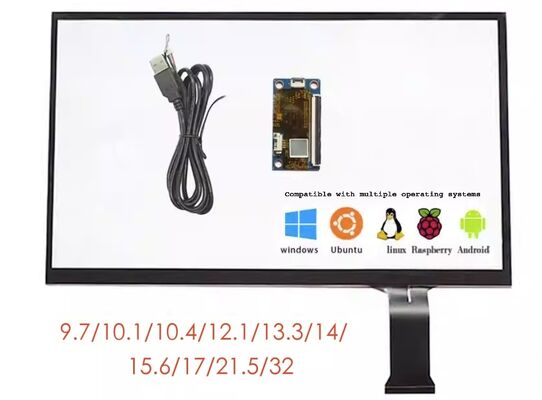

YT1500C2U-C1 is an industrial-grade full-laminated PCAP capacitive touch LCM assembly. It adopts a 1.1mm black silk-screen cover glass and integrates touch sensor, optical bonding layer and LCM into one compact module.
Module outline dimension is 326.5 × 253.5 mm, mechanical tolerance complies with GB/T 1804-1. Suitable for industrial HMI, automation control terminals and embedded smart devices.
Integrated PCAP touch sensor and LCM for better optical clarity and durability.
1.1mm cover glass with black mask area hides edge traces and improves appearance.
Dimension control complies with GB/T 1804-1 for stable equipment assembly.

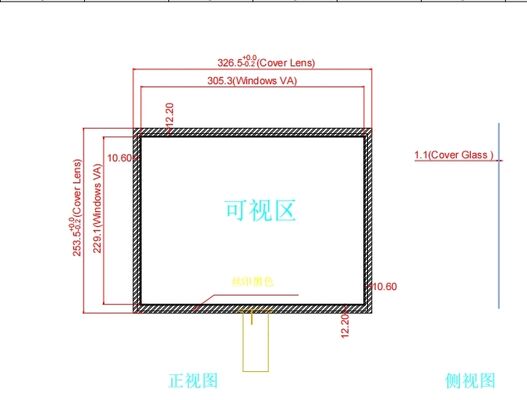

Engineering drawing shows module outline, cover glass thickness, black silk-screen area and mechanical dimension reference.
| Layer Name | Thickness | Description |
|---|---|---|
| Cover Glass (CG) | 1.1 mm | With black silk-screen border |
| Optical Bonding Layer | Customized | For full-laminated optical coupling |
| PCAP Touch Sensor | Customized | Projected capacitive touch function |
| LCM LCD Panel | Customized | Display panel for industrial application |

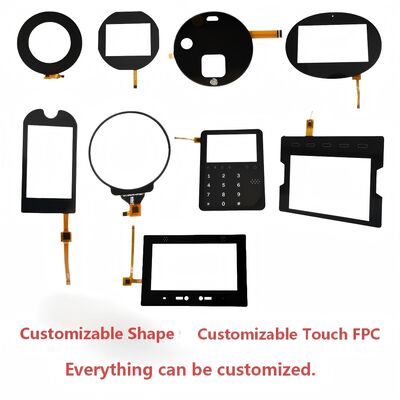

Silk-screen width, AG anti-glare and surface hardness can be customized.
FPC length, pin definition and connector type are adjustable.
Brightness and contrast can be adapted to different environments.
Engineering samples and small batch trial orders are available.
Human-machine interface for industrial control equipment.
Control and display terminal for automatic production lines.
Display and interaction module for smart cabinet systems.
Auxiliary display and touch control for instrumentation devices.
Please contact us for the official datasheet, sample quotation, MOQ and lead time of YT1500C2U-C1.
Model Reference: YT1500C2U-C1 | Full-Laminated PCAP Touch LCM Assembly
