| Brand Name: | YZY |
| Model Number: | YT1560C2U-C1 |
| MOQ: | 500 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T |
INDUSTRIAL PCAP TOUCH PANEL
G+G Structure Capacitive Touch Panel | 1.1mm Full‑Tempered Black Silk‑Screen Glass | USB 2‑Point Touch
YT1560C2U‑C1 is an industrial‑grade G+G PCAP capacitive touch panel designed for stable embedded HMI applications.

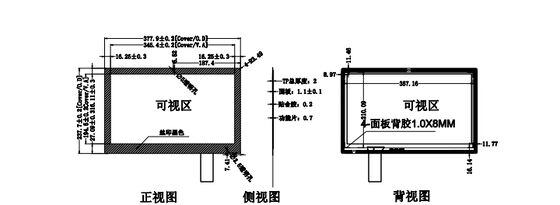

It adopts 1.1mm full‑tempered black silk‑screen cover glass, with overall dimension 377.9 × 237.7 mm and reserved transparent mounting holes.
Surface hardness reaches ≥6H, supporting reliable 2‑point touch and wide operating temperature from ‑10℃ to +60℃.
Glass‑to‑glass construction with 1.1mm full‑tempered black silk‑screen cover glass.
2511 IC solution, 5V USB input, stable two‑point touch operation.
Surface hardness reaches ≥6H for improved scratch and impact resistance.
Operating: ‑10℃ to +60℃; storage: ‑20℃ to +70℃ for industrial environments.
| Item | Specification |
|---|---|
| Model No. | YT1560C2U‑C1 |
| Structure | G+G Capacitive Touch |
| Overall Dimension | 377.9 × 237.7 mm |
| Cover Glass | 1.1mm Full‑Tempered, Black Silk‑Screen |
| Touch Points | 2 Points |
| Interface / IC | USB 5V Input, 2511 IC |
| Surface Hardness | ≥6H |
Dimension tolerance follows GB/T1804‑f standard, with reserved transparent holes.
| Layer Name | Thickness | Description |
|---|---|---|
| Cover Glass | 1.1mm | Full tempered, black silk‑screen |
| Optical Bonding Layer | 0.2mm | Optical adhesive |
| Sensor Film | 0.7mm | PCAP functional sensor film |
| Total TP Thickness | 2.0mm | Complete touch panel thickness |

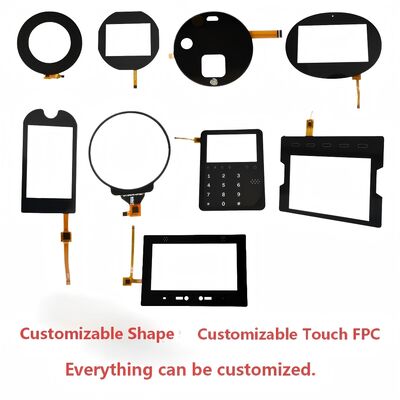

Silk‑screen area, hole position and surface hardness can be customized.
FPC length and cable outlet direction are supported for modification.
Transparent holes and mounting holes can be arranged as required.
Engineering samples and mass‑production supply are available.
Human‑machine interaction terminal for industrial control equipment.
Self‑service interactive kiosk and public information terminal.
Production line control panel and industrial automation equipment.
Cabinet‑built‑in touch solution for embedded industrial devices.
Model: YT1560C2U‑C1 | Type: G+G USB PCAP Capacitive Touch Panel | Size: 377.9 × 237.7 mm
