| Brand Name: | YZY |
| Model Number: | YT1700C2U-C1 |
| MOQ: | 500 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T |
INDUSTRIAL CAPACITIVE TOUCH PANEL
G+G PCAP Touch Panel | 381.6×317.1mm | USB 4‑Point Touch

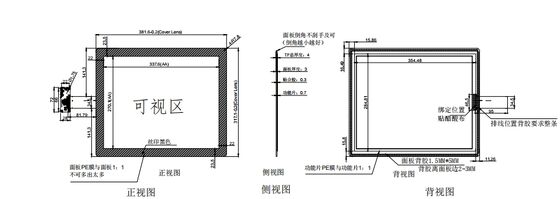

YT1700C2U‑C1 is industrial‑grade G+G projected capacitive touch panel. Adopts full‑tempered black silk‑screen cover glass, overall dimension 381.6 × 317.1 mm, total thickness 3.0 mm.

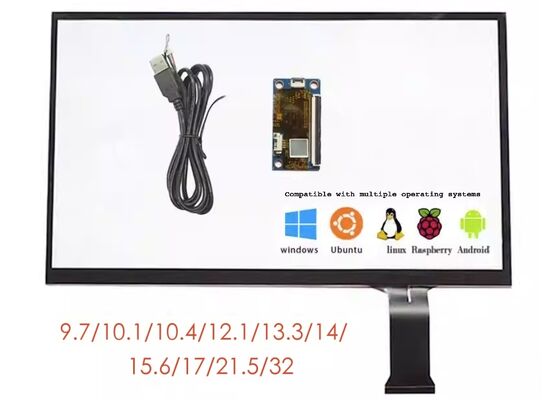

Equipped with ILITEK I2511 touch IC and 450 mm FPC cable, USB interface supports 4‑point touch, wide‑temperature performance for kiosk, industrial HMI and embedded automation equipment.
Dimension tolerance follows GB/T1804‑f standard, reserved binding position for cable wiring arrangement.
Full‑tempered black silk‑screen cover glass for heavy‑use industrial scene.
ILITEK I2511 IC, USB interface for stable multi‑touch operation.
Works under‑10℃~+60℃, suitable for harsh industrial environment.
450 mm FPC cable, support custom length and outlet direction.

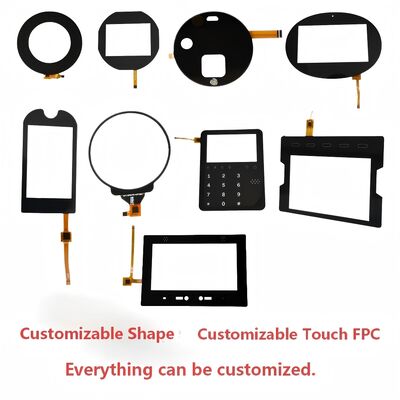

Silk‑screen, hole layout, surface hardness adjustable.
Custom FPC length and cable outlet direction.
Mounting hole and binding position customization.
Engineering samples & mass‑production supply available.
Human‑machine interaction terminal
Interactive kiosk terminal device
Production line control panel
Built‑in cabinet touch solution
Get datasheet, sample cost, MOQ and lead‑time for YT1700C2U‑C1 touch panel.
Model: YT1700C2U‑C1 | Type: G+G USB PCAP Touch Panel | Size:381.6×317.1mm
