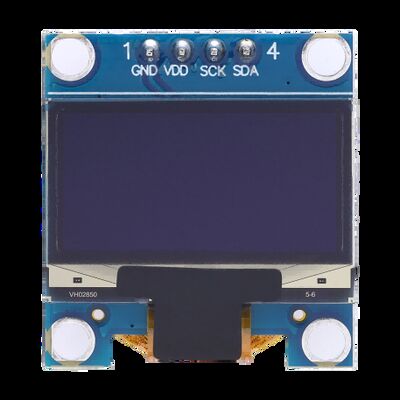

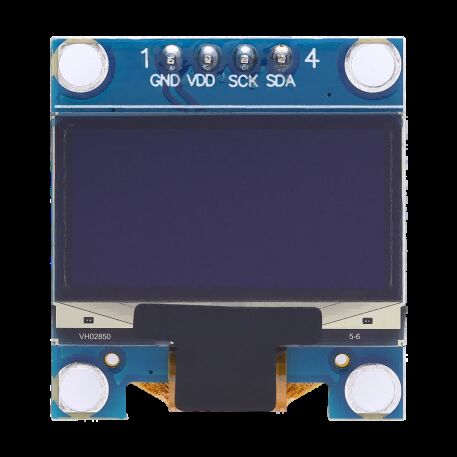

0.96 Inch White/Blue OLED Display 128x64 I2C 4-Pin SSD1315 3.0V
  • name
  • name
  • name

0.96 Inch White/Blue OLED Display 128x64 I2C 4-Pin SSD1315 3.0V

MOQ: 5 pieces
Price: $1.55~2.6/pieces
Standard Packaging: 5*5*3
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YOK0096MGI-X1
Highlight:

0.96 Inch OLED Display Module

,

128x64 Resolution OLED Module

,

I2C 4-Pin Interface OLED Screen

Product Description
0.96 Inch White/Blue OLED Display 128x64 I2C 4-Pin SSD1315 3.0V
This industrial-grade 0.96-inch OLED module features advanced COG (Chip On Glass) packaging design, driven by professional SSD1315 driver IC with 1/64 Duty driving scheme. It offers 128x64 dot matrix white or blue display options, 4-pin I2C interface, extreme wide temperature adaptation range (-40~+80℃ operating, -45~+85℃ storage), and compact structural dimensions (25.00±0.3mm PCB length, max thickness 3.0mm). Ideal for industrial control, portable electronics, smart devices, measuring instruments and embedded display systems with strict space, performance and environmental adaptability requirements.
Product Specifications
Display Type 0.96" Passive Matrix White/Blue OLED Module (Positive Mode)
Module Model YOK0096MGI-X1
Part Number OLED0.96
Driver IC SSD1315
Driving Scheme 1/64 Duty
Logic Voltage (VDD) 3.0V DC
Interface Type I2C (IIC, Serial Interface)
Pin Number & Function 4PIN (1:GND, 2:VDD, 3:SCK, 4:SDA)
Operating Temperature -40℃ ~ +80℃ (Extreme Wide Temperature)
Storage Temperature -45℃ ~ +85℃
Connection Type COG (Chip On Glass)
PCB Dimension (L) 25.00±0.3mm
Panel Size (L) 24.70±0.2mm
Active Area (A/A) 21.74mm(L) * 8.69mm(W)
Viewing Area (V/A) 22.74mm(L)
Pixel Resolution 128x64 Pixels
OLED Thickness 1.4mm
PCB Thickness 1.20mm
Max Overall Thickness 3.0mm
Dot Pitch 0.17mm
Unnoted Tolerance 0.2mm
Display Color White / Blue (Two Options)
Compliance Standard RoHS (EU Environmental Instructions)
Product Features
  • 0.96-inch 128x64 dot matrix OLED display with White/Blue dual color options for diverse application needs
  • SSD1315 dedicated driver chip with 1/64 Duty driving scheme for ultra-stable performance and strong anti-interference
  • Standard 4-pin I2C serial interface (GND/VDD/SCK/SDA) with high compatibility for mainstream microcontrollers
  • Fixed 3.0V logic voltage supply, perfectly matching most low-voltage electronic system power supplies
  • Extreme wide temperature range (-40~+80℃ operating, -45~+85℃ storage) for harsh industrial/outdoor environments
  • Compact structural design with 25.00±0.3mm PCB length and 3.0mm max thickness, ideal for space-constrained devices
  • Precise mechanical parameters with 0.2mm unnoted tolerance, ensuring stable assembly and consistent product quality
  • High precision 0.17mm dot pitch for clear, delicate text and graphic display effects
  • Optimized active area (21.74*8.69mm) for efficient visual information presentation
  • RoHS compliant materials and components, meeting EU environmental protection requirements for global sales
  • Low power consumption characteristic of OLED technology, suitable for battery-powered portable and IoT devices
  • Industrial-grade reliability, supporting long-term continuous operation in complex working conditions
Product Applications
  • Industrial control equipment and intelligent operation panels with White/Blue display requirements
  • Portable measuring instruments, precision electronic meters and handheld professional testers
  • Small handheld smart devices, industrial handheld terminals and compact embedded display modules
  • IoT sensor nodes, low-power smart monitoring equipment and industrial data display terminals
  • Automotive electronic auxiliary display components and vehicle-mounted small display screens
  • Smart home appliance control panels and monochrome display screens for home electronics
  • Medical portable devices, health monitoring equipment and professional medical display instruments
  • Consumer electronics, battery-powered small display products and digital peripheral equipment
  • Industrial meters, smart wearables with extreme wide temperature adaptation requirements
  • Professional test and measurement equipment and industrial automation control display terminals
  • DIY electronic projects, microcontroller development boards and open-source hardware display accessories
  • Smart card readers, portable payment terminals and small financial electronic display components

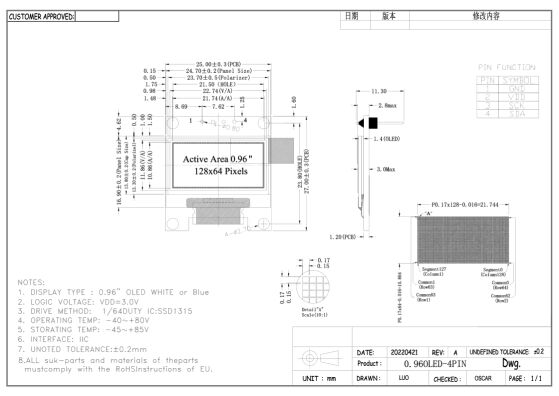

Technical Documentation
0.96 Inch White/Blue OLED Display 128x64 I2C 4-Pin SSD1315 3.0V 0
Application Examples
0.96 Inch White/Blue OLED Display 128x64 I2C 4-Pin SSD1315 3.0V 1
Company Profile
Yingzhan Ying Technology was founded in January 2018 and is located in Shenzhen, China--a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company has always been committed to custom services, R&D, sales and after-sales services in the optoelectronic display industry.

The company's products include OLED modules (0.91/0.96 inch etc.), Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These products are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services and other fields, making it a supplier to many well-known clients worldwide.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance, fully complying with the stated tolerance and technical parameters for industrial-grade use.
Do you supply samples?
Yes, we provide White/Blue color samples for evaluation, supporting small batch testing for your project development and prototype verification.
What is the delivery time?
Typically 7 working days after payment confirmation for both sample and bulk orders, with flexible delivery for large quantity customized orders.
What is the minimum order quantity?
1 piece minimum order quantity, supporting individual purchase for prototyping, small projects and DIY electronic production.
What if we receive missing or defective items?
Please contact us immediately with product photos and order information, and we will investigate the issue and provide the best solution promptly.
What are your main products?
Comprehensive range including various size LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments for all orders, both sample and bulk, with flexible payment terms for long-term cooperative clients.
What shipping methods do you offer?
DHL and China Post shipping services available, covering global delivery with fast and safe logistics solutions for your convenience.
