YNT0280EGS-B1 Factory Direct 2.8 Inch TN Touch Screen SPI TFT LCD Display Module with ST7789 Driver IC Resolution 240x320
  • name
  • name
  • name

YNT0280EGS-B1 Factory Direct 2.8 Inch TN Touch Screen SPI TFT LCD Display Module with ST7789 Driver IC Resolution 240x320

MOQ: 500
Price: 6.2-7.02/pc
Standard Packaging: 30pcs/box
Delivery Period: 14-30days
Payment Method: ,T/T,D/P,D/A,Western Union
Supply Capacity: 50000/month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
RoHS/CE/CB
Model Number
YNT0280EGS-B1
Highlight:

2.8 inch TN touch screen

,

SPI TFT LCD display module

,

ST7789 driver IC touch screen

Product Description

YNT0280EGS-B1 Factory Direct 2.8 Inch TN Touch Screen SPI TFT LCD Display Module with ST7789 Driver IC Resolution 240x320

High-performance 5.0-inch TFT-LCD touch module with 800×480 resolution RGB interface, delivering exceptional visual clarity and responsive touch functionality for industrial and commercial applications.
Product Overview
The YNT0280EGS-B1 is a 2.8-inch high-performance TFT-LCD touch module developed by Shenzhen Yingzhanying Technology. This comprehensive display solution integrates a TFT-LCD panel, driver IC, FPC, backlight unit, and capacitive touch panel to deliver superior visual performance and reliable operation.
Key Specifications
Product 2.8 inch TFT-LCD Touch Module
Module Number YNT0280EGS-B1
Resolution 240*320 dots (RGB)
Display Mode Normally Black, Transmissive
Outline Dimensions 50*69.2*3.1
Viewing Direction 12 O'Clock
Active Area 43.2*57.6
Interface 4Lane SPI
Touch Function Capacitive Touch
Backlight brightness 300
Storage Temperature -30 ~ +80 ℃
Contrast Ratio 500:1 (Typical)
Operating Temperature -20 ~ +70 ℃
Technical Features

YNT0280EGS-B1 Factory Direct 2.8 Inch TN Touch Screen SPI TFT LCD Display Module with ST7789 Driver IC Resolution 240x320 0

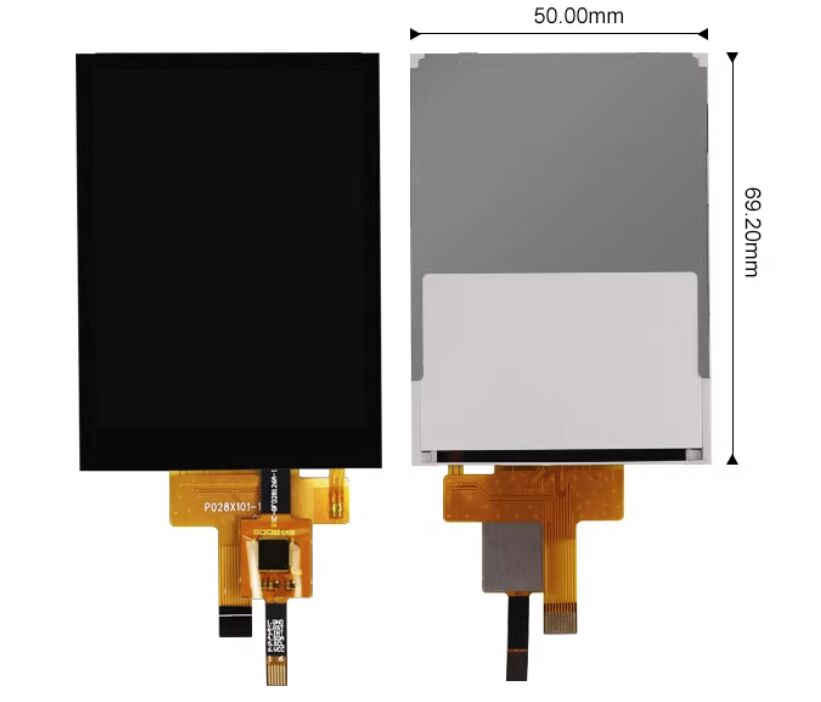

Technical Drawing
YNT0280EGS-B1 Factory Direct 2.8 Inch TN Touch Screen SPI TFT LCD Display Module with ST7789 Driver IC Resolution 240x320 1YNT0280EGS-B1 Factory Direct 2.8 Inch TN Touch Screen SPI TFT LCD Display Module with ST7789 Driver IC Resolution 240x320 2
Electrical Specifications
The YNT0280EGS-B1 LCD touch module ensures reliable electrical and touch performance with the following specifications:
Environmental Specifications
  • Operating temperature: -20℃ ~ +70℃
  • Storage temperature: -30℃ ~ +80℃
  • Humidity: Ta≤40℃: max 85%RH; Ta≥40℃: absolute humidity must be lower than 85%RH at 40℃

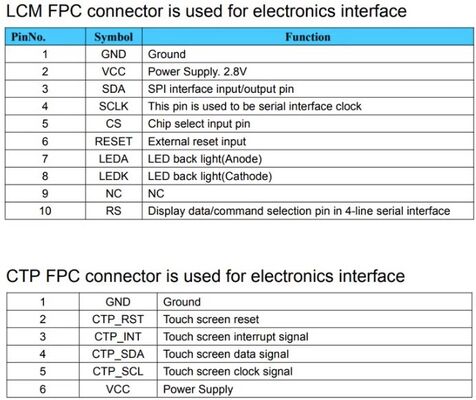

PIN Definition
YNT0280EGS-B1 Factory Direct 2.8 Inch TN Touch Screen SPI TFT LCD Display Module with ST7789 Driver IC Resolution 240x320 3
Customization Options
The YNT0280EGS-B1 offers comprehensive customization to meet specific application requirements:
FPC Design
Flexible adjustment of FPC layout, length, and connector type to fit system installation requirements.
Cover Glass
Customizable size, thickness (0.5mm~1.1mm), surface printing (logo, pattern), and hardness (3H~9H) for different usage scenarios.
Brightness Tuning
Adjustable brightness from 500~1500 Cd/m² to adapt to indoor, outdoor, or low-power applications.
Touch Optimization
Customizable touch sensitivity, driver IC matching, and optional multi-touch functionality for specific application needs.
Interface Adaptation
Support for interface conversion (RGB to LVDS/MIPI) to match different mainboard designs and system architectures.
