4.3" TFT LCD Module 800x480 Parallel RGB 24bit 300cd/m² White LED Backlight Display For Industrial Control

MOQ: 500 pieces
Price: $6.79-9.99/pieces
Standard Packaging: 20*20*10
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YVO0430FER-H01
Highlight:

4.3 inch TFT LCD module

,

800x480 RGB industrial display

,

24bit parallel LCD with backlight

Product Description
4.3 Inch TFT LCD Display Module 800x480 Parallel RGB 24bit 300cd/m² White LED Backlight Display For Industrial Control
4.3 inch industrial TFT LCD module with 800×480 resolution, Parallel RGB 24-bit interface, 300cd/m² brightness, full viewing angle, 3.3V input and wide temperature range, suitable for industrial control, smart devices, medical equipment, handheld instruments and embedded applications.
Product Overview
This 4.3 inch TFT LCD display module adopts amorphous silicon TFT active matrix technology with 800(RGB)×480 resolution and 16.7M colors. It uses Parallel RGB 24-bit interface and white LED backlight, supports full viewing angle display. Features 300cd/m² brightness, 3.3V supply voltage, -20℃ to 70℃ operating temperature and high reliability. It is an ideal display solution for industrial HMI, handheld devices, smart control, medical instruments and electronic equipment.YVO0430FER-H01.pdf
Technical Specifications
Display Type 4.3 Inch TFT-LCD Module LCM
Model Number YVO0430FER-H01
Resolution 800(RGB) × 480 Pixels
Display Mode Transmissive, RGB Vertical Stripe
Display Colors 16.7M Colors
Panel Type TFT Full Viewing Angle
Interface Parallel RGB 24-bit
Brightness 300 cd/m² (Typical)
Contrast Ratio 300:1 ~ 400:1 (Typical)
Response Time 25~40 ms (Typical)
Viewing Angle 85/85/85/85 deg (Full Viewing Angle)
Backlight White LED, 7 LEDs, Serial
Outline Dimension 105.50(W) × 67.20(H) × 3.0(D) mm
Active Area 95.04(W) × 53.86(H) mm
Driver IC HX8664 / HX8264
Input Voltage 3.3V
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
LED Lifetime 50000 Hours
Compliance RoHS Compliant
Key Features
  • 4.3 inch TFT LCD with 800×480 high resolution and 16.7M true color display
  • Full viewing angle design ensures clear image from all directions
  • 300cd/m² brightness for stable and clear visual effect
  • Parallel RGB 24-bit high-speed interface for stable signal transmission
  • White LED backlight with long lifespan up to 50000 hours
  • 3.3V low voltage power supply with low power consumption
  • Wide temperature range for harsh industrial environment
  • Compact and slim structure for easy integration
  • RoHS compliant meets international environmental standards
  • Support OEM/ODM customization for size and interface
  • High reliability with strict reliability test
Applications
  • Industrial control panels and HMI human-machine interface
  • Handheld testing instruments and portable electronic devices
  • Smart home control panels and intelligent automation equipment
  • Medical monitoring devices and small medical equipment
  • Embedded systems and DIY electronic development kits
  • Automotive aftermarket displays and car electronic devices
  • POS machines, financial equipment and smart terminals
  • Consumer electronics and small intelligent display devices

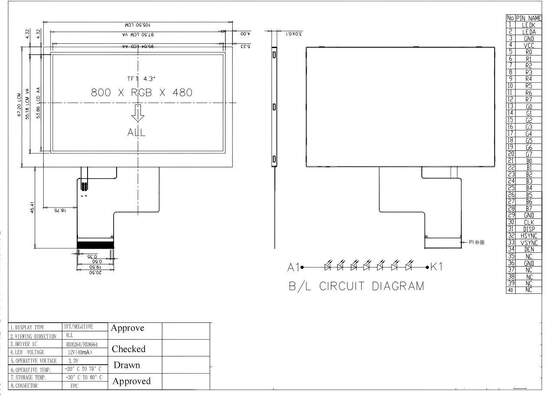

Product Documentation
4.3" TFT LCD Module 800x480 Parallel RGB 24bit 300cd/m² White LED Backlight Display For Industrial Control 0

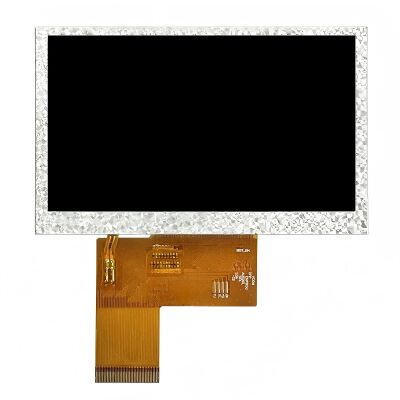

Product Image
4.3" TFT LCD Module 800x480 Parallel RGB 24bit 300cd/m² White LED Backlight Display For Industrial Control 1
Application examples in industrial and consumer devices
4.3" TFT LCD Module 800x480 Parallel RGB 24bit 300cd/m² White LED Backlight Display For Industrial Control 2
Partner companies and collaborative projects
4.3" TFT LCD Module 800x480 Parallel RGB 24bit 300cd/m² White LED Backlight Display For Industrial Control 3
Manufacturing facility and quality control environment
4.3" TFT LCD Module 800x480 Parallel RGB 24bit 300cd/m² White LED Backlight Display For Industrial Control 4
Shipping methods and delivery information
