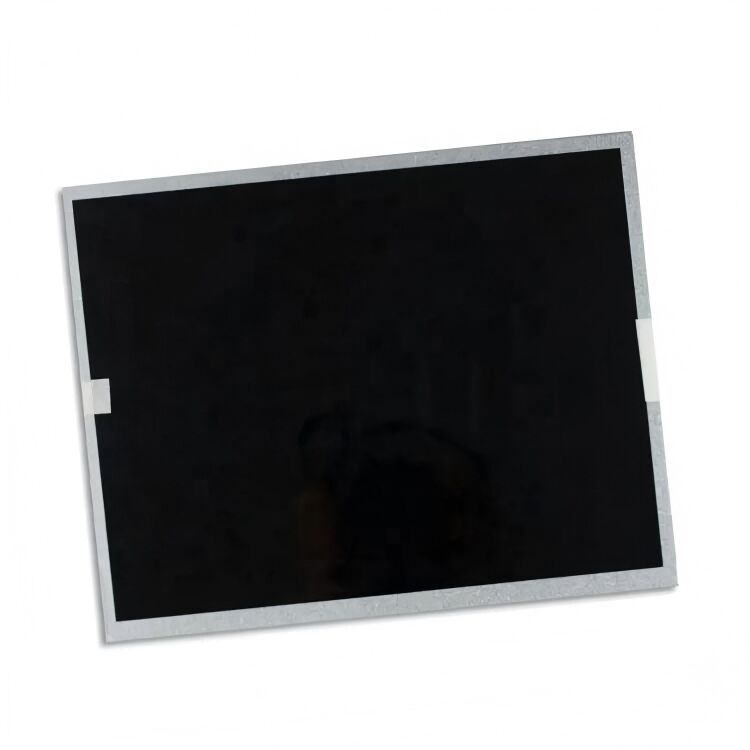

BOE 12.1 Inch TFT LCD Module with 500 cd/m² Brightness 1280x800 WXGA Resolution and LVDS 40 Pin Interface Industrial Display
  • name

BOE 12.1 Inch TFT LCD Module with 500 cd/m² Brightness 1280x800 WXGA Resolution and LVDS 40 Pin Interface Industrial Display

MOQ: 100 pcs
Price: $1.99-199.99 Piece
Payment Method: T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE，RoHS
Model Number
YVO1210SNL-L1
Highlight:

12.1 inch TFT LCD module

,

WXGA resolution industrial display

,

LVDS 40 pin LCD screen

Product Description
BOE 12.1 Inch TFT LCD Module 1280x800 LVDS 40 Pin 500 Nits Industrial Display
Product Overview

This BOE 12.1 inch TFT LCD module features 1280x800 WXGA resolution, LVDS 40 pin interface and normally black display mode. It supports 16.7M colors, 500 cd/m² typical brightness, 1200:1 typical contrast ratio, 72% NTSC color gamut and 85/85/85/85 wide viewing angle performance.

With AG25 surface treatment, 50,000 hours LED lifetime and wide operating temperature range, it is suitable for monitoring systems, industrial control equipment, embedded display terminals and custom LCD applications. Customization is available for brightness, interface, touch panel, FPC structure, cover lens and other specifications based on different project requirements.

Key Features
BOE 12.1 inch TFT LCD module with 1280x800 WXGA resolution
LVDS 40 pin interface for industrial display controller boards
500 cd/m² typical brightness for monitoring and equipment display use
Normally black display mode with 1200:1 typical contrast ratio
85/85/85/85 wide viewing angle for stable visual performance
72% NTSC color gamut for better image and UI display quality
AG25 surface treatment for reduced reflection in industrial applications
Customization support for brightness, touch panel, FPC and cover lens design
Technical Specifications
Specification Details
Screen Size 12.1 Inch
Resolution 1280 × 800
Module Dimensions 277.7 × 180.0 mm
Active Area 261.12 × 163.20 mm
Brightness 500 cd/m²
Display Interface LVDS / 40 Pin
Viewing Angle 85/85/85/85 Typ.
Operating Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃
BOE 12.1 Inch TFT LCD Module with 500 cd/m² Brightness 1280x800 WXGA Resolution and LVDS 40 Pin Interface Industrial Display 0 BOE 12.1 Inch TFT LCD Module with 500 cd/m² Brightness 1280x800 WXGA Resolution and LVDS 40 Pin Interface Industrial Display 1
Application Scenarios
  • Monitoring systems and security displays
  • Industrial control equipment and HMI interfaces
  • Embedded display terminals
  • Custom LCD applications and specialized display solutions
