BOE DV150X0M N10 15 Inch 43 Industrial LCD Display 1024x768 XGA 350cdm² LVDS Interface
  • name
  • name
  • name
  • name

BOE DV150X0M N10 15 Inch 43 Industrial LCD Display 1024x768 XGA 350cdm² LVDS Interface

MOQ: 5 pieces
Price: $67.28-75.11/pieces
Standard Packaging: 40*35*18
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
DV15X0M-N10
Highlight:

15 inch industrial LCD display

,

XGA TFT LCD module

,

LVDS interface LCD screen

Product Description
15.0 Inch TFT LCD Module 1024(RGB)*768 BOE DV150X0M-N10
YZY BOE DV150X0M-N10 15.0 Inch TFT LCD Module. High-performance industrial TFT LCD display module with 1024(RGB)*768 XGA resolution, 4:3 aspect ratio, and LVDS (1 ch, 8-bit) 20-pin interface for industrial control, medical devices, and commercial display applications.
Product Overview
This 15.0-inch TFT LCD module features 1024(RGB)*768 XGA high resolution with 85PPI pixel density and 89/89/89/89 wide viewing angle. Adopting ADS normally black transmissive display mode and driven by BOE original panel, it integrates 12S4P WLED backlight with 50K hours lifespan and built-in LED driver. With a robust 326.5(W)*253.5(H)*10(D) mm outline dimension and industrial-grade wide temperature range (-20℃ to 70℃), it is ideal for industrial HMI, medical equipment, POS terminals, and professional display systems.
Technical Specifications
Display Type 15.0 Inch TFT LCD Module
Module Brand BOE
Model Number DV15X0M-N10
Panel Size 15.0 Inch
Aspect Ratio 4:3 (H:V)
Resolution 1024(RGB) * 768 Pixels, XGA, 85PPI
Display Mode ADS, Normally Black, Transmissive
Viewing Angle 89/89/89/89 (Typ.)
Interface LVDS (1 ch, 8-bit), 20-pin Connector
Brightness 350 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.)
Response Time 30 m/s (Typ.)
Color Depth 16.7M, 72% NTSC
Backlight 12S4P WLED, 50K hours lifespan, With LED Driver
Power Consumption 10.8W (Typ.)
Operating Temperature -20℃ ~ +70℃
Storage Temperature -20℃ ~ +70℃
Outline Dimension 326.5(W) * 253.5(H) * 10(D) mm
Active Area (AA) 304.128(W) * 228.096(H) mm
Weight 1.2KG
Compliance RoHS Compliant
Key Features
  • 15.0-inch TFT LCD with 1024*768 XGA resolution and 85PPI for sharp, clear industrial display
  • 4:3 aspect ratio and 89-degree wide viewing angle for optimal visibility in all directions
  • ADS normally black transmissive display mode for high contrast and stable image performance
  • LVDS (1 ch, 8-bit) 20-pin interface for reliable long-distance data transmission
  • 12S4P WLED backlight with 50K hours lifespan and built-in LED driver for long-term reliability
  • 350 cd/m² high brightness and 1000:1 contrast ratio for clear visibility in various lighting conditions
  • 16.7M colors and 72% NTSC color gamut for accurate color reproduction
  • Industrial-grade wide temperature range (-20℃ to 70℃) suitable for harsh operating environments
  • Robust 326.5*253.5*10 mm outline dimension for stable mechanical integration
  • BOE original panel with proven quality and reliability for industrial and commercial applications
  • RoHS compliant, meeting international environmental and safety standards
Applications
  • Industrial control panels and human-machine interface (HMI) systems
  • Medical monitoring equipment and diagnostic display devices
  • POS terminals and commercial retail display systems
  • Professional industrial instruments and measurement equipment
  • Automotive infotainment and in-vehicle information displays
  • Security monitoring and surveillance display systems
  • Office automation and commercial digital signage
  • Custom industrial display projects and embedded system solutions
Product Documentation
BOE DV150X0M N10 15 Inch 43 Industrial LCD Display 1024x768 XGA 350cdm² LVDS Interface 0

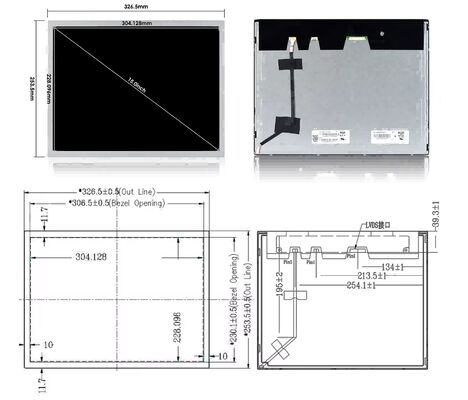

Technical drawing and dimensions
BOE DV150X0M N10 15 Inch 43 Industrial LCD Display 1024x768 XGA 350cdm² LVDS Interface 1
Application examples in industrial and consumer devices
BOE DV150X0M N10 15 Inch 43 Industrial LCD Display 1024x768 XGA 350cdm² LVDS Interface 2
Partner companies and collaborative projects
BOE DV150X0M N10 15 Inch 43 Industrial LCD Display 1024x768 XGA 350cdm² LVDS Interface 3
Manufacturing facility and quality control environment
BOE DV150X0M N10 15 Inch 43 Industrial LCD Display 1024x768 XGA 350cdm² LVDS Interface 4
Shipping methods and delivery information
Company Profile
Shenzhen Yingzhanying Technology Co., Ltd. (YZY) was founded in January 2018 and is located in Shenzhen, China--a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry.
Products include Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, and financial services.
Frequently Asked Questions
How do you control product quality?
Each product undergoes strict testing before shipping following MIL-STD-105E sampling plan and multiple reliability tests including temperature cycling, vibration test and display performance validation.
Do you supply samples?
Yes, we provide samples for customer evaluation and functional testing.
What is the delivery time?
Typically 7 working days after payment confirmation for standard orders. Custom orders may require additional lead time.
What is the minimum order quantity?
1 piece minimum order quantity for sample orders, with flexible MOQ for bulk production.
What if we receive missing or defective items?
Contact us immediately for investigation and prompt resolution. We offer replacement or refund for confirmed quality issues.
What are your main products?
Comprehensive range including LCD modules, LCM, touch modules, LCD panels, FPC boards and optoelectronic materials for industrial, medical, automotive and consumer electronics applications.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments, Western Union, and PayPal for small orders.
What shipping methods do you offer?
DHL, FedEx, UPS and China Post shipping services available. Express delivery is available for urgent orders.
