1.3 Inch EPD Module 144x200 Resolution B W Display SPI I2C Interface SSD1680 Driver
  • name
  • name
  • name
  • name

1.3 Inch EPD Module 144x200 Resolution B W Display SPI I2C Interface SSD1680 Driver

MOQ: 5 pieces
Price: $4.88-7.99/pieces
Standard Packaging: 15*18*8
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YE0130S2-X1
Highlight:

1.3 inch EPD module with SPI interface

,

144x200 resolution E Paper Display

,

SSD1680 driver B W display

Product Description
1.3 Inch 144x200 BWR EPD Module SPI Interface Ultra Low Power Electronic Paper Display
High performance 1.3 inch Active Matrix Electrophoretic Display AMEPD module with 144x200 resolution 188 PPI black white red three color display capabilities SSD1680 driver IC SPI serial interface and ultra low power consumption. Designed for electronic shelf label system smart tags IoT devices portable terminals and embedded system applications with bi-stable display and wide commercial temperature range operation.
Product Overview
This 1.3 inch EPD electronic paper display module adopts Active Matrix Electrophoretic Display AMEPD technology delivering 144(H)x200(V) resolution with 188 PPI high pixel density and 0.135×0.135mm pixel pitch for clear and delicate image quality. Featuring black white red three color display capabilities and bi-stable display mode it achieves high reflectance high contrast ratio and ultra wide viewing angle with zero power consumption for static image display. Equipped with 3 line 4 line selectable SPI serial interface and built in SSD1680 driver IC with on chip display RAM temperature sensor and waveform OTP it supports 2.4V to 3.6V wide voltage input with ultra low sleep current of only 3uA and peak update current of 8mA. With ultra thin 0.9mm thickness compact 24.69x36.64mm outline dimension light 1.6g weight hard coat antiglare surface treatment commercial operating temperature range of 0 to 50℃ and storage temperature range of -25 to 50℃ it is RoHS2.0 HF REACH compliant and ideal for electronic shelf labels smart tags IoT sensors portable devices and miniature embedded applications with reliable 5 year design life and 12+1 month warranty.
Technical Specifications
Display Type 1.3 Inch Active Matrix Electrophoretic Display EPD Module
Panel Size 1.3 Inch Diagonal
Resolution 144(H) × 200(V) Pixels
PPI 188 Pixels Per Inch
Pixel Pitch 0.135 × 0.135 mm
Pixel Configuration Rectangle
Display Capability BWR Black White Red Full Display
Active Area 19.44(H) × 27.00(V) mm
Outline Dimensions 24.69(H) × 36.64(V) × 0.9(D) mm Without masking film
Weight 1.6±0.2 g
Surface Treatment Hard coat antiglare surface
Driver IC SSD1680
Interface Type SPI 3 line 4 line selectable serial interface
Operating Voltage 2.4V ~ 3.6V Typ. 3.0V
Peak Update Current Max. 8 mA
Deep Sleep Current Max. 3 uA VCC=3.0V
Panel Update Power Consumption Typ. 80 mAs 25℃
Contrast Ratio High contrast
Viewing Angle Ultra wide viewing angle
Operating Temperature 0 ~ 50℃ 45~70 %RH
Storage Temperature -25 ~ 50℃ 45~70 %RH
Display Mode Bi stable display pure reflective mode
On chip Features Display RAM temperature sensor waveform OTP oscillator DC DC booster
Design Life 5 years 25℃ 60%RH operation
Connector 24Pin 0.5mm ZIF Socket
Compliance RoHS2.0+HF+REACH Compliant
Key Features
  • 1.3 inch AMEPD electronic paper module with 144x200 resolution and 188 PPI high pixel density for clear display
  • BWR black white red three color display capabilities for rich visual presentation in retail and industrial applications
  • Bi stable display mode with zero power consumption for static images ultra low power consumption for battery powered devices
  • High reflectance high contrast ratio and ultra wide viewing angle for clear visibility under natural light
  • Integrated SSD1680 driver IC with on chip display RAM temperature sensor and waveform OTP for stable performance
  • SPI 3 line 4 line selectable interface for flexible connection with MCU and embedded control systems
  • 2.4V to 3.6V wide operating voltage 3uA sleep current and 8mA peak update current for long battery life
  • Ultra thin 0.9mm profile and compact mechanical design for space constrained smart devices
  • Light weight 1.6g suitable for wearable devices portable terminals and miniaturized products
  • Hard coat antiglare surface for scratch resistance anti reflection and better outdoor readability
  • Built in oscillator DC DC converter and voltage regulator reducing external circuit components
  • Wide commercial temperature range 0 to 50℃ for stable operation in various environments
  • Passes high and low temperature test humidity test vibration drop ESD and UV resistance tests
  • RoHS2.0 HF REACH compliant meets global environmental protection and export requirements
  • 5 year long design life and 12+1 month warranty for reliable long term application
Applications
  • Electronic Shelf Label ESL system for retail stores supermarkets and shopping malls
  • Smart price tags and product information labels for retail and chain stores
  • IoT smart sensors and wireless monitoring display terminals
  • Smart tags asset tracking and logistics identification labels
  • Portable handheld devices and low power intelligent display terminals
  • Embedded systems and industrial control small display interface
  • Smart home mini display and low power status indicator
  • Medical small instruments and portable health monitoring devices
  • Wearable electronic devices and lightweight information display
  • Industrial data loggers and battery powered field display equipment

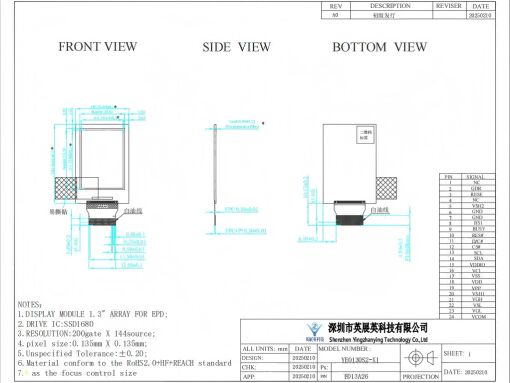

Product Documentation
1.3 Inch EPD Module 144x200 Resolution B W Display SPI I2C Interface SSD1680 Driver 0

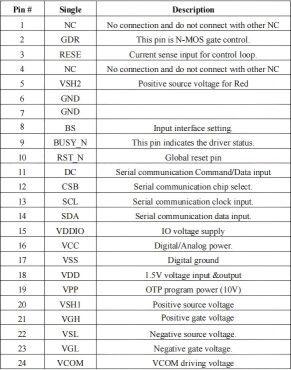

Pin Definition
1.3 Inch EPD Module 144x200 Resolution B W Display SPI I2C Interface SSD1680 Driver 1
Application
1.3 Inch EPD Module 144x200 Resolution B W Display SPI I2C Interface SSD1680 Driver 2
Partner companies and collaborative projects
1.3 Inch EPD Module 144x200 Resolution B W Display SPI I2C Interface SSD1680 Driver 3
Manufacturing facility and quality control environment
1.3 Inch EPD Module 144x200 Resolution B W Display SPI I2C Interface SSD1680 Driver 4
Shipping methods and delivery information
Company Profile
Shenzhen Yingzhanying Technology Co., Ltd. (YZY) was founded in January 2018 and is located in Shenzhen, China--a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry.
Products include Liquid Crystal Display (LCD) modules (LCM), Electrophoretic Display (EPD) electronic paper modules, touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services, retail ESL systems and IoT smart devices.
Frequently Asked Questions
How do you control product quality?
Each EPD module undergoes strict shipment inspection and multiple reliability tests including high low temperature operation storage high temperature high humidity test temperature cycle vibration test drop impact test UV exposure resistance and ESD test following strict defect size and quantity standards for active and border areas to ensure stable performance.
Do you supply samples?
Yes we provide samples for customer evaluation and functional testing to verify compatibility with your application system and ensure it meets your specific requirements before bulk order.
What is the delivery time?
Typically 7 working days after payment confirmation for standard orders. Custom orders may require additional lead time based on specific requirements and production schedule.
What is the minimum order quantity?
5 piece minimum order quantity for sample orders with flexible MOQ for bulk production and competitive pricing for large quantity orders to meet different customer needs.
What if we receive missing or defective items?
Contact us immediately with detailed photos and information for investigation and prompt resolution. We offer replacement or refund for confirmed quality issues in accordance with our warranty policy to ensure customer satisfaction.
What are your main EPD electronic paper products?
Comprehensive range of EPD modules including 0.97 inch BWRY 1.3 inch BWR various sizes of monochrome and color electronic paper displays with SPI I2C interface designed for ESL IoT wearables and smart tag applications with ultra low power consumption and stable performance.
What payment methods do you accept?
We accept T/T Telegraphic Transfer payments Western Union and PayPal for small orders and sample purchases with flexible payment terms for bulk orders to facilitate international trade.
What shipping methods do you offer?
DHL FedEx UPS and China Post shipping services available. Express delivery is available for urgent sample orders with standard shipping options for bulk orders to reduce costs and meet different delivery time requirements.
How to achieve the best display effect of the EPD module?
It is recommended to update the display once a day to ensure optimal performance and avoid image sticking. Avoid long term storage in extreme temperature and humidity environments humidity below 45%RH or above 70%RH is not recommended for long term use and follow the handling and mounting precautions specified in the product manual.
What is the packaging specification for bulk orders?
Standard packaging 12 pcs tray with products and 1 pcs empty tray per full carton the last carton with less than 12pcs tray will be filled with appropriate EPE to protect the products during transportation ensuring safe delivery to customers worldwide.
Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

M
Martinez Jao
United Kingdom Dec 24.2025
trustpilot.com
Helpful (36)
The brightness is good. Even under direct sunlight, the display content can still be seen
D
David K.
United States Dec 20.2025
Helpful (1)
The built-in ESP32 makes this display module very convenient for development. The 2.4 inch screen is clear, and the touch response is stable when testing with Arduino IDE. Suitable for IoT and HMI prototype projects.
C
Chiraag Hebbar
United States Dec 14.2025
trustpilot.com
Helpful (15)
very excellent
Tags:

Color E Ink Screen,

E Paper E Ink Display,

Electronic Paper Display

Recommended Products
11.6 Inch Electronic Paper Display 640×960 Black / White / Red 3 Color E Ink Display

11.6 Inch Electronic Paper Display 640×960 Black / White / Red 3 Color E Ink Display

Contact Now
11.6 Inch E Paper Display 960×640 Resolution Black / White 2 Color E Ink Screen

11.6 Inch E Paper Display 960×640 Resolution Black / White 2 Color E Ink Screen

Contact Now
10.2 Inch Electronic Paper Display 640×960 Black / White / Red 3 Color E Ink Screen

10.2 Inch Electronic Paper Display 640×960 Black / White / Red 3 Color E Ink Screen

Contact Now
3.5 Inch E Paper Display 184*384 Resolution 24 Pin Low Power Consumption E Ink Display

3.5 Inch E Paper Display 184*384 Resolution 24 Pin Low Power Consumption E Ink Display

Contact Now
9.7 Inch E Ink Display 960×672 Resolution Black White Red Color E Ink Screen

9.7 Inch E Ink Display 960×672 Resolution Black White Red Color E Ink Screen

Contact Now
4.2 Inch E paper Display 400×300 Resolution Black White Red Yellow 4 Color E Ink Screen

4.2 Inch E paper Display 400×300 Resolution Black White Red Yellow 4 Color E Ink Screen

Contact Now
2.9 Inch E Ink Display 128×296 Resolution 24 Pin Ultra Low Power 2 Color E Ink Screen

2.9 Inch E Ink Display 128×296 Resolution 24 Pin Ultra Low Power 2 Color E Ink Screen

Contact Now
Products
PRODUCTS DETAILS
Products

HDMI LCD Display

TFT LCD Module

Rectangular LCD Display

Round LCD Display

Square LCD Display

Bar Type LCD Display

Industrial Monitor

Portable Monitor

HDMI Driver Board

E Paper Display

Monochrome LCD Display

TFT LCD Touch Screen

Digital Photo Frame

Commercial Display

Laptop LCD Screen

OLED Display Module

ESP32 Display Module
1.3 Inch EPD Module 144x200 Resolution B W Display SPI I2C Interface SSD1680 Driver
  • name
  • name
  • name
  • name
1.3 Inch EPD Module 144x200 Resolution B W Display SPI I2C Interface SSD1680 Driver
MOQ: 5 pieces
Price: $4.88-7.99/pieces
Standard Packaging: 15*18*8
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YE0130S2-X1
Minimum Order Quantity:
5 pieces
Price:
$4.88-7.99/pieces
Packaging Details:
15*18*8
Delivery Time:
14-60 days
Payment Terms:
T/T
Supply Ability:
10000 pieces
Highlight

1.3 inch EPD module with SPI interface

,

144x200 resolution E Paper Display

,

SSD1680 driver B W display

Product Description
1.3 Inch 144x200 BWR EPD Module SPI Interface Ultra Low Power Electronic Paper Display
High performance 1.3 inch Active Matrix Electrophoretic Display AMEPD module with 144x200 resolution 188 PPI black white red three color display capabilities SSD1680 driver IC SPI serial interface and ultra low power consumption. Designed for electronic shelf label system smart tags IoT devices portable terminals and embedded system applications with bi-stable display and wide commercial temperature range operation.
Product Overview
This 1.3 inch EPD electronic paper display module adopts Active Matrix Electrophoretic Display AMEPD technology delivering 144(H)x200(V) resolution with 188 PPI high pixel density and 0.135×0.135mm pixel pitch for clear and delicate image quality. Featuring black white red three color display capabilities and bi-stable display mode it achieves high reflectance high contrast ratio and ultra wide viewing angle with zero power consumption for static image display. Equipped with 3 line 4 line selectable SPI serial interface and built in SSD1680 driver IC with on chip display RAM temperature sensor and waveform OTP it supports 2.4V to 3.6V wide voltage input with ultra low sleep current of only 3uA and peak update current of 8mA. With ultra thin 0.9mm thickness compact 24.69x36.64mm outline dimension light 1.6g weight hard coat antiglare surface treatment commercial operating temperature range of 0 to 50℃ and storage temperature range of -25 to 50℃ it is RoHS2.0 HF REACH compliant and ideal for electronic shelf labels smart tags IoT sensors portable devices and miniature embedded applications with reliable 5 year design life and 12+1 month warranty.
Technical Specifications
Display Type 1.3 Inch Active Matrix Electrophoretic Display EPD Module
Panel Size 1.3 Inch Diagonal
Resolution 144(H) × 200(V) Pixels
PPI 188 Pixels Per Inch
Pixel Pitch 0.135 × 0.135 mm
Pixel Configuration Rectangle
Display Capability BWR Black White Red Full Display
Active Area 19.44(H) × 27.00(V) mm
Outline Dimensions 24.69(H) × 36.64(V) × 0.9(D) mm Without masking film
Weight 1.6±0.2 g
Surface Treatment Hard coat antiglare surface
Driver IC SSD1680
Interface Type SPI 3 line 4 line selectable serial interface
Operating Voltage 2.4V ~ 3.6V Typ. 3.0V
Peak Update Current Max. 8 mA
Deep Sleep Current Max. 3 uA VCC=3.0V
Panel Update Power Consumption Typ. 80 mAs 25℃
Contrast Ratio High contrast
Viewing Angle Ultra wide viewing angle
Operating Temperature 0 ~ 50℃ 45~70 %RH
Storage Temperature -25 ~ 50℃ 45~70 %RH
Display Mode Bi stable display pure reflective mode
On chip Features Display RAM temperature sensor waveform OTP oscillator DC DC booster
Design Life 5 years 25℃ 60%RH operation
Connector 24Pin 0.5mm ZIF Socket
Compliance RoHS2.0+HF+REACH Compliant
Key Features
  • 1.3 inch AMEPD electronic paper module with 144x200 resolution and 188 PPI high pixel density for clear display
  • BWR black white red three color display capabilities for rich visual presentation in retail and industrial applications
  • Bi stable display mode with zero power consumption for static images ultra low power consumption for battery powered devices
  • High reflectance high contrast ratio and ultra wide viewing angle for clear visibility under natural light
  • Integrated SSD1680 driver IC with on chip display RAM temperature sensor and waveform OTP for stable performance
  • SPI 3 line 4 line selectable interface for flexible connection with MCU and embedded control systems
  • 2.4V to 3.6V wide operating voltage 3uA sleep current and 8mA peak update current for long battery life
  • Ultra thin 0.9mm profile and compact mechanical design for space constrained smart devices
  • Light weight 1.6g suitable for wearable devices portable terminals and miniaturized products
  • Hard coat antiglare surface for scratch resistance anti reflection and better outdoor readability
  • Built in oscillator DC DC converter and voltage regulator reducing external circuit components
  • Wide commercial temperature range 0 to 50℃ for stable operation in various environments
  • Passes high and low temperature test humidity test vibration drop ESD and UV resistance tests
  • RoHS2.0 HF REACH compliant meets global environmental protection and export requirements
  • 5 year long design life and 12+1 month warranty for reliable long term application
Applications
  • Electronic Shelf Label ESL system for retail stores supermarkets and shopping malls
  • Smart price tags and product information labels for retail and chain stores
  • IoT smart sensors and wireless monitoring display terminals
  • Smart tags asset tracking and logistics identification labels
  • Portable handheld devices and low power intelligent display terminals
  • Embedded systems and industrial control small display interface
  • Smart home mini display and low power status indicator
  • Medical small instruments and portable health monitoring devices
  • Wearable electronic devices and lightweight information display
  • Industrial data loggers and battery powered field display equipment
Product Documentation

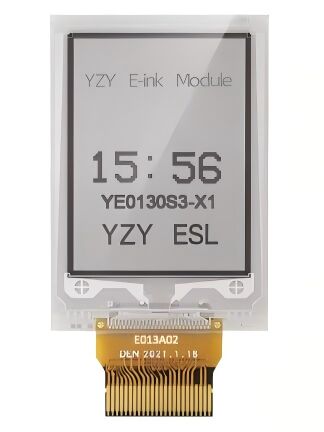

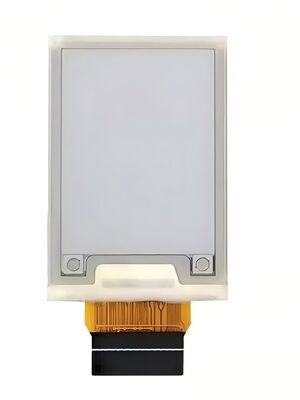

1.3 Inch EPD Module 144x200 Resolution B W Display SPI I2C Interface SSD1680 Driver 0
Pin Definition
1.3 Inch EPD Module 144x200 Resolution B W Display SPI I2C Interface SSD1680 Driver 1
Application
1.3 Inch EPD Module 144x200 Resolution B W Display SPI I2C Interface SSD1680 Driver 2
Partner companies and collaborative projects
1.3 Inch EPD Module 144x200 Resolution B W Display SPI I2C Interface SSD1680 Driver 3
Manufacturing facility and quality control environment
1.3 Inch EPD Module 144x200 Resolution B W Display SPI I2C Interface SSD1680 Driver 4
Shipping methods and delivery information
Company Profile
Shenzhen Yingzhanying Technology Co., Ltd. (YZY) was founded in January 2018 and is located in Shenzhen, China--a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry.
Products include Liquid Crystal Display (LCD) modules (LCM), Electrophoretic Display (EPD) electronic paper modules, touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services, retail ESL systems and IoT smart devices.
Frequently Asked Questions
How do you control product quality?
Each EPD module undergoes strict shipment inspection and multiple reliability tests including high low temperature operation storage high temperature high humidity test temperature cycle vibration test drop impact test UV exposure resistance and ESD test following strict defect size and quantity standards for active and border areas to ensure stable performance.
Do you supply samples?
Yes we provide samples for customer evaluation and functional testing to verify compatibility with your application system and ensure it meets your specific requirements before bulk order.
What is the delivery time?
Typically 7 working days after payment confirmation for standard orders. Custom orders may require additional lead time based on specific requirements and production schedule.
What is the minimum order quantity?
5 piece minimum order quantity for sample orders with flexible MOQ for bulk production and competitive pricing for large quantity orders to meet different customer needs.
What if we receive missing or defective items?
Contact us immediately with detailed photos and information for investigation and prompt resolution. We offer replacement or refund for confirmed quality issues in accordance with our warranty policy to ensure customer satisfaction.
What are your main EPD electronic paper products?
Comprehensive range of EPD modules including 0.97 inch BWRY 1.3 inch BWR various sizes of monochrome and color electronic paper displays with SPI I2C interface designed for ESL IoT wearables and smart tag applications with ultra low power consumption and stable performance.
What payment methods do you accept?
We accept T/T Telegraphic Transfer payments Western Union and PayPal for small orders and sample purchases with flexible payment terms for bulk orders to facilitate international trade.
What shipping methods do you offer?
DHL FedEx UPS and China Post shipping services available. Express delivery is available for urgent sample orders with standard shipping options for bulk orders to reduce costs and meet different delivery time requirements.
How to achieve the best display effect of the EPD module?
It is recommended to update the display once a day to ensure optimal performance and avoid image sticking. Avoid long term storage in extreme temperature and humidity environments humidity below 45%RH or above 70%RH is not recommended for long term use and follow the handling and mounting precautions specified in the product manual.
What is the packaging specification for bulk orders?
Standard packaging 12 pcs tray with products and 1 pcs empty tray per full carton the last carton with less than 12pcs tray will be filled with appropriate EPE to protect the products during transportation ensuring safe delivery to customers worldwide.
Tags:

Color E Ink Screen,

E Paper E Ink Display,

Electronic Paper Display

Quick link
Home Products About Us video News Cases Contact Us
Quick Contact

Address

Room 514, 5th Floor, Block B, Baogang Center, Baoyuan Road, Xixiang Sub-district, Bao 'an District, Shenzhen City

Tel

86-0755-8524744-815

13823537002
Our Newsletter
Subscribe to our newsletter for discounts and more.
Privacy Policy |  Sitemap  | China Good Quality HDMI LCD Display Supplier. Copyright © 2025-2026 Shenzhen YZY Technology Co., Ltd . All Rights Reserved.
