1.6 Inch Round TFT LCD Module with 400x400 Resolution IPS Normally Black Display and MIPI 1 Lane Interface
  • name
  • name

1.6 Inch Round TFT LCD Module with 400x400 Resolution IPS Normally Black Display and MIPI 1 Lane Interface

MOQ: 100 pcs
Price: $3.25-4.99 Piece
Payment Method: T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE，RoHS
Model Number
YVO016IWV-C02
Product Description

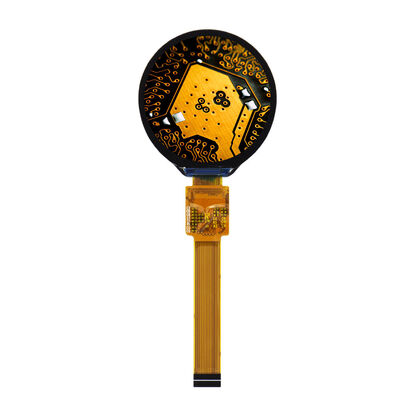

1.6 Inch 400x400 Round TFT LCD Module IPS Normally Black MIPI 1 Lane Display
Product Overview

This 1.6 inch round TFT LCD display module features 400x400 resolution, IPS transmissive normally black display mode and MIPI 1 lane interface. It supports 16.7M colors and uses ST7797 driver IC. The module offers 280 cd/m² typical luminance, 1000:1 typical contrast ratio and wide viewing angle performance. It is designed for compact round display applications without touch function.

Key Features
  • 1.6 inch round TFT LCD display module
  • 400x400 resolution for clear round UI display
  • IPS transmissive normally black display mode
  • MIPI 1 lane interface for compact high-speed connection
  • 16.7M colors for vivid image performance
  • 280 cd/m² typical brightness
  • 1000:1 typical contrast ratio
  • Slim structure with 1.89 mm thickness
Product Display
1.6 Inch Round TFT LCD Module with 400x400 Resolution IPS Normally Black Display and MIPI 1 Lane Interface 0
1.6 Inch Round TFT LCD Module with 400x400 Resolution IPS Normally Black Display and MIPI 1 Lane Interface 1

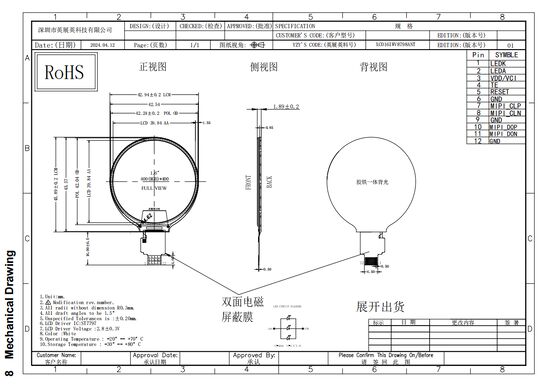

Technical Specifications
Screen Size 1.6 Inch
Resolution 400 × 400
Module Size 42.94 × 45.89 × 1.89 mm
Active Area 39.84 × 39.84 mm
Brightness 280 cd/m²
Support Color 16.7M Colors
Display Interface MIPI 1 Lane
Viewing Angle 85/85/85/85
Operating Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃
Application Scenarios
  • Smart wearable devices
  • Portable handheld instruments
  • Smart home display devices
  • Industrial compact terminals
  • Medical portable equipment
  • IoT round screen products
Company Capabilities
1.6 Inch Round TFT LCD Module with 400x400 Resolution IPS Normally Black Display and MIPI 1 Lane Interface 2
1.6 Inch Round TFT LCD Module with 400x400 Resolution IPS Normally Black Display and MIPI 1 Lane Interface 3
1.6 Inch Round TFT LCD Module with 400x400 Resolution IPS Normally Black Display and MIPI 1 Lane Interface 4
  • Extensive Inventory: Over 1,000,000 self-owned stock items including Raspberry Pi boards, LCD monitors, touchscreens, cases, cables, and accessories from leading brands.
  • Competitive Pricing: Significant price advantages to reduce purchasing costs and save valuable time. We wholesale and distribute new, original, well-known brand electronic components worldwide.
  • Quality Assurance: Equipped with internationally advanced electronic component testing equipment and scientific storage systems to ensure consistent product quality.
  • Expert Team: Elite professionals with over 20 years of industry experience and deep understanding of international market trends.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
