10.1 Inch TFT LCD Module with 1920x1080 Full HD Resolution IPS Normally Black Display and LVDS 40 Pin Interface
  • name
  • name

10.1 Inch TFT LCD Module with 1920x1080 Full HD Resolution IPS Normally Black Display and LVDS 40 Pin Interface

MOQ: 100 pcs
Price: $1.99-199.99 Piece
Payment Method: T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE，RoHS
Model Number
YVO1010VQL-L1
Highlight:

10.1 inch TFT LCD module

,

1920x1080 Full HD IPS display

,

LVDS 40 pin interface display

Product Description

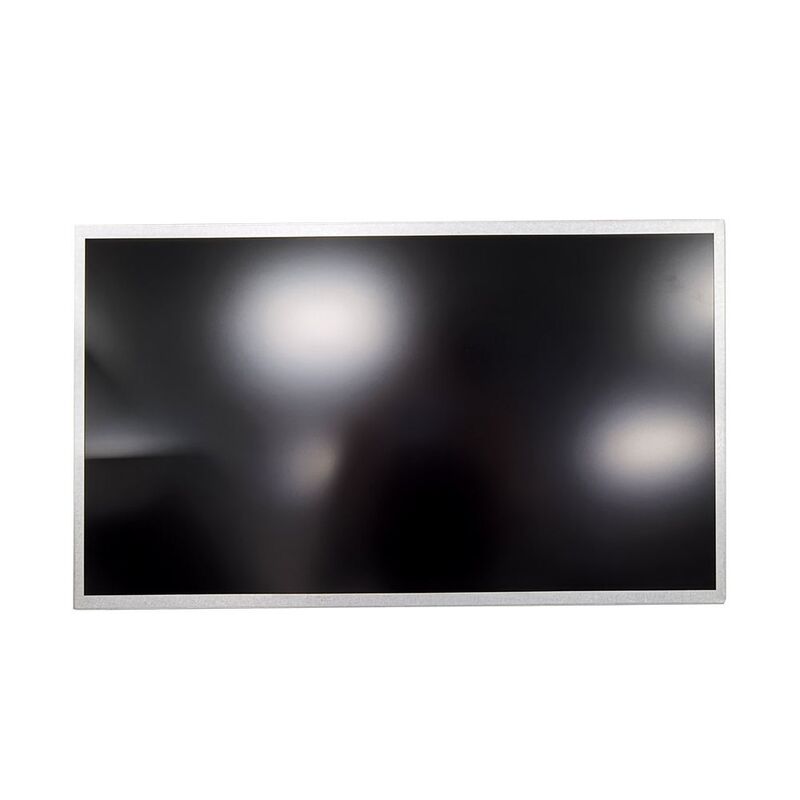

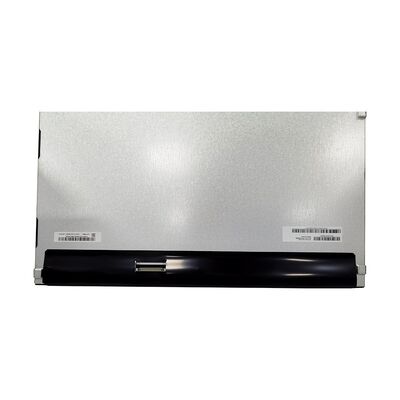

10.1 Inch FHD TFT LCD Module 1920x1080 IPS LVDS 40 Pin Full Viewing 280 Nits
Product Overview

This 10.1 inch TFT LCD display module features 1920x1080 Full HD resolution, LVDS interface and IPS normally black display mode. It supports 16.7M colors, full viewing angle performance, 1000:1 typical contrast ratio and 280 cd/m² typical brightness. With HC AG surface treatment, slim 2.8 mm module thickness and 9x4 LED backlight structure, it is suitable for embedded display systems, industrial control terminals, medical equipment, portable devices and compact Full HD display applications. Customization is available for brightness, interface, touch panel, FPC structure, cover lens and other specifications based on different project requirements.

Key Features
  • 10.1 inch Full HD TFT LCD module with 1920x1080 resolution
  • IPS normally black display mode for better color and viewing performance
  • LVDS 40 pin interface for embedded display controller systems
  • Full viewing direction suitable for horizontal and vertical installation
  • 16.7M colors for clear image and video display performance
  • HC AG surface treatment helps reduce reflection and surface scratches
  • Slim 2.8 mm module thickness for compact device design
  • Customization support for brightness, touch panel, FPC and cover lens structure
Technical Specifications
Screen Size 10.1 inches
Resolution 1920 × 1080
Module Dimensions 229.91 × 135.74 × 2.8 mm
Active Area 223.488 × 125.712 mm
Brightness 280 cd/m²
Display Interface LVDS/40 Pin
Viewing Angle 80/80/80/80
Operating Temperature 0℃ to +50℃
Storage Temperature -10℃ to +60℃
10.1 Inch TFT LCD Module with 1920x1080 Full HD Resolution IPS Normally Black Display and LVDS 40 Pin Interface 0 10.1 Inch TFT LCD Module with 1920x1080 Full HD Resolution IPS Normally Black Display and LVDS 40 Pin Interface 1
Application Scenarios
  • Industrial control terminals requiring Full HD LVDS display modules
  • Medical equipment screens with 10.1 inch high resolution display needs
  • Portable test instruments and embedded monitoring devices
  • Smart home control panels and wall-mounted display terminals
  • Video display equipment requiring 1920x1080 LCD panels
  • Custom compact display projects using 10.1 inch IPS LVDS screens
