BOE NE140FHM-N63 V8.0 14 Inch Full HD 1920×1080 TFT LCD Panel with 400 cd/m² Brightness and 2 Lane eDP Interface
  • name
  • name

BOE NE140FHM-N63 V8.0 14 Inch Full HD 1920×1080 TFT LCD Panel with 400 cd/m² Brightness and 2 Lane eDP Interface

MOQ: 100 pcs
Price: $37.99-57.99 Piece
Payment Method: T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
BOE
Certification
CE，RoHS
Model Number
NE140FHM-N63
Highlight:

14 inch Full HD LCD panel

,

BOE NE140FHM-N63 V8.0 screen

,

2 Lane eDP laptop display

Product Description
BOE NE140FHM-N63 V8.0 14 Inch FHD TFT LCD Panel 1920x1080 30 Pin eDP Laptop Screen
Product Overview

NE140FHM-N63 V8.0 is a 14.0 inch TFT LCD module from BOE, featuring Full HD 1920×1080 resolution, 2 lane eDP interface, 16.7M 8bit color depth, and sRGB 100% color gamut. With 400 cd/m² typical brightness, anti-glare surface treatment, low blue light design, and built-in LED driver, it is suitable for notebook PC screen replacement and OEM laptop display projects.

Key Features
  • 14.0 inch Full HD laptop LCD panel with 1920×1080 resolution
  • BOE original panel model NE140FHM-N63 V8.0
  • 2 lane eDP interface with 2.7Gbps link rate
  • 16.7M colors with 8bit color depth
  • sRGB 100% color gamut for better color performance
  • 400 cd/m² typical brightness for clear display output
  • Anti-glare surface treatment with 3H surface hardness
  • Thin and light structure with built-in LED driving circuit
Technical Specifications
Specification Details
Display Size 14.0 Inch
Resolution 1920 × 1080
Display Area 309.31(H) × 173.99(V) mm
Outline Size 315.01±0.3(H) × 185.67±0.3(V) × 2.4 Max mm
Brightness 400 cd/m² Typ.
Display Colors 16.7M 8bit
Signal Interface 2 Lane eDP 1.4b
Operating Temperature 0 ~ +50 °C
Storage Temperature -20 ~ +60 °C

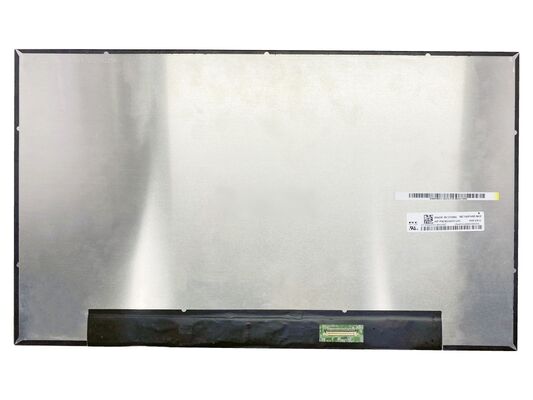

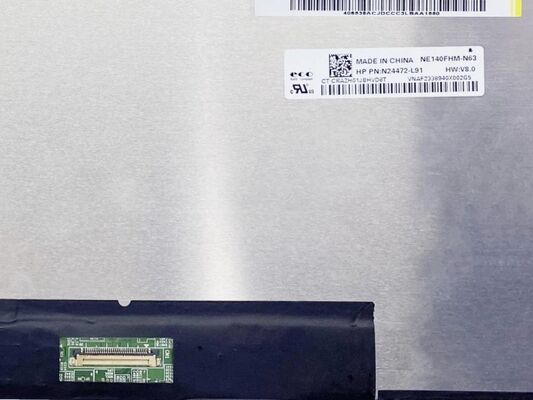

Product Display
BOE NE140FHM-N63 V8.0 14 Inch Full HD 1920×1080 TFT LCD Panel with 400 cd/m² Brightness and 2 Lane eDP Interface 0
Application Scenarios
  • Notebook PC screen replacement
  • OEM laptop display assembly
  • High color gamut laptop repair projects
  • Business notebook LCD replacement
  • Education and office laptop maintenance
  • Bulk supply for laptop spare parts distributors
Company Profile
BOE NE140FHM-N63 V8.0 14 Inch Full HD 1920×1080 TFT LCD Panel with 400 cd/m² Brightness and 2 Lane eDP Interface 1 BOE NE140FHM-N63 V8.0 14 Inch Full HD 1920×1080 TFT LCD Panel with 400 cd/m² Brightness and 2 Lane eDP Interface 2 BOE NE140FHM-N63 V8.0 14 Inch Full HD 1920×1080 TFT LCD Panel with 400 cd/m² Brightness and 2 Lane eDP Interface 3
Company Capabilities

Extensive Inventory: Over 1,000,000 self-owned stock items including Raspberry Pi boards, LCD monitors, touchscreens, cases, cables, and accessories from leading brands.

Competitive Pricing: Significant price advantages to reduce purchasing costs and save valuable time. We wholesale and distribute new, original, well-known brand electronic components worldwide.

Quality Assurance: Equipped with internationally advanced electronic component testing equipment and scientific storage systems to ensure consistent product quality.

Expert Team: Elite professionals with over 20 years of industry experience and deep understanding of international market trends.

Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
BOE NE140FHM-N63 V8.0 14 Inch Full HD 1920×1080 TFT LCD Panel with 400 cd/m² Brightness and 2 Lane eDP Interface 4
