Monochrome 16x2 COB Character LCD Module ST7066U IC 5V 1602H

Products

Monochrome 16x2 COB Character LCD Module ST7066U IC 5V 1602H

MOQ:	5 pieces
Price:	$1.22-1.61/pieces
Standard Packaging:	10105
Delivery Period:	14-60 days
Payment Method:	T/T
Supply Capacity:	10000 pieces

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

Guangdong, China

Brand Name

Certification

CE, ROHS

Model Number

YMC1602SB-X33

Highlight:

16x2 COB character LCD module

ST7066U IC 5V LCD display

1602H monochrome LCD module

Product Description

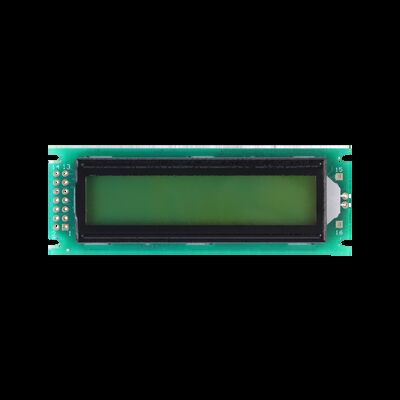

16x2 COB Character LCD Module Monochrome STN Yellow-Green Positive ST7066U IC 5V

This industrial grade 16x2 character LCD module adopts advanced COB (Chip On Board) packaging design, STN yellow-green positive transmissive display mode with high contrast monochrome effect, driven by professional ST7066U driver IC. It features 5.0V DC logic supply voltage, 4.7V DC LCD driving voltage, 16(characters)×2(line) standard display format, 8-bit parallel 16-pin interface, 1/16 Duty & 1/5 Bias driving method and 6 O'clock viewing direction. Equipped with yellow-green backlight (3.0V±0.2V, IF=15mA), it has excellent wide temperature adaptability (-20~70℃ operating, -30~80℃ storage) with ±0.2mm precise tolerance and RoHS compliance. The module owns stable performance and high reliability, widely applied in industrial control, measuring instruments, smart home appliances, embedded systems and various monochrome display scenarios.

Product Specifications

Display Type	Monochrome COB Character LCD Module (STN/Yellow-Green, Positive, Transmissive)
Part No.	1602H
Model No.	YMC1602SB-X33
Display Format	16(characters) × 2(line)
Display Color	Yellow-Green (STN Y/G)
Driver IC	ST7066U
Connection Type	COB (Chip On Board)
Interface Type	8-bit Parallel Interface (16-pin)
Pin Number & Function	16PIN (1-VDD, 2-VSS, 3-VO, 4-RS, 5-R/W, 6-E, 7-DB0, 8-DB1, 9-DB2, 10-DB3, 11-DB4, 12-DB5, 13-DB6, 14-DB7, 15-BLA, 16-BLK)
Logic Supply Voltage (VDD)	5.0V DC
LCD Driving Voltage	4.7V DC
Driving Method	1/16 Duty, 1/5 Bias
Operating Temperature	-20℃ ~ +70℃
Storage Temperature	-30℃ ~ +80℃
Viewing Direction	6 O'clock
Backlight Type & Parameter	Yellow-Green Backlight (3.0V±0.2V, IF=15mA)
Viewing Area (V/A)	64.51mm(W) × 14.65mm(H)
Effective Display Area (A/A)	55.70mm(W) × 10.24mm(H)
Ulteriorly Tolerance	±0.2mm
Connector Type	PIN
Compliance	RoHS Compliant

Product Features

16×2 character COB packaging design, STN yellow-green positive transmissive display, clear and eye-friendly monochrome display effect
Professional ST7066U driver IC, 1/16 Duty & 1/5 Bias driving method, strong anti-interference and stable long-term operation
8-bit parallel 16-pin standard interface with customized pin definition, simple circuit connection and high compatibility with embedded control systems
Dual voltage design: 5.0V logic supply & 4.7V LCD driving voltage, matching standard industrial power supply specifications
6 O'clock optimized viewing direction, no visual distortion, perfect for front-facing operation and observation scenarios
Integrated yellow-green backlight (3.0V±0.2V, IF=15mA), uniform brightness and low power consumption, suitable for low-light working environments
Excellent wide temperature adaptability (-20~70℃ operating, -30~80℃ storage), reliable performance in harsh industrial conditions
High precision mechanical parameters with ±0.2mm ulteriorly tolerance, ensuring consistent product assembly and stable quality
Standard PIN connector type, easy for installation and replacement in various electronic products
RoHS compliant, environmentally friendly material selection, meeting global market import and export standards
COB chip-on-board structure, high structural reliability, anti-vibration and anti-fall, suitable for industrial long-term use
