YBC028EGS-Q2 2.8-inch SPI Display LCD Module with 240*320 Resolution and Capacitive Touch Screen
  • name
  • name
  • name

YBC028EGS-Q2 2.8-inch SPI Display LCD Module with 240*320 Resolution and Capacitive Touch Screen

MOQ: 500
Price: $9.8-12/pieces(MSP2834);$7.2-8.5/pieces(MSP2833)
Standard Packaging: 16*15*6(cm)/47g
Delivery Period: 30-45days
Payment Method: T/T
Supply Capacity: 50K/Month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE/ROHS
Model Number
YBC028EGS-Q2(MSP2834）/YBN028EGS-Q2(MSP2833)
Type:
SPI Display
Display Size:
2.8 Inch
Supplier Type:
Factory
Highlight:

2.8-inch SPI LCD display module

,

240x320 resolution capacitive touch screen

,

HDMI LCD display with touch screen

Product Description
YBC028EGS-Q2 2.8-inch IPS SPI Display with 240×320 Resolution and Capacitive Touch Screen
Product Overview

The YBC028EGS-Q2 is a high-performance 2.8-inch SPI display LCD module featuring 240×320 resolution and SPI interface for embedded applications with capacitive touch screen.

MSP2833 and MSP2834 are two 2.8-inch IPS color LCD display modules, with MSP2833 without a touch screen and MSP2834 with a capacitive touch screen. The display module adopts a 4-wire SPI interface, which only requires 5 IOs to achieve display. The 240×320 standard definition resolution can be applied to various products that require screen display function.

YBC028EGS-Q2 2.8-inch SPI Display LCD Module with 240*320 Resolution and Capacitive Touch Screen 0
Key Features
  • 2.8-inch color screen with 240×320 resolution of 65K colors and rich display colors
  • Upgrade adopts IPS full view panel with excellent viewing angles
  • On-board level conversion circuit, compatible with 5V and 3.3V MCU
  • 4-wire SPI serial bus to save I/O pins
  • Optional capacitive touch/no touch function for modules
  • Module input supports 2.54 pin interface and FPC extension interface
  • Equipped with micro TF card slot for easy storage expansion
  • Provide rich example learning programs (ESP32/STM32/Arduino UNO&Mage2560/C51/CH32)
  • Provide low-level driver technical support and updated WIKI information online
  • Multiple tests for module aging can meet military level standards, supporting long-term stable operation
Technical Specifications
Specification Details
Size 2.8 inch
SKU MSP2833 (No Touch); MSP2834 (With Capacitive Touch)
Resolution 240×320 dots
Module Interface 4-wire SPI interface
Display Color 262K
Active Area 43.20(W)×57.60(H) mm
Dimensions No Touch Screen: 50.0(W)×86.0(H)×12.78(D) mm (including Pin Header)
With Touch Screen: 50.0(W)×86.0(H)×14.28(D) mm (including Pin Header)
View Angle ALL 0'CLOCK
VCC Power Voltage 5V
Luminance 230 Cd/m² (no touch); 190 Cd/m² (with touch)
Panel Driver IC ILI9341V
Touch Screen Type Capacitive Touch Screen
Driver IC FT6336G
Power Consumption 0.4W
Interface 14P 2.54mm spacing Header and 0.5mm spacing FPC seat
Logic IO Port Voltage 5V (TTL)
Weight No touch: 39g / With touch: 47g

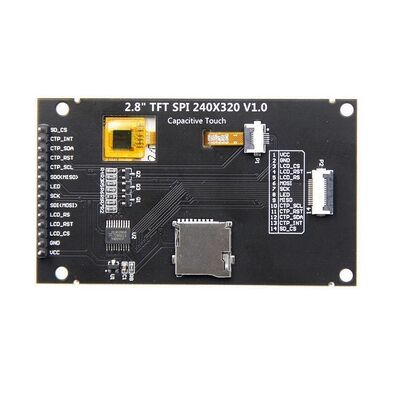

Interface Description
YBC028EGS-Q2 2.8-inch SPI Display LCD Module with 240*320 Resolution and Capacitive Touch Screen 1 YBC028EGS-Q2 2.8-inch SPI Display LCD Module with 240*320 Resolution and Capacitive Touch Screen 2
YBC028EGS-Q2 Interface Pinout
Number Pin Label Description
1 VCC Power positive
2 GND Power ground
3 LCD_CS LCD selection control signal, Low level active
4 LCD_RST LCD reset control signal, Low level reset
5 LCD_RS LCD command / data selection control signal High level: data, low level: command
6 SDI(MOSI) SPI bus write data signal (SD card and LCD screen used together)
7 SCK SPI bus clock signal (SD card and LCD screen used together)
8 LED LCD backlight control signal (If you need control, please connect the pins. If you don't need control, you can skip it)
9 SDO(MISO) SPI bus read data signal (SD card and LCD screen used together)
10 CTP_SCL Capacitive touch screen IIC bus clock signal (modules without touch screens do not need to be connected)
11 CTP_RST Capacitor touch screen reset control signal, low-level reset (modules without touch screens do not need to be connected)
12 CTP_SDA Capacitive touch screen IIC bus data signal (modules without touch screens do not need to be connected)
13 CTP_INT Capacitor touch screen IIC bus touch interrupt signal, when generating touch, input low level to the main control (modules without touch screens do not need to be connected)
14 SD_CS SD card selection control signal, low level active (without SD card function, can be disconnected)

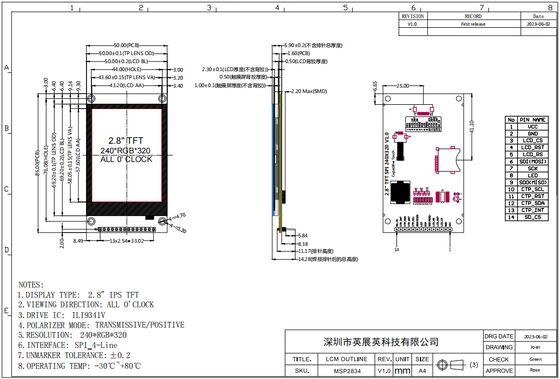

Product Dimensions
YBC028EGS-Q2 2.8-inch SPI Display LCD Module with 240*320 Resolution and Capacitive Touch Screen 3
Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

M
Martinez Jao
United Kingdom Dec 24.2025
trustpilot.com
Helpful (36)
The brightness is good. Even under direct sunlight, the display content can still be seen
G
Gary Carr
Ireland Dec 23.2025
trustpilot.com
Helpful (18)
Excellent product, excellent service!
C
Chiraag Hebbar
United States Dec 14.2025
trustpilot.com
Helpful (15)
very excellent
