HKC MB140CS01-3 14 Inch Full HD 1920x1080 TFT LCD Panel with 2 Lane eDP 1.2 Interface and Anti-Glare Surface
  • name
  • name

HKC MB140CS01-3 14 Inch Full HD 1920x1080 TFT LCD Panel with 2 Lane eDP 1.2 Interface and Anti-Glare Surface

MOQ: 100 pcs
Price: $27.99-41.99 Piece
Payment Method: ,T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
HKC
Certification
CE，RoHS
Model Number
MB140CS01-3
Highlight:

14 inch Full HD LCD panel

,

HKC MB140CS01-3 TFT screen

,

eDP 1.2 laptop LCD screen

Product Description
HKC MB140CS01-3 14 Inch FHD TFT LCD Panel 1920x1080 30 Pin 2Lane eDP Laptop Screen
Product Overview

MB140CS01-3 is a 14.0 inch TFT LCD panel from HKC, featuring Full HD 1920×1080 resolution and 2 lane eDP 1.2 interface. It supports 16.7M colors with 6bits plus Hi FRC, anti-glare surface treatment, and built-in LED driving circuit, making it suitable for display replacement and OEM integration projects.

Key Features
  • 14.0 inch Full HD TFT LCD panel with 1920×1080 resolution
  • 2 lane eDP 1.2 interface with stable high speed transmission
  • 16.7M colors with 6bits plus Hi FRC color depth
  • Typical brightness reaches 300 cd per square meter
  • Wide viewing angle up to 85 degrees in all directions
  • Anti glare surface treatment for better viewing comfort
  • Built in LED driving circuit for easier system integration
  • Slim structure with low power consumption for compact devices

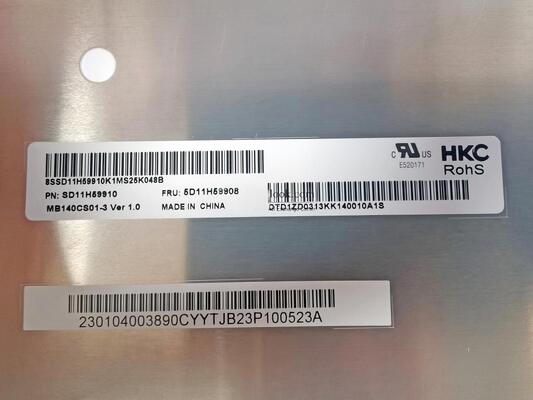

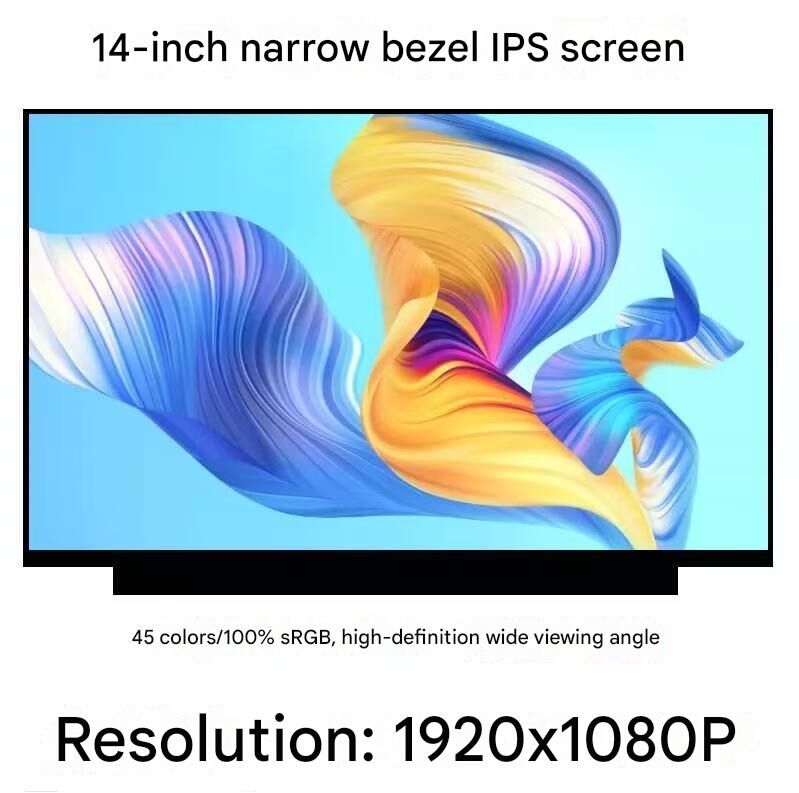

Product Display
HKC MB140CS01-3 14 Inch Full HD 1920x1080 TFT LCD Panel with 2 Lane eDP 1.2 Interface and Anti-Glare Surface 0
Technical Specifications
Specification Details
Display Size 14.0 Inch
Resolution 1920 × 1080
Display Area 309.312(H) × 173.988(V) mm
Outline Size 315.81±0.3(H) × 186.05±0.3(V) × 2.85±0.15 mm
Brightness 300 cd/m² Typ.
Display Colors 16.7M 6bits + Hi FRC
Signal Interface 2 Lane eDP 1.2
Operating Temperature 0 ~ +50 °C
Storage Temperature -20 ~ +60 °C
Application Scenarios
  • Laptop screen replacement projects
  • OEM notebook display assembly
  • Portable computer repair business
  • Industrial terminal display integration
  • Embedded display system projects
  • Bulk supply for LCD spare parts distributors
