HKC MB156CS01-4 15.6 Inch Full HD TFT LCD Panel with 1920×1080 Resolution and 2 Lane eDP 1.2 Interface for Laptop Screen Replacement
  • name
  • name
  • name

HKC MB156CS01-4 15.6 Inch Full HD TFT LCD Panel with 1920×1080 Resolution and 2 Lane eDP 1.2 Interface for Laptop Screen Replacement

MOQ: 100 pcs
Price: $28.99-42.99 Piece
Payment Method: ,T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
HKC
Certification
CE，RoHS
Model Number
MB156CS01-4
Highlight:

HKC 15.6 inch laptop LCD screen

,

Full HD TFT LCD panel

,

1920×1080 laptop screen replacement

Product Description
HKC MB156CS01-4 15.6 Inch FHD TFT LCD Panel 1920x1080 30 Pin 2 Lane eDP Laptop Screen
Product Overview

MB156CS01-4 is a 15.6 inch TFT LCD panel from HKC, featuring Full HD 1920×1080 resolution and 2 lane eDP 1.2 interface. It supports 262K colors with 6 bit color depth, anti-glare 25 percent surface treatment, and built-in LED driving circuit, making it suitable for notebook PC replacement and OEM display projects.

Key Features
15.6 inch Full HD TFT LCD panel with 1920×1080 resolution
2 lane eDP interface for stable and fast signal transmission
262K colors with 6 bit color depth
Typical brightness reaches 250 cd per square meter
Wide viewing angle up to 88 degrees in all directions
Anti-glare 25 percent surface treatment for better viewing comfort
Built-in LED driving circuit for easier integration
Suitable for notebook replacement and OEM assembly projects

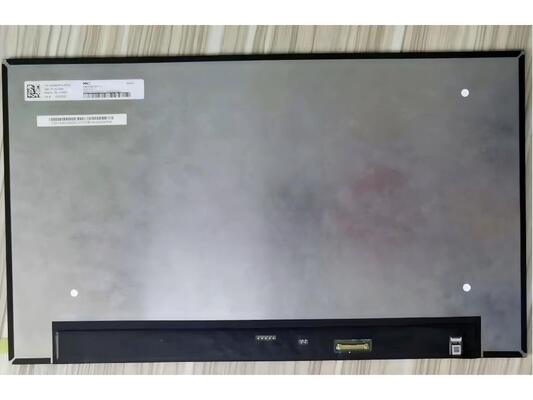

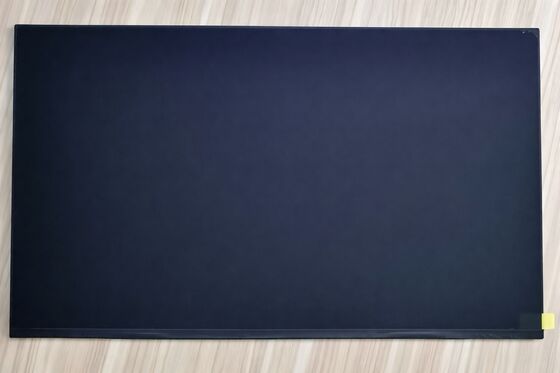

Product Display
HKC MB156CS01-4 15.6 Inch Full HD TFT LCD Panel with 1920×1080 Resolution and 2 Lane eDP 1.2 Interface for Laptop Screen Replacement 0
Technical Specifications
Specification Details
Display Size 15.6 Inch
Resolution 1920 × 1080
Display Area 344.16(H) × 193.59(V) mm
Outline Size 350.66±0.3(H) × 205.24±0.3(V) × 3.2 Max mm
Brightness 250 cd/m² Typ.
Display Colors 262K 6 bit
Signal Interface 2 Lane eDP 1.2
Operating Temperature 0 ~ +50 °C
Storage Temperature -20 ~ +60 °C
Application Scenarios
  • Notebook PC screen replacement
  • OEM notebook display assembly
  • Laptop repair and refurbishment business
  • Spare parts supply for distributors
  • Office and education laptop maintenance
  • Bulk procurement for display replacement market
Company Profile
HKC MB156CS01-4 15.6 Inch Full HD TFT LCD Panel with 1920×1080 Resolution and 2 Lane eDP 1.2 Interface for Laptop Screen Replacement 1 HKC MB156CS01-4 15.6 Inch Full HD TFT LCD Panel with 1920×1080 Resolution and 2 Lane eDP 1.2 Interface for Laptop Screen Replacement 2 HKC MB156CS01-4 15.6 Inch Full HD TFT LCD Panel with 1920×1080 Resolution and 2 Lane eDP 1.2 Interface for Laptop Screen Replacement 3
Company Capabilities

Extensive Inventory: Over 1,000,000 self-owned stock items including Raspberry Pi boards, LCD monitors, touchscreens, cases, cables, and accessories from leading brands.

Competitive Pricing: Significant price advantages to reduce purchasing costs and save valuable time. We wholesale and distribute new, original, well-known brand electronic components worldwide.

Quality Assurance: Equipped with internationally advanced electronic component testing equipment and scientific storage systems to ensure consistent product quality.

Expert Team: Elite professionals with over 20 years of industry experience and deep understanding of international market trends.

Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
