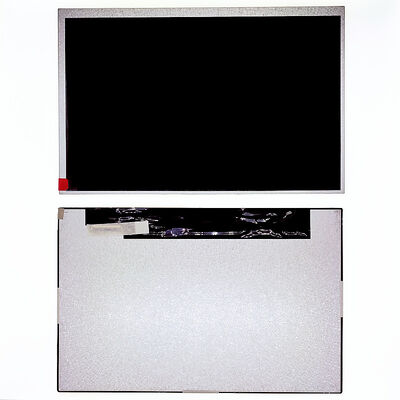

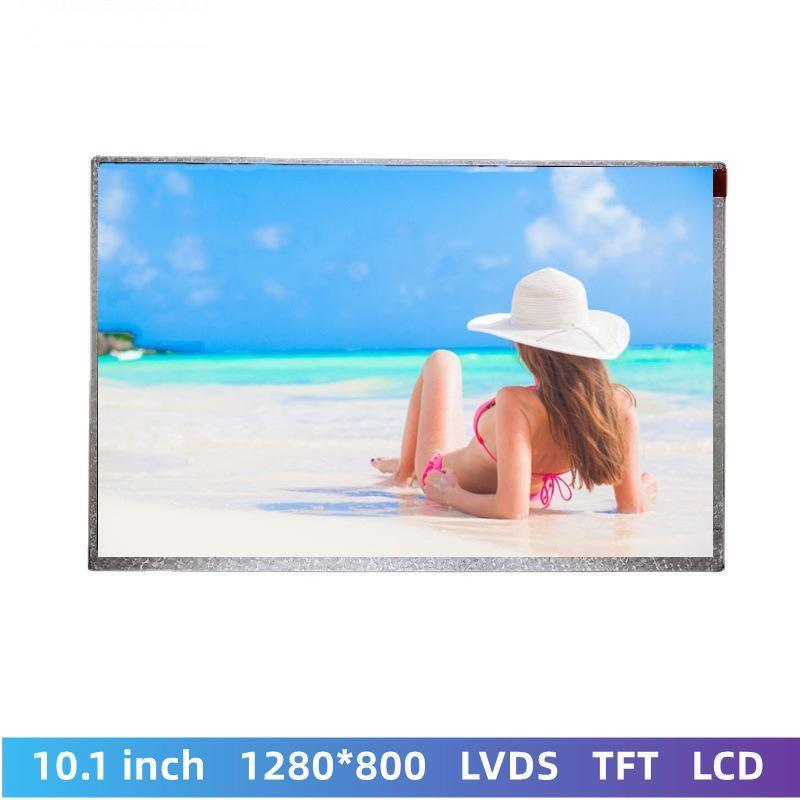

BOE GV101WXM-NN0 10.1 Inch TFT LCD Module with 1280x800 WXGA Resolution 500 cd/m² Luminance and 6S6P LED Backlight
  • name
  • name

BOE GV101WXM-NN0 10.1 Inch TFT LCD Module with 1280x800 WXGA Resolution 500 cd/m² Luminance and 6S6P LED Backlight

MOQ: 100 pcs
Price: $1.99-199.99 Piece
Payment Method: T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE，RoHS
Model Number
YVO1010SNL-L1
Highlight:

10.1 inch TFT LCD module

,

WXGA resolution LCD display

,

500 cd/m² luminance LCD

Product Description
BOE GV101WXM NN0 10.1 Inch TFT LCD Module 1280x800 LVDS 40 Pin 500 Nits Slim Display
Product Overview

This BOE GV101WXM-NN0 10.1 inch TFT LCD display module features 1280x800 WXGA resolution, LVDS 40 pin interface and normally black display mode. It supports 16.7M colors, 500 cd/m² center luminance, 1000:1 typical contrast ratio and 80/80/80/80 typical viewing angle performance. With 6S6P LED backlight structure, slim module thickness and wide operating temperature range, it is suitable for industrial control systems, embedded terminals, smart equipment and compact display applications. Customization is available for brightness, interface, touch panel, FPC structure, cover lens and other specifications based on different project requirements.

Key Features
  • BOE 10.1 inch TFT LCD module with 1280x800 WXGA resolution
  • LVDS 40 pin interface for industrial display controller boards
  • 500 cd/m² center luminance for brighter indoor equipment display
  • Slim 2.62 mm module thickness for compact product structure
  • Normally black display mode with 1000:1 typical contrast ratio
  • 80/80/80/80 typical viewing angle for stable visual performance
  • 6S6P LED backlight structure without built-in LED driver
  • Customization support for brightness, touch panel, FPC and cover lens design
Technical Specifications
Screen Size 10.1 Inch
Resolution 1280 × 800
Module Size 228.3 × 149.05 × 2.62 mm
Active Area 216.96 × 135.6 mm
Brightness 500 cd/m²
Display Interface LVDS / 40 Pin
Viewing Angle 80/80/80/80 Typ.
Operating Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃
BOE GV101WXM-NN0 10.1 Inch TFT LCD Module with 1280x800 WXGA Resolution 500 cd/m² Luminance and 6S6P LED Backlight 0
Application Scenarios
  • Industrial HMI control panels requiring 10.1 inch WXGA LCD modules
  • Embedded display terminals with LVDS controller boards
  • Smart factory equipment screens and monitoring systems
  • Medical and testing equipment display interfaces
  • Self-service terminal displays for indoor applications
  • Custom compact display projects requiring slim LVDS LCD panels
Company Capabilities
BOE GV101WXM-NN0 10.1 Inch TFT LCD Module with 1280x800 WXGA Resolution 500 cd/m² Luminance and 6S6P LED Backlight 1
BOE GV101WXM-NN0 10.1 Inch TFT LCD Module with 1280x800 WXGA Resolution 500 cd/m² Luminance and 6S6P LED Backlight 2
BOE GV101WXM-NN0 10.1 Inch TFT LCD Module with 1280x800 WXGA Resolution 500 cd/m² Luminance and 6S6P LED Backlight 3
  • Extensive Inventory: Over 1,000,000 self-owned stock items including Raspberry Pi boards, LCD monitors, touchscreens, cases, cables, and accessories from leading brands.
  • Competitive Pricing: Significant price advantages to reduce purchasing costs and save valuable time. We wholesale and distribute new, original, well-known brand electronic components worldwide.
  • Quality Assurance: Equipped with internationally advanced electronic component testing equipment and scientific storage systems to ensure consistent product quality.
  • Expert Team: Elite professionals with over 20 years of industry experience and deep understanding of international market trends.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
